SKU: SKU: MITSBP270B

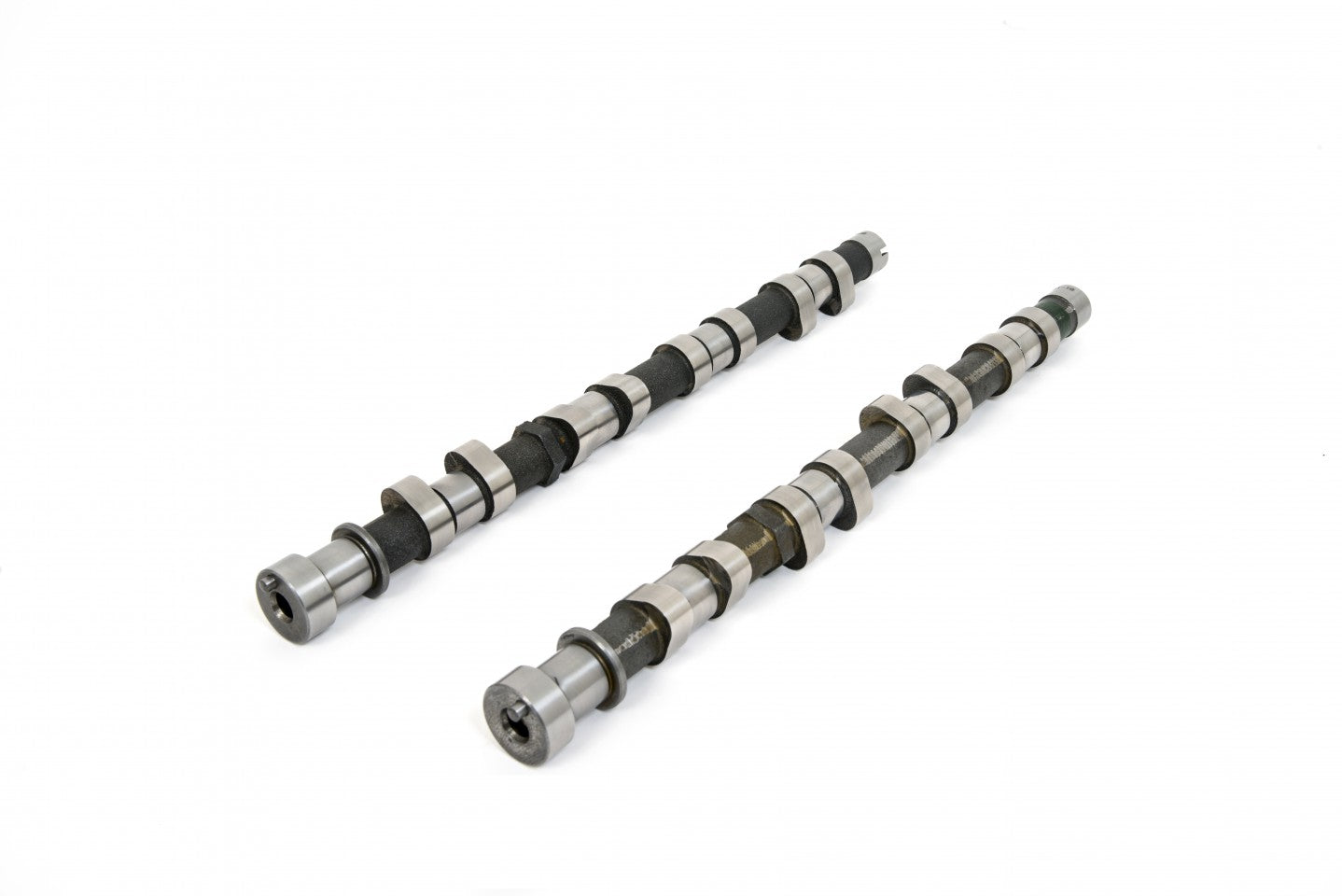

Profile: BP270.
Application: Fast Road.
Unit Type: Blank.
Note: Extra high lift profile. Piper VSSMITS valve springs must be used.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 5 kg |
|---|---|
| Application | Fast Road |
| Duration Inlet | 264° |
| Duration Exhaust | 260° |
| Valve Inlet Lift | .433" 11.00mm |
| Valve Exhaust Lift | .394" 10.00mm |
| Timing Inlet | 24 - 60 |
| Timing Exhaust | 57 - 23 |
| Full Inlet Lift | 108° |
| Full Exhaust Lift | 107° |
| TDC Inlet Lift | .028" 0.71mm |
| TDC Exhaust Lift | .026" 0.66mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
