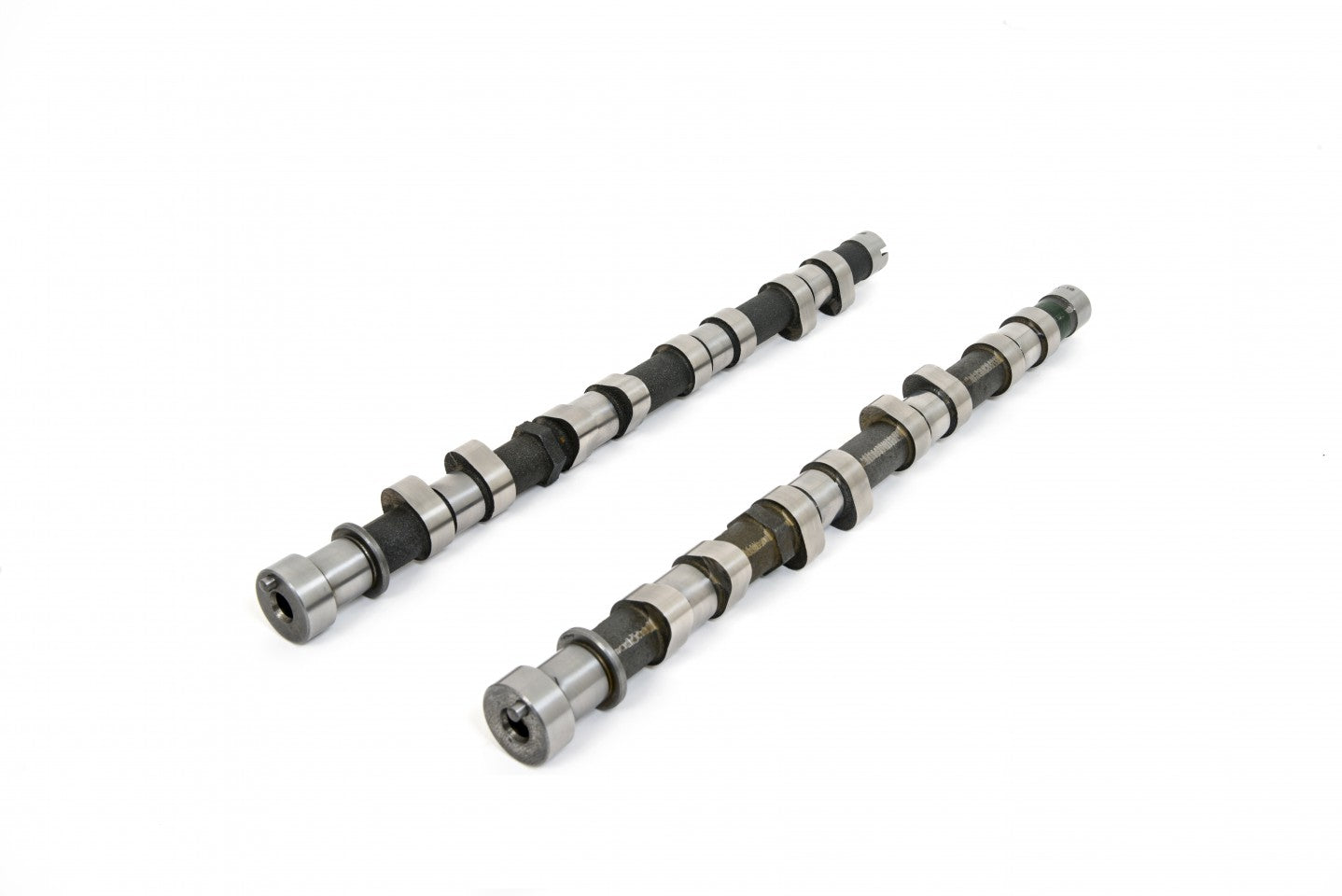

Piper Cams Camshaft - Fast Road (Mitsubishi)

SKU: SKU: MITS1BP270B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP270.

Application: Fast Road.

Unit Type: Blank.

Note:Not suitable for use with standard O.E Springs. Piper VSSMITS springs or VSSMITSK spring kit must be used.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 3 kg
Application Fast Road
Duration Inlet 264°
Duration Exhaust 260°
Valve Inlet Lift .433" 11.00mm
Valve Exhaust Lift .394" 10.00mm
Timing Inlet 24 - 60
Timing Exhaust 57 - 23
Full Inlet Lift 108°
Full Exhaust Lift 107°
TDC Inlet Lift .028" 0.71mm
TDC Exhaust Lift .026" 0.66mm
Valve Inlet Clearance HYDRAULIC
Valve Exhaust Clearance HYDRAULIC

Vehicle Application

  • Mitsubishi EVO 1 / 2 / 3
