SKU: SKU: METBP320B
Profile: BP320.
Application: Race.
Unit Type: Blank.

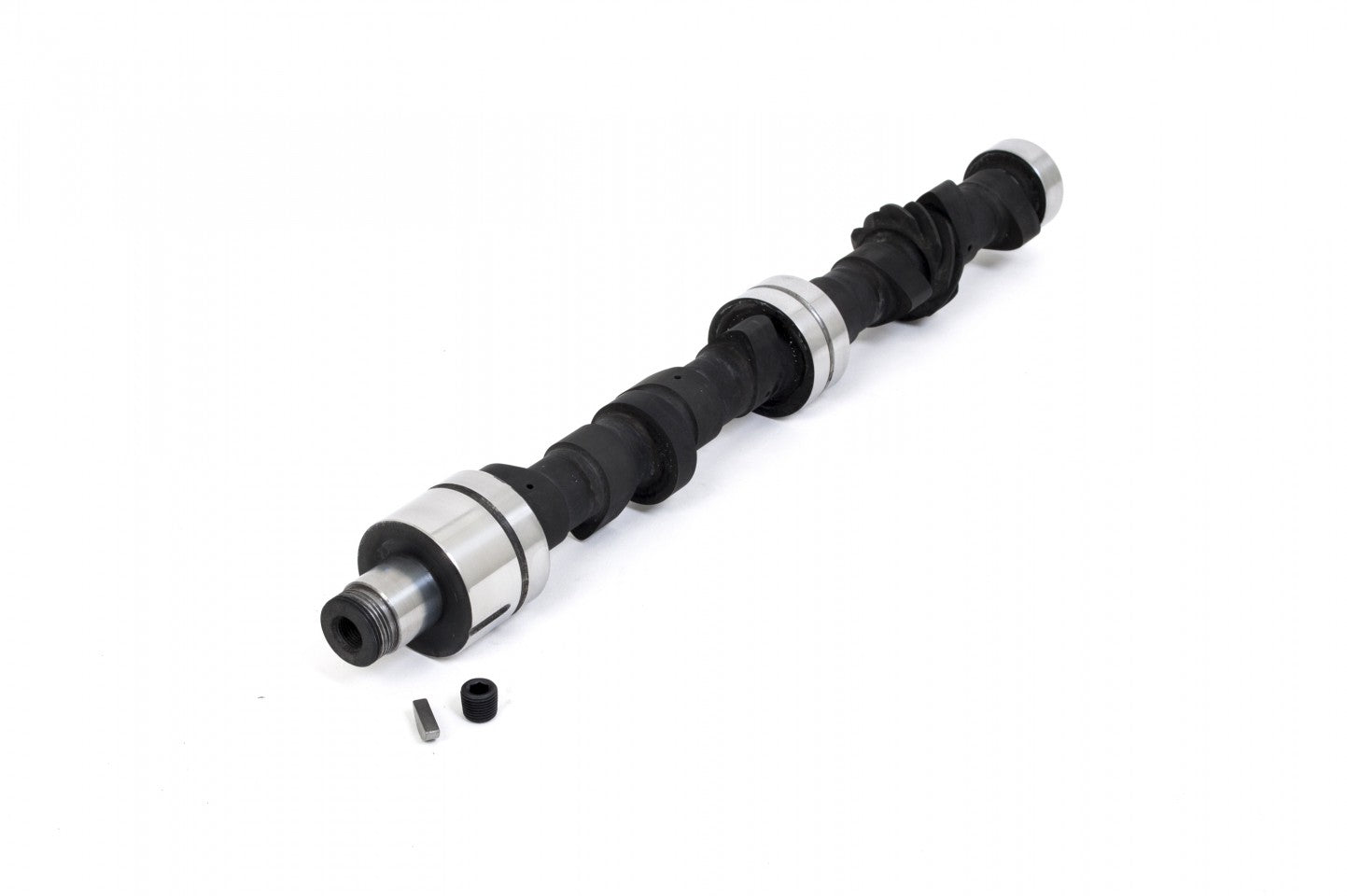

The reputation of this cam is legendary. It gives over 150bhp in 1380cc engines.
Piper 'HR' profiles are available by request. Please Contact Us for details.
Download:-
Right click link and select 'Save link as' to download.
Click link to open in a new tab.
Blank camshafts are only available as A+ Series (Metro slot type oil pump drive) and have drilled lobes for additional lubrication.
Please check the end float of the camshaft when using non O.E replacement oil pump, as additional machining may be required to the pump.
| Weight | 2 kg |
|---|---|
| Application | Race |
| Power Band | 4000-8500 |
| Duration Inlet | 320° |
| Duration Exhaust | 320° |
| Valve Inlet Lift | .420" 10.67mm |
| Valve Exhaust Lift | .420" 10.67mm |
| Timing Inlet | 57 - 83 |
| Timing Exhaust | 83 - 57 |
| Full Inlet Lift | 103° |
| Full Exhaust Lift | 103° |
| TDC Inlet Lift | .159" 4.04mm |
| TDC Exhaust Lift | .159" 4.04mm |
| Valve Inlet Clearance | .012" .30mm |
| Valve Exhaust Clearance | .012" .30mm |
