SKU: SKU: MET649B

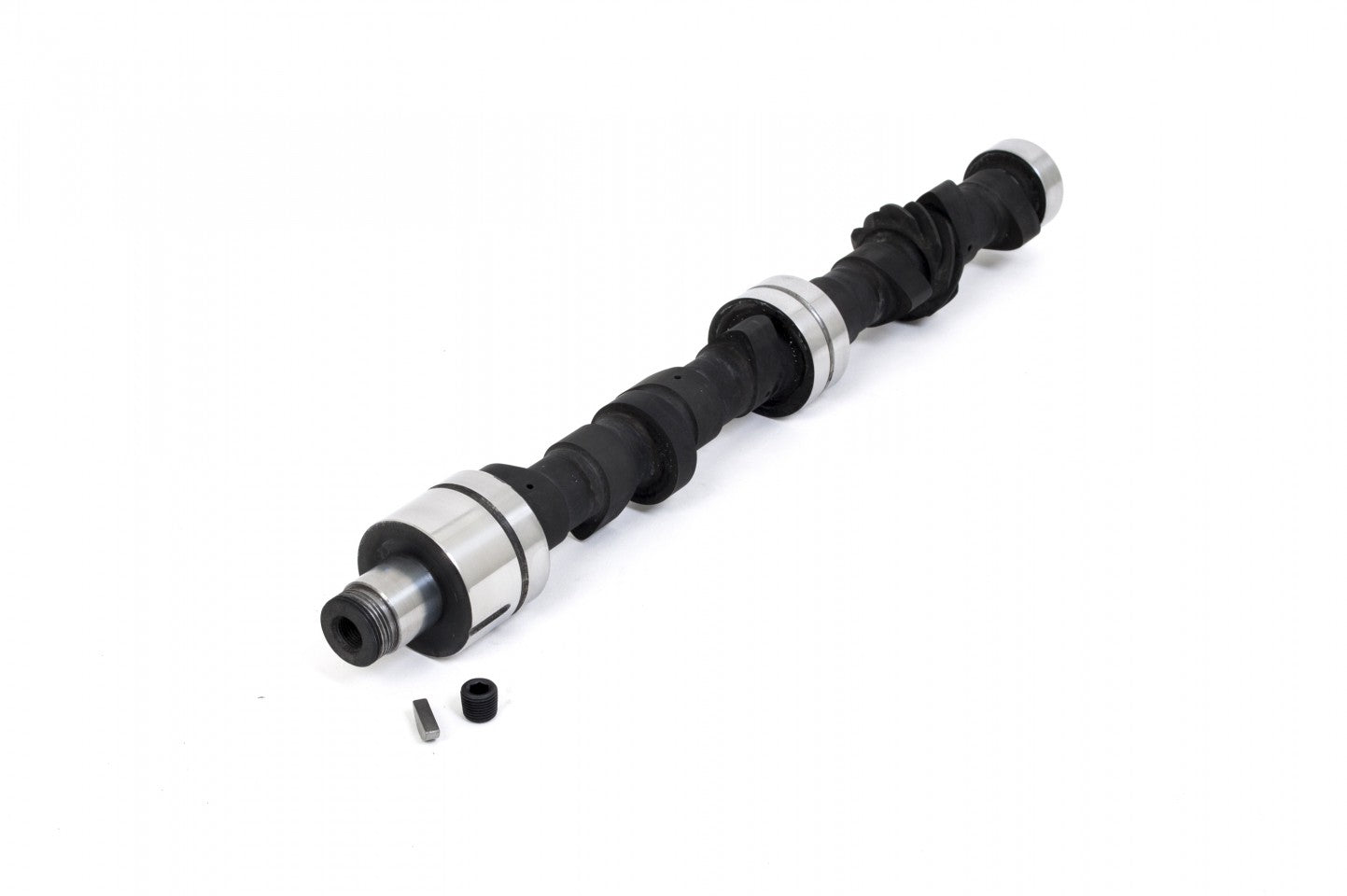

The original 649. New cam from a blank
New billet camshafts are only available in Metro slot type oil pump drive and have drilled lobes for additional lubrication.
Please check the end float of the camshaft when using non O.E replacement oil pump, as additional machining may be required to the pump.
| Weight | 2 kg |
|---|---|
| Application | Race |
| Power Band | 3000-7500 |
| Duration Inlet | 300° |
| Duration Exhaust | 300° |
| Valve Inlet Lift | .400" 10.16mm |
| Valve Exhaust Lift | .402" 10.21mm |
| Timing Inlet | 48 - 73 |
| Timing Exhaust | 73 - 48 |
| Full Inlet Lift | 102.5° |
| Full Exhaust Lift | 102.5° |
| TDC Inlet Lift | .129" 3.27mm |
| TDC Exhaust Lift | .127" 3.22mm |
| Valve Inlet Clearance | .014" .37mm |
| Valve Exhaust Clearance | .016" .42mm |
