SKU: SKU: MET2046B
Profile: 2046.
Application: Spedewoth Ministock.
Unit Type: Blank.
For use with 17mm restrictor.

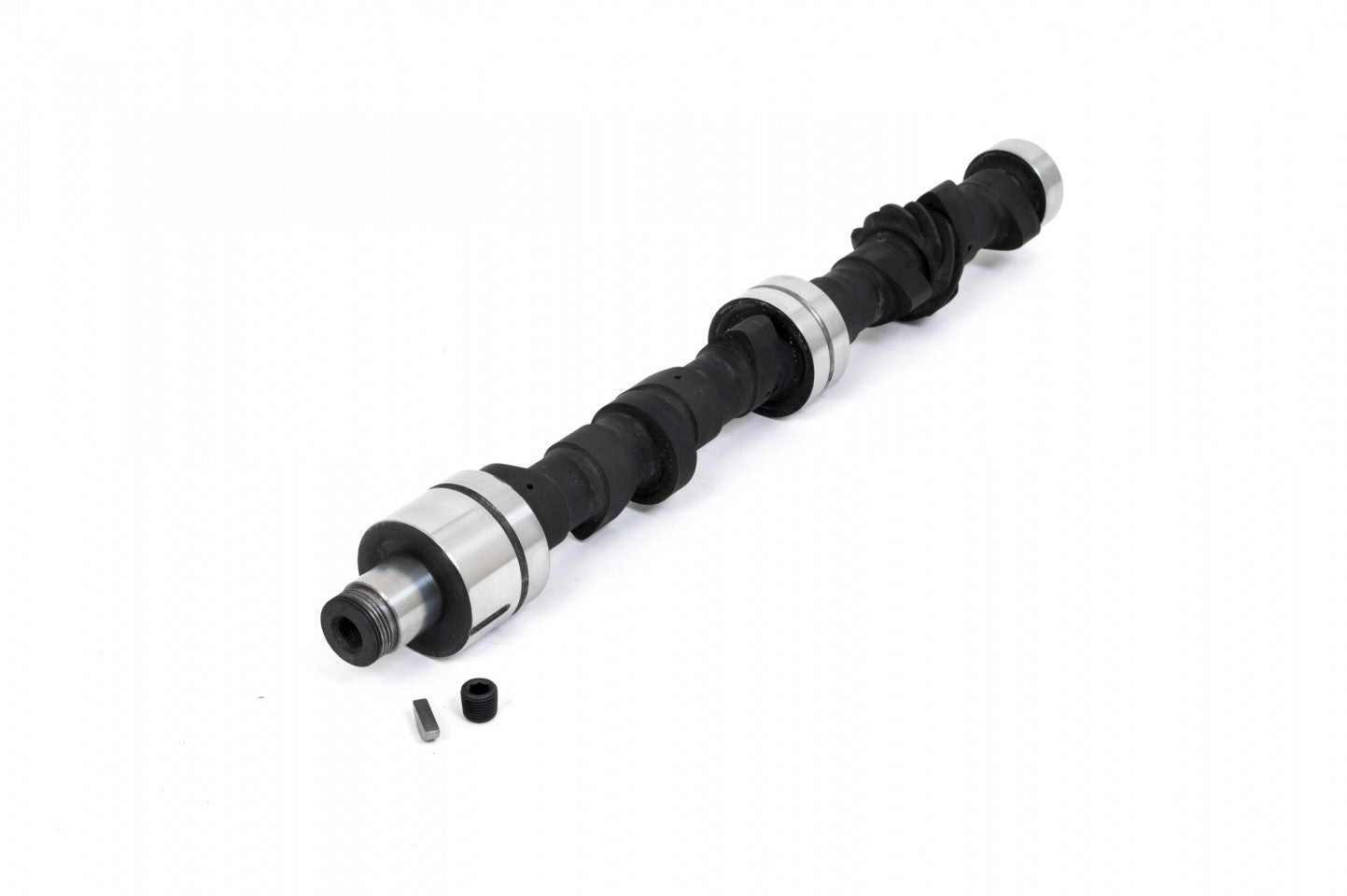

Blank camshafts are only available as A+ Series (Metro slot type oil pump drive) and have drilled lobes for additional lubrication.
Download:-
Right click link and select 'Save link as' to download.
Click link to open in a new tab.
Please check the end float of the camshaft when using non O.E replacement oil pump, as additional machining may be required to the pump.
| Weight | 2 kg |
|---|---|
| Application | Race |
| Power Band | 3000-7000 |
| Duration Inlet | 256° |
| Duration Exhaust | 256° |
| Valve Inlet Lift | .366" 9.30mm |
| Valve Exhaust Lift | .364" 9.25mm |
| Timing Inlet | 24 - 52 |
| Timing Exhaust | 52 - 24 |
| Full Inlet Lift | 104° |
| Full Exhaust Lift | 104° |
| TDC Inlet Lift | .066" 1.68mm |
| TDC Exhaust Lift | .064" 1.63mm |
| Valve Inlet Clearance | .012" .30mm |
| Valve Exhaust Clearance | .014" .35mm |
