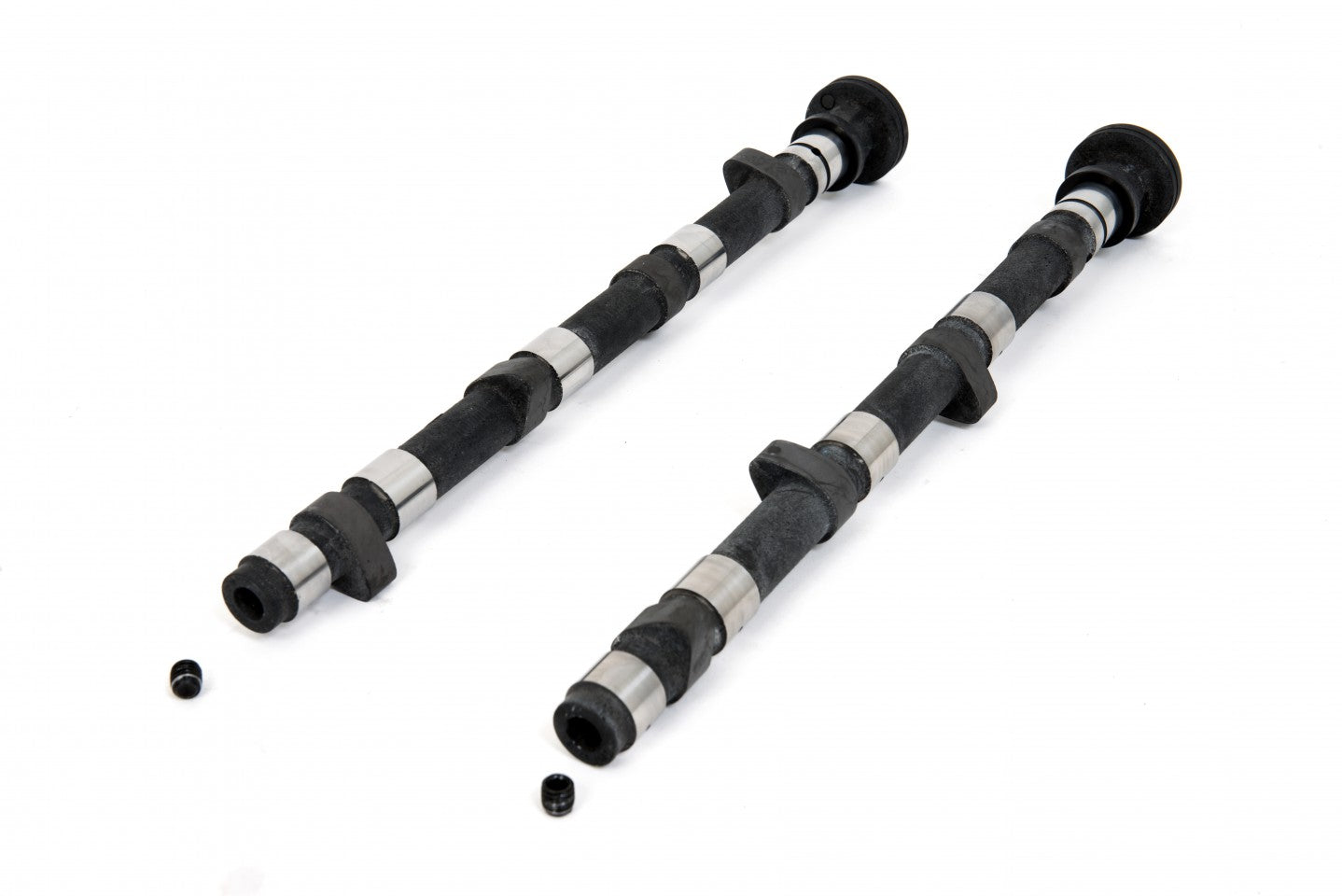

Piper Cams Camshaft - Race (Lotus)

SKU: SKU: LOTBP320B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP320.

Application: Rally.

Unit Type: Blank.

Note: Available with or without oil groove in the front journal.

Note: To use non groove type, additional machining to the camshaft caps is required.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 4 kg
Application Race
Power Band 3000-8000
Duration Inlet 324°
Duration Exhaust 324°
Valve Inlet Lift .451" 11.44mm
Valve Exhaust Lift .449" 11.39mm
Timing Inlet 60 - 84
Timing Exhaust 84 - 60
Full Inlet Lift 102°
Full Exhaust Lift 102°
TDC Inlet Lift .201" 5.12mm
TDC Exhaust Lift .199" 5.06mm
Valve Inlet Clearance .008" .20mm
Valve Exhaust Clearance .010" .25mm

Vehicle Application

  • Lotus 8v TWIN CAM
