SKU: SKU: IMPBP285R
Profile: BP285
Application: Ultimate Road.

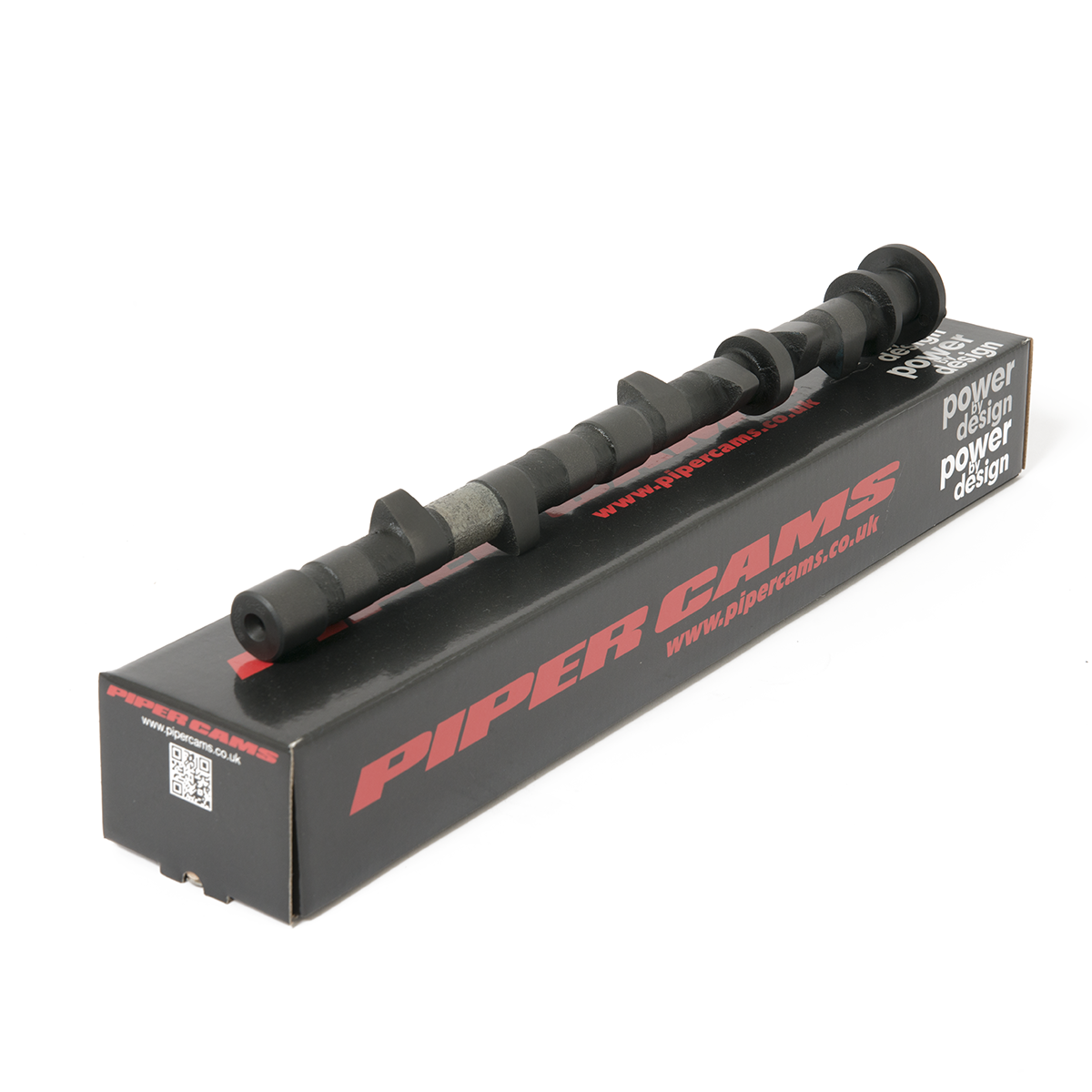

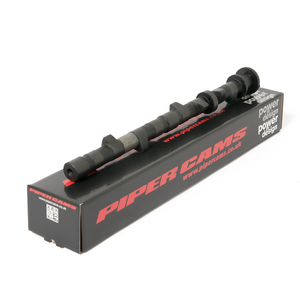

Unit Type: Re-Profiled Camshaft.
Note: Figures are given for a reprofile of a 'Low Lift' standard camshaft.
Note:This is a re-profile camshaft only. You will need to complete our Send Parts form and send us your existing camshaft. For more information, please take a look at our Reprofiling page.
| Weight | 3 kg |
|---|---|
| Application | Ultimate Road (Low Lift) |
| Duration Inlet | 256° |
| Duration Exhaust | 256° |
| Valve Inlet Lift | .268" 6.80mm |
| Valve Exhaust Lift | .268" 6.75mm |
| Timing Inlet | 20 - 56 |
| Timing Exhaust | 56 - 20 |
| Full Inlet Lift | 108° |
| Full Exhaust Lift | 108° |
| TDC Inlet Lift | .041" 1.05mm |
| TDC Exhaust Lift | .039" 1.00mm |
| Valve Inlet Clearance | .008" .203mm |
| Valve Exhaust Clearance | .010" .254mm |
