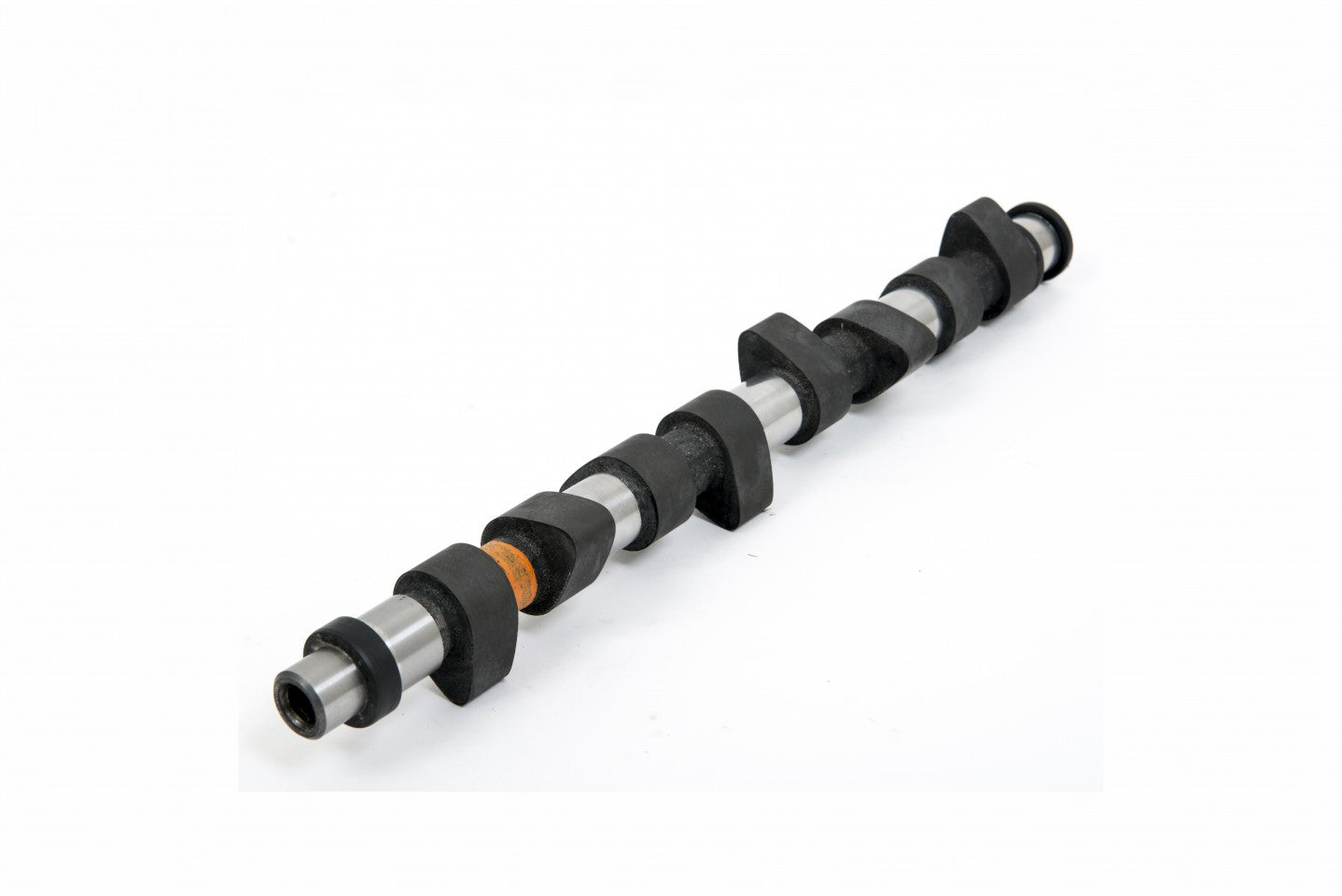

Piper Cams Camshaft - Race (V.A.G.)

SKU: SKU: GTIBP320MB

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP320M.

Application: Race.

Unit Type: Blank.

Designed to be used in engines utilising Mechanical followers.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 3 kg
Application Race
Power Band 3500-8000
Duration Inlet 316°
Duration Exhaust 316°
Valve Inlet Lift .435" 11.05mm
Valve Exhaust Lift .435" 11.05mm
Timing Inlet 54 - 82
Timing Exhaust 82 - 54
Full Inlet Lift 104°
TDC Inlet Lift .171" 4.34mm
TDC Exhaust Lift .169" 4.29mm
Valve Inlet Clearance .008" .20mm
Valve Exhaust Clearance .010" .25mm

Vehicle Application

  • VAG GOLF / Scirocco GTI MK1 1.6 / 1.8 Mechanical
