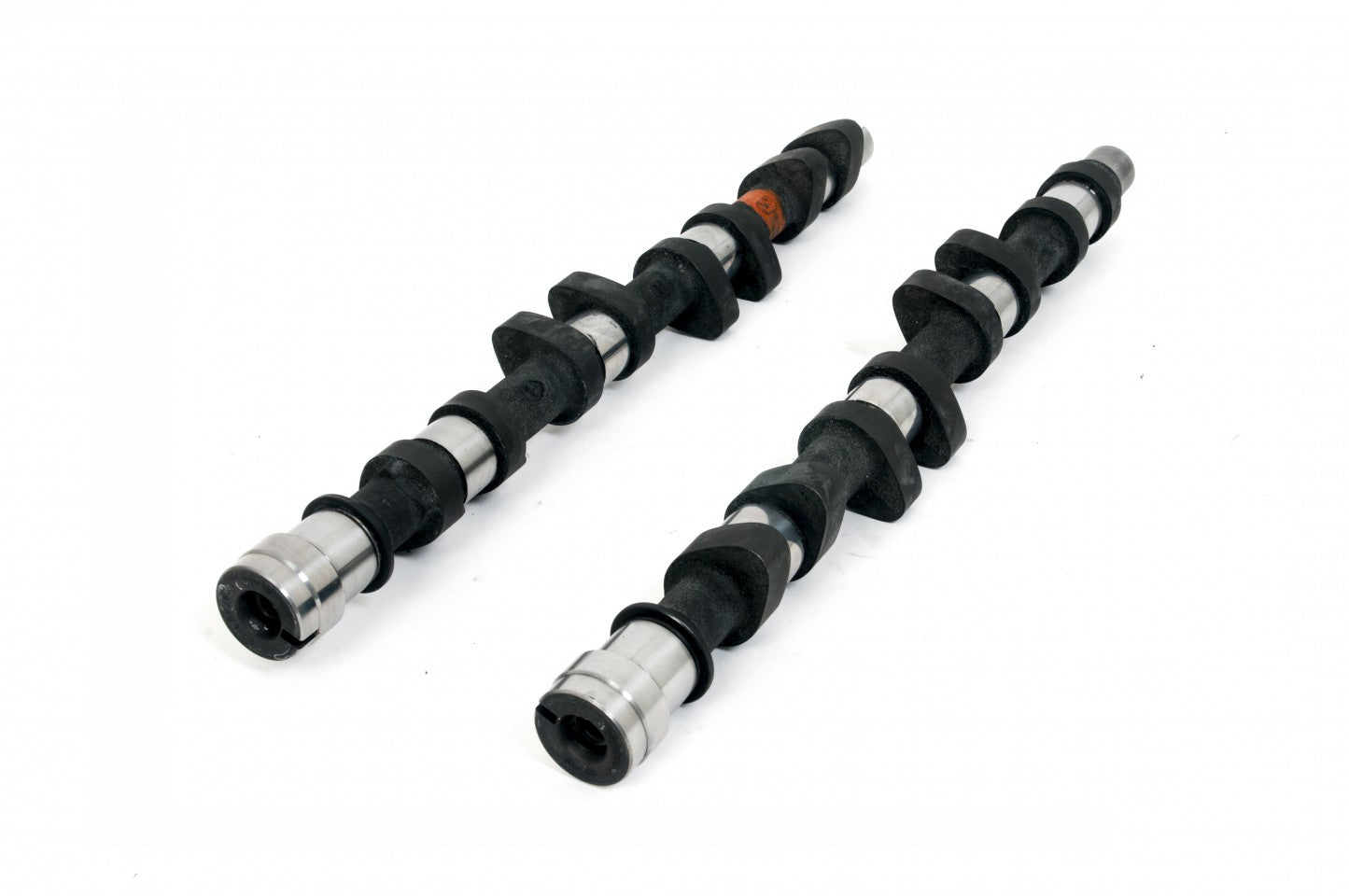

SKU: SKU: GTI6BP300B
Profile: BP300
Application: Rally.
Unit Type: Blank.
Designed for use in engines utilising Mechanical followers.
Note:Not suitable for use with standard O.E springs. Piper VDSP306 spring kit must be used. Fully mappable ECU recommended.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 5 kg |
|---|---|
| Application | Rally |
| Power Band | 3000-8000 |
| Duration Inlet | 290° |
| Duration Exhaust | 290° |
| Valve Inlet Lift | .455" 11.57mm |
| Valve Exhaust Lift | .455" 11.57mm |
| Timing Inlet | 39 - 71 |
| Timing Exhaust | 71 - 39 |
| Full Inlet Lift | 106° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .140" 3.56mm |
| TDC Exhaust Lift | .138" 3.51mm |
| Valve Inlet Clearance | .010" .25mm |
| Valve Exhaust Clearance | .010" .25mm |
