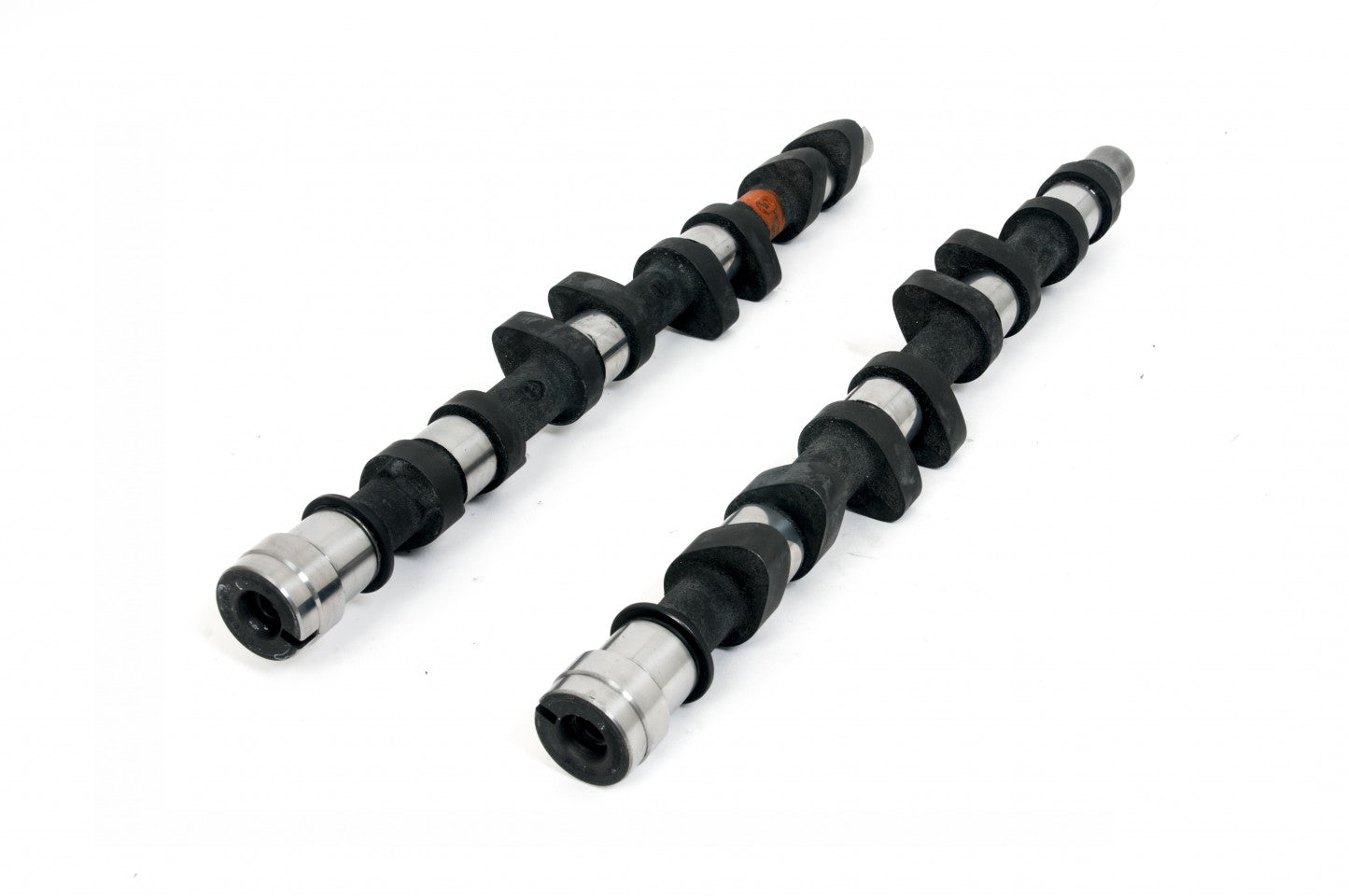

SKU: SKU: GTI6BP285HB
Profile: BP285H
Application: Ultimate Road.
Unit Type: Blank.
Designed for use in engines utilising hydraulic followers.
Note:Not suitable for use with standard O.E springs. Piper VDSP306 spring kit must be used. Fully mappable ECU recommended.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 5 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2000-7500 |
| Duration Inlet | 264° |
| Duration Exhaust | 264° |
| Valve Inlet Lift | .428" 10.87mm |
| Valve Exhaust Lift | .428" 10.87mm |
| Timing Inlet | 24 - 60 |
| Timing Exhaust | 62 - 22 |
| Full Inlet Lift | 108° |
| Full Exhaust Lift | 110° |
| TDC Inlet Lift | .072" 1.82mm |
| TDC Exhaust Lift | .063" 1.60mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
