SKU: SKU: FOCSTBP285R
Profile: BP285.
Application: Ultimate Road.

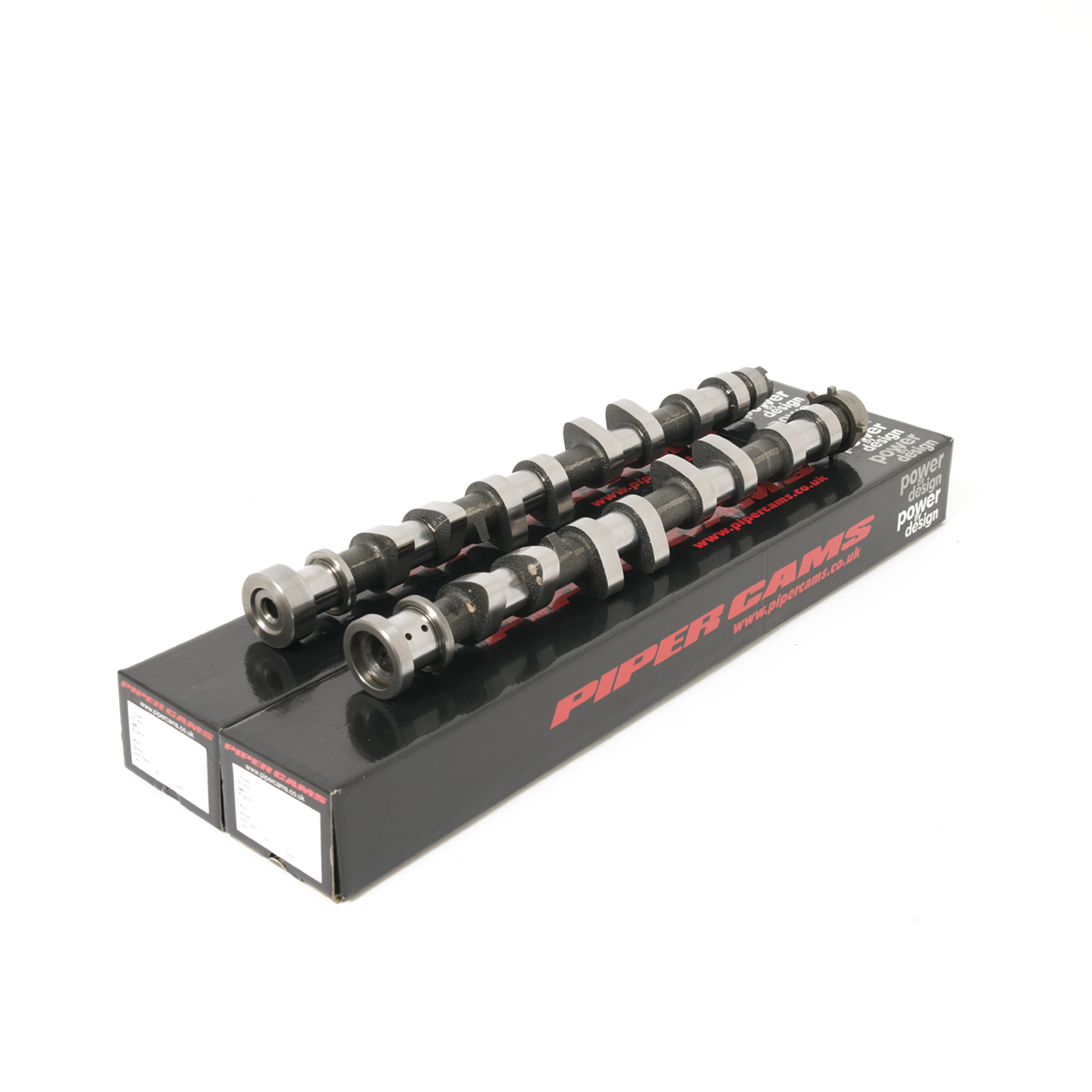

Unit Type: Re-Profiled Camshafts.
Note: Not to be used with the VVT system activated. Must use PULDST170 VVT Delete Kit.
Note:These are re-profile camshafts only. You will need to complete our Send Parts form and send us your existing camshafts. For more information, please take a look at our Reprofiling page.
| Weight | 5 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2500-7500 |
| Duration Inlet | 280° |
| Duration Exhaust | 264° |
| Valve Inlet Lift | .425" 10.80mm |
| Valve Exhaust Lift | .380" 9.66mm |
| Timing Inlet | 34 - 66 |
| Timing Exhaust | 58 - 26 |
| Full Inlet Lift | 106° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .101" 2.57mm |
| TDC Exhaust Lift | .069" 1.75mm |
| Valve Inlet Clearance | .010" .25mm |
| Valve Exhaust Clearance | .012" .30mm |
