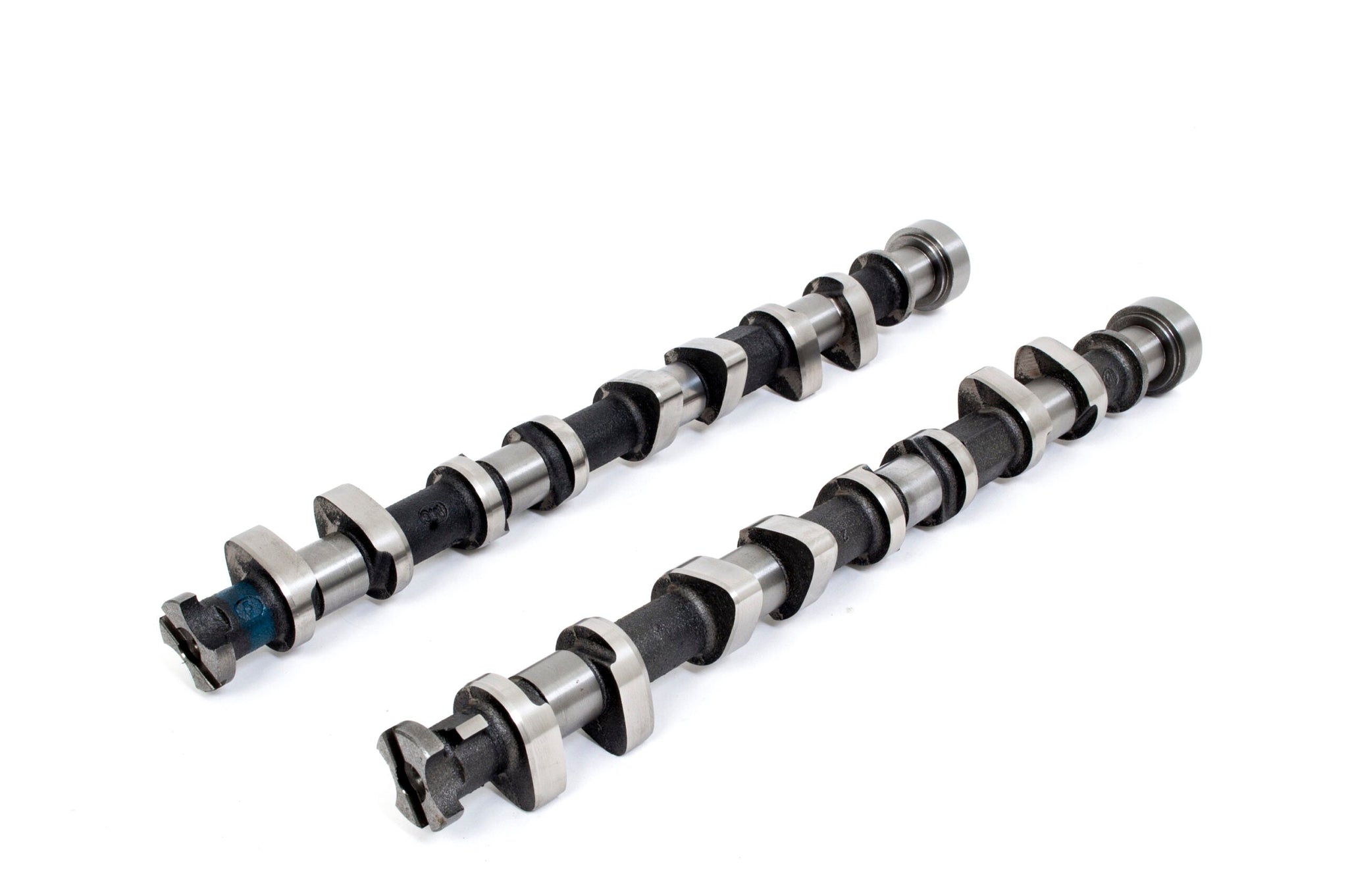

SKU: SKU: FOC20BP300B
Profile: BP300.
Application: Rally.
Unit Type: Blank.
Note:Piper Followers & Shims must be used for this profile - FOLST170M & SHIM84.
Note:Uprated Valve springs are recommended - VDSZETARK.
Note:Vernier Pulleys are recommended - PULDZETA.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 5 kg |
|---|---|
| Application | Rally |
| Power Band | 2000-8000 |
| Duration Inlet | 280° |
| Duration Exhaust | 280° |
| Valve Inlet Lift | .423" 10.74mm |
| Valve Exhaust Lift | .421" 10.69mm |
| Timing Inlet | 36 - 64 |
| Timing Exhaust | 66 - 34 |
| Full Inlet Lift | 104° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .121" 3.08mm |
| TDC Exhaust Lift | .110" 2.80mm |
| Valve Inlet Clearance | .010" .25mm |
| Valve Exhaust Clearance | .012" .30mm |
