SKU: SKU: FIATCBP300B
Profile: BP300.
Application: Rally.
Unit Type: Blank.

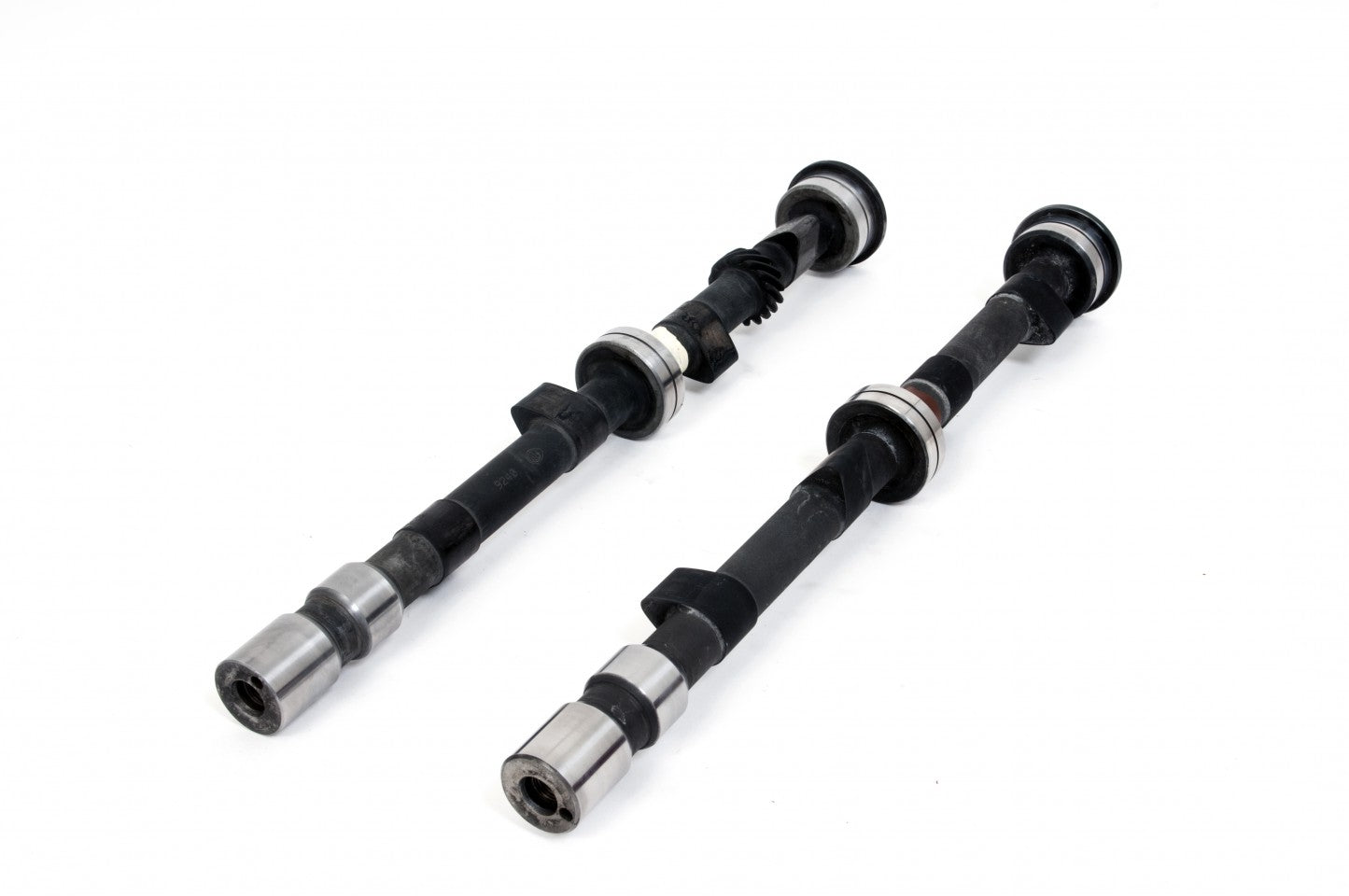

Exhaust camshaft available with or without distributor gear. Please specify your requirements in the order notes at checkout.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 5 kg |
|---|---|
| Application | Rally |
| Power Band | 3000-7500 |
| Duration Inlet | 290° |
| Duration Exhaust | 290° |
| Valve Inlet Lift | .440" 11.18mm |
| Valve Exhaust Lift | .440" 11.18mm |
| Timing Inlet | 39 - 71 |
| Timing Exhaust | 71 - 39 |
| Full Inlet Lift | 106° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .156" 3.96mm |
| TDC Exhaust Lift | .154" 3.91mm |
| Valve Inlet Clearance | .010" .254mm |
| Valve Exhaust Clearance | .012" .305mm |
| Does the exhaust camshaft need the distributor gear? | YES, NO |
