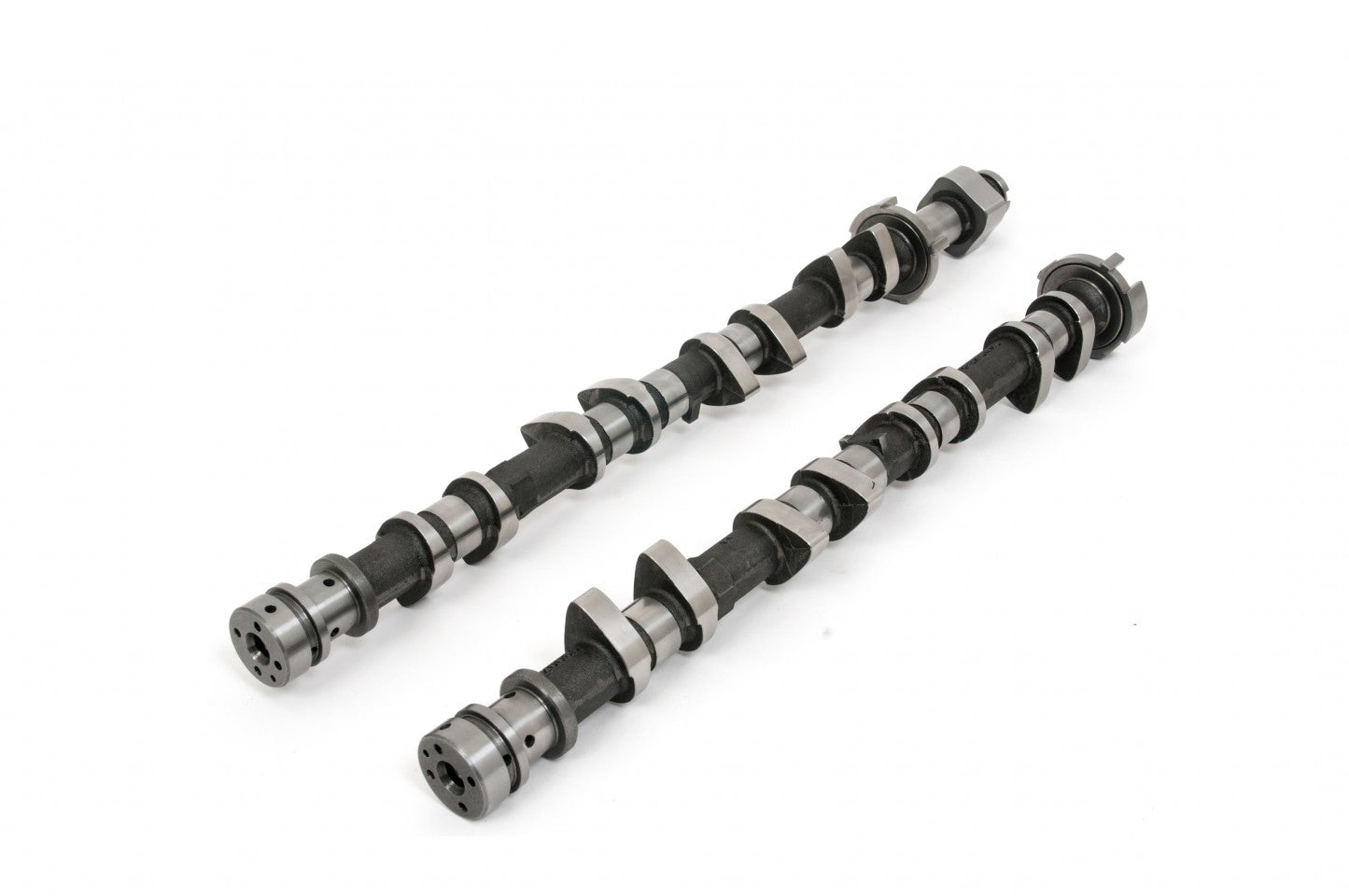

SKU: SKU: FECO23BP285B
Profile: BP285.
Application: Ultimate Road.
Unit Type: Blank.
Note:Not suitable for use with standard O.E. springs. Piper VSSFECO23K Spring kit must be used.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 3 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2000-7500 |
| Duration Inlet | 264° |
| Duration Exhaust | 256° |
| Valve Inlet Lift | .427" 10.85mm |
| Valve Exhaust Lift | .382" 9.70mm |
| Timing Inlet | Mar-81 |
| Timing Exhaust | 52 - 24 |
| Full Inlet Lift | 129° |
| Full Exhaust Lift | 104° |
| TDC Inlet Lift | .006" 0.14mm |
| TDC Exhaust Lift | .052" 1.33mm |
| Valve Inlet Clearance | .010" .25mm |
| Valve Exhaust Clearance | .012" .30mm |
