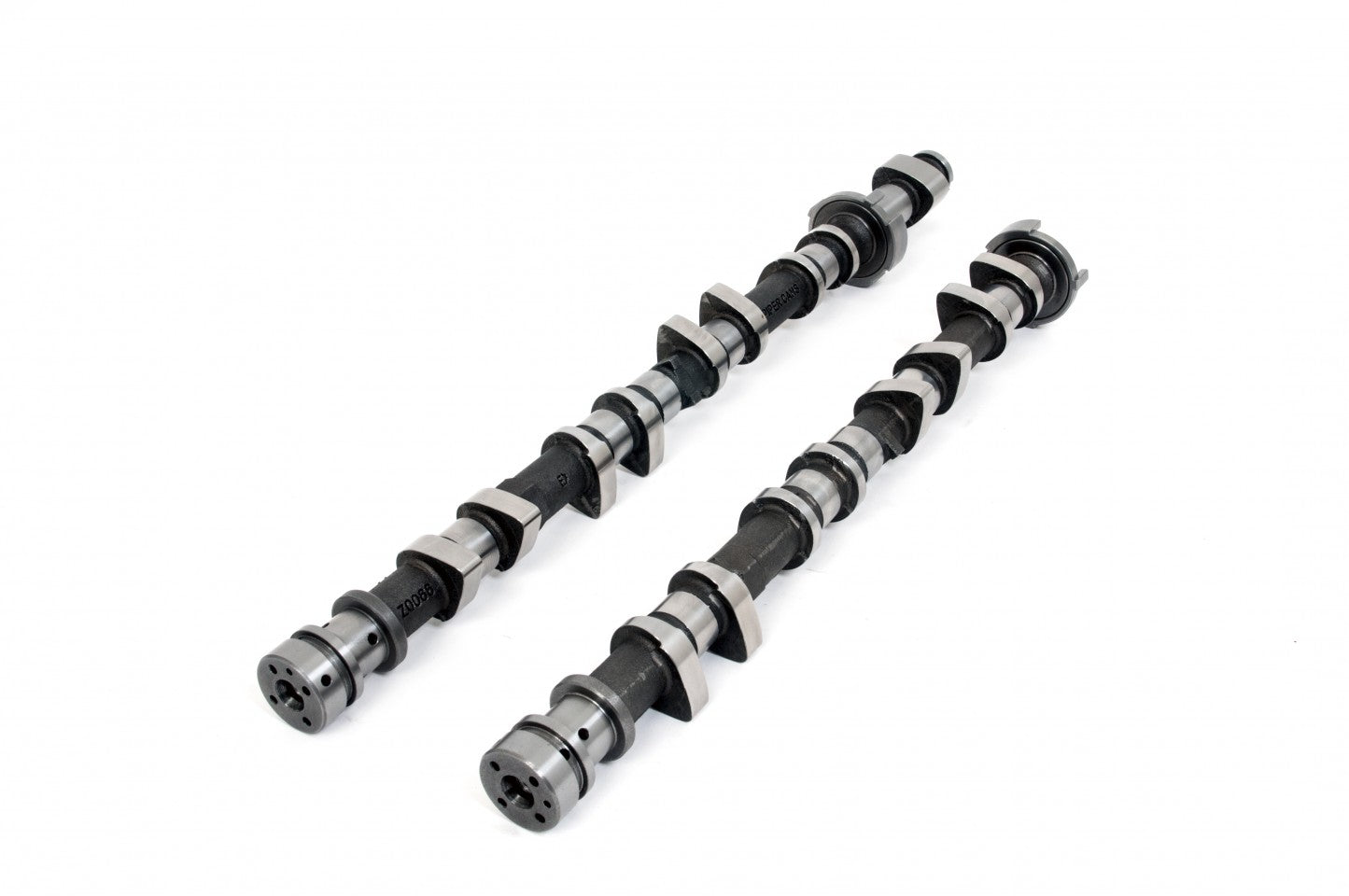

Piper Cams Camshaft - Fast Road (Ford)

SKU: SKU: FECO20BP270B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP270.

Application: Fast Road.

Unit Type: Blank.

Note:Not suitable for used with standard O.E. springs. Piper VSSFECO20K Spring kit must be used.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 5 kg
Application Fast Road
Power Band 2000-7000
Duration Inlet 256°
Duration Exhaust 244°
Valve Inlet Lift .378" 9.60mm
Valve Exhaust Lift .336" 8.53mm
Timing Inlet '-1 - 77
Timing Exhaust 46 - 18
Full Inlet Lift 129°
Full Exhaust Lift 104°
TDC Inlet Lift .004" 0.10mm
TDC Exhaust Lift .035" 0.89mm
Valve Inlet Clearance .010" .25mm
Valve Exhaust Clearance .014" .356mm

Vehicle Application

  • FORD Ecoboost 2.0 -MK3 Focus ST250
