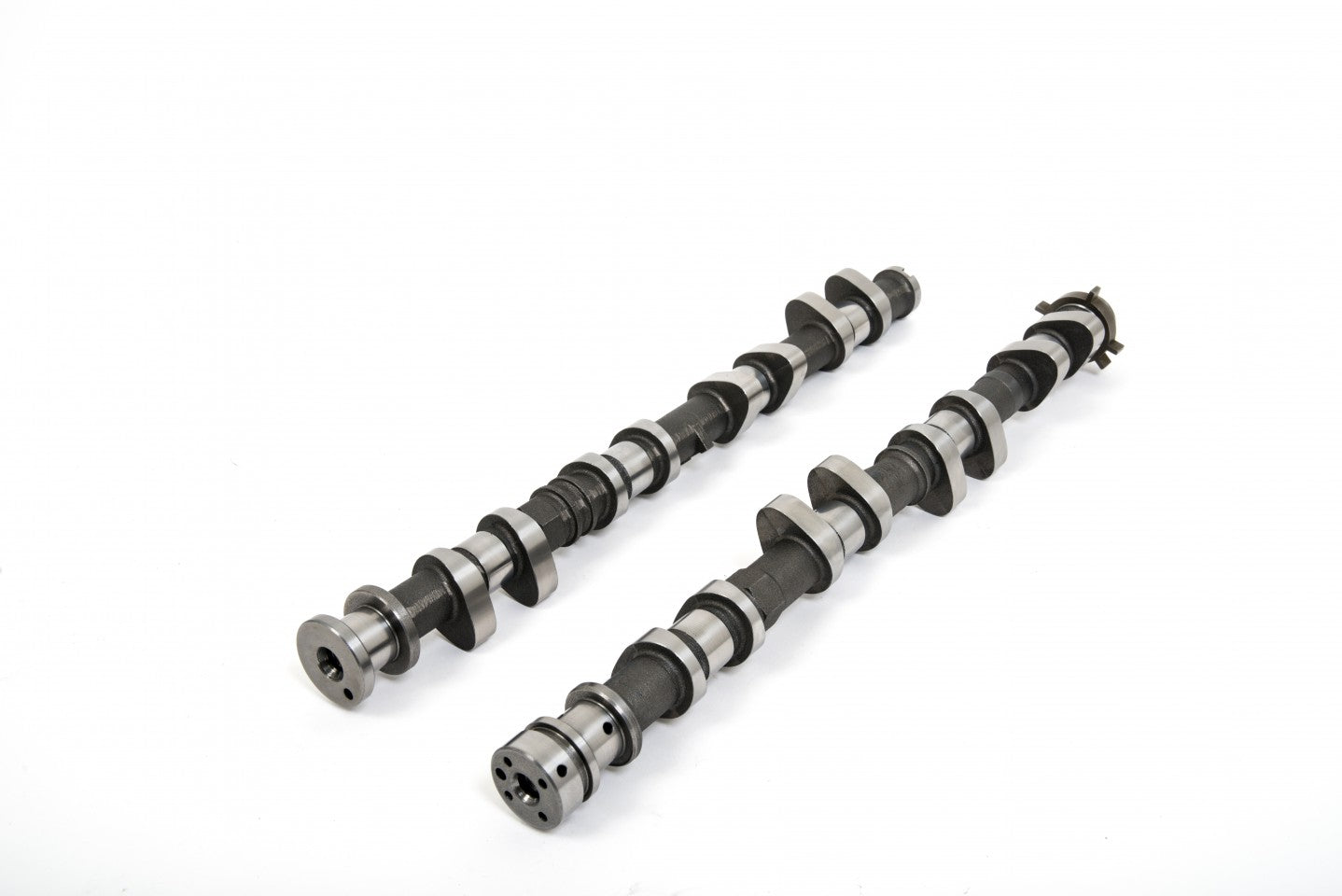

Piper Cams Camshaft Set - Ultimate Road (Ford)

SKU: SKU: DURVVTBP285B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

For Ford Duratec 2.5 with VVT Inlet and non VVT exhaust ONLY. Piper VDSDUR double valve springs and SC20 spring caps MUST be used.

Specifications

Weight 5 kg
Application Ultimate Road
Duration Inlet 296
Duration Exhaust 288
Valve Inlet Lift 0.460 11.68MM
Valve Exhaust Lift 0.420 10.67MM
Timing Inlet 23(OPEN) BTDC 93(CLOSE) ABDC
Timing Exhaust 72(OPEN) BBDC 37(CLOSE) ATDC
Full Inlet Lift 125
Full Exhaust Lift 107.5
TDC Inlet Lift 0.049 1.25MM
TDC Exhaust Lift 0.096 2.44MM
Valve Inlet Clearance 0.010 0.254MM
Valve Exhaust Clearance 0.012 0.305MM

Vehicle Application

  • FORD Duratec 2.5 16v VVT
