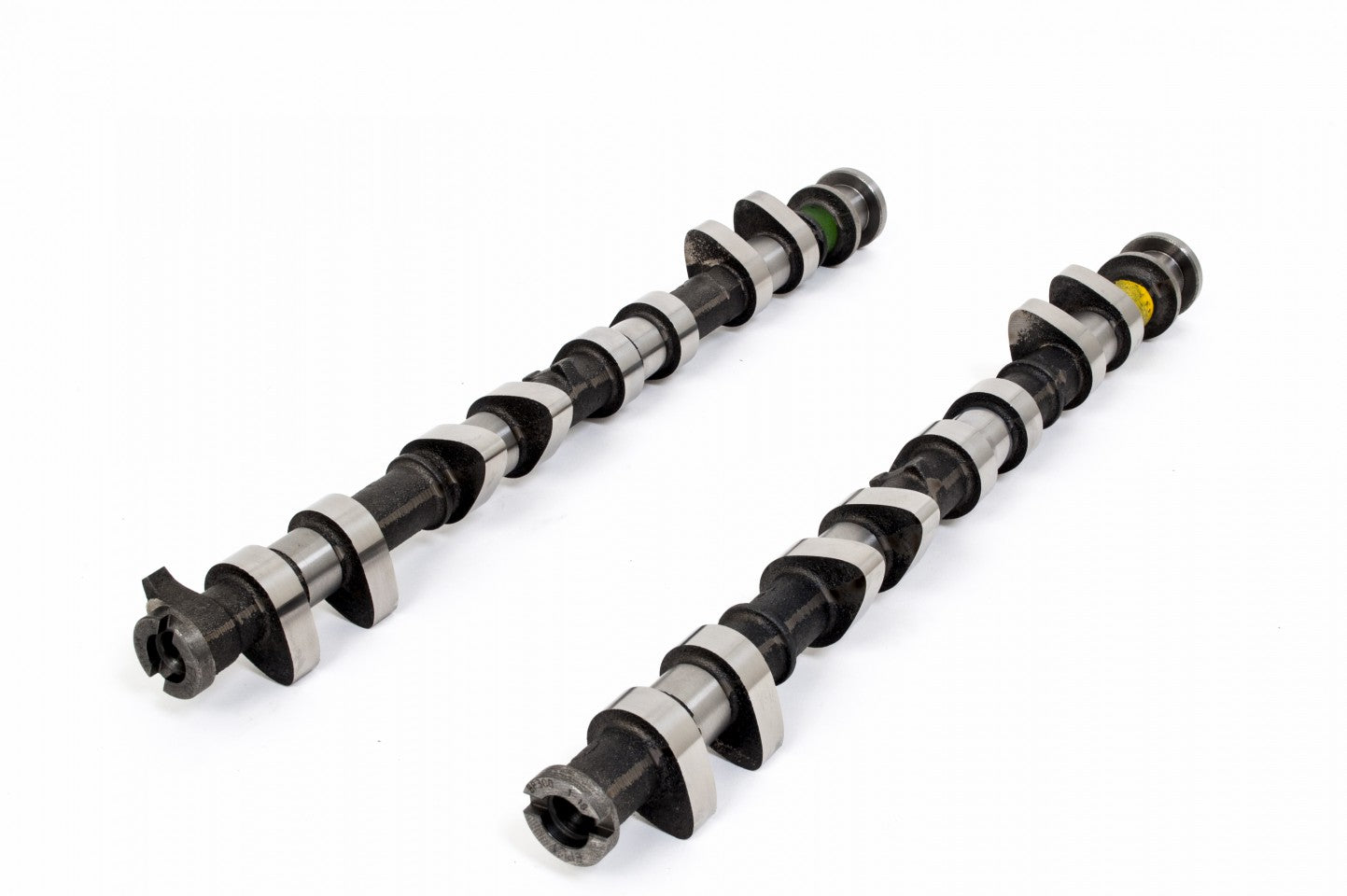

SKU: SKU: DURBP300B
Profile: BP300.
Application: Rally.
Unit Type: Blank.
Note:For use with throttle bodies.
Note:Piper VSSDUR springs must be used with this camshaft profile.
Note:Piper PULSDUR vernier pulleys must be used with this camshaft profile
Note: Additional machining to the pistons required with this profile.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 5 kg |
|---|---|
| Application | Rally |
| Power Band | 3000-8000 |
| Duration Inlet | 296° |
| Duration Exhaust | 288° |
| Valve Inlet Lift | .490" 12.45mm |
| Valve Exhaust Lift | .458" 11.64mm |
| Timing Inlet | 46 - 70 |
| Timing Exhaust | 68 - 40 |
| Full Inlet Lift | 102° |
| Full Exhaust Lift | 104° |
| TDC Inlet Lift | .165" 4.19mm |
| TDC Exhaust Lift | .130" 3.30mm |
| Valve Inlet Clearance | .010" .25mm |
| Valve Exhaust Clearance | .012" .30mm |
