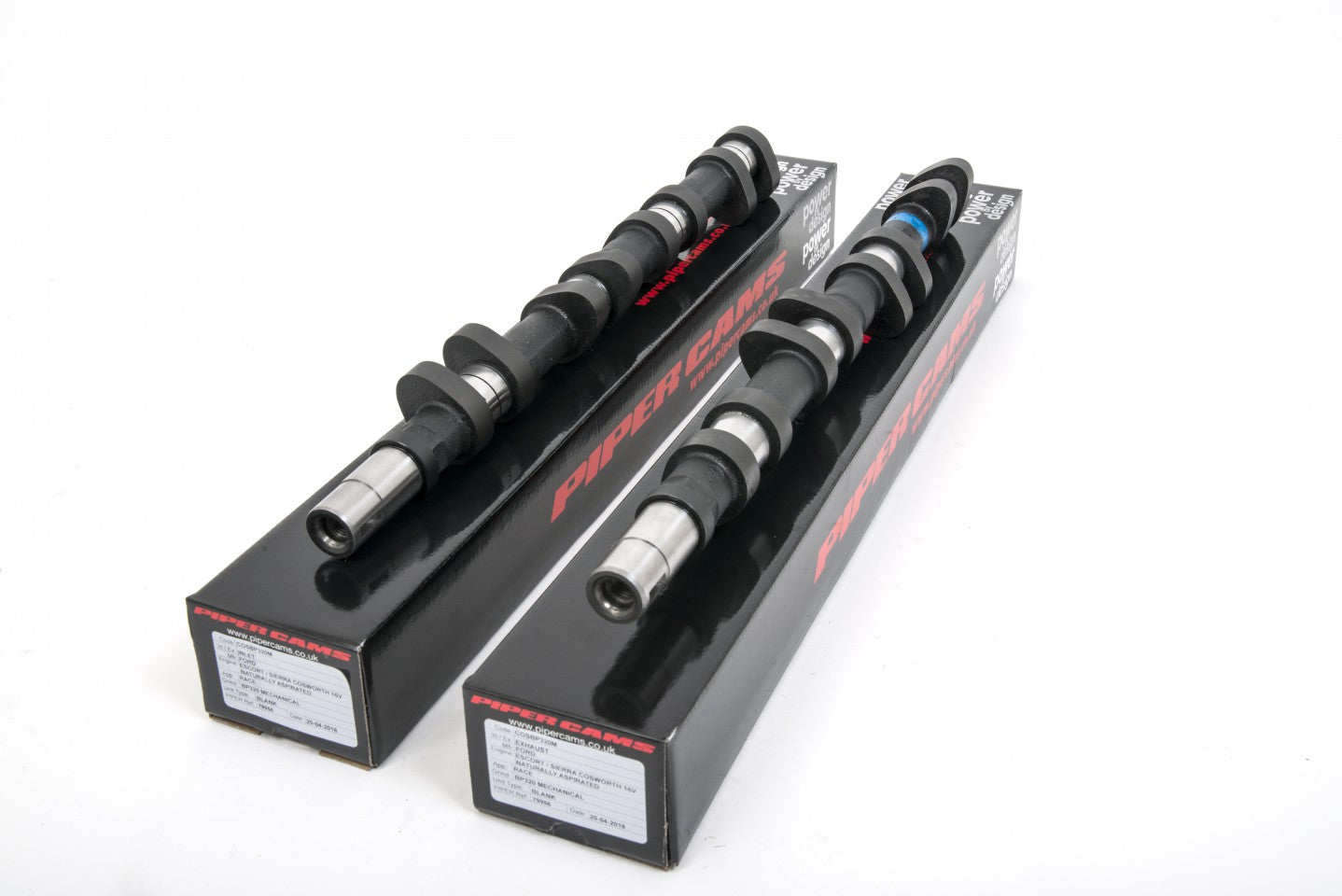

SKU: SKU: COSBP300HTB
Profile: BP300HT.
Application: Rally Turbo.
Unit Type: Blank.
Designed for Turbo engines utilising Hydraulic followers.
Note:When fitting to a 2WD head, Piper COSWASH thrust spacers are required.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new browser.
| Weight | 6 kg |
|---|---|
| Application | Rally |
| Power Band | 3000-7000 |
| Duration Inlet | 264° |
| Duration Exhaust | 264° |
| Valve Inlet Lift | .400" 10.16mm |
| Valve Exhaust Lift | .400" 10.16mm |
| Timing Inlet | 26 - 58 |
| Timing Exhaust | 58 - 26 |
| Full Inlet Lift | 106° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .075" 1.90mm |
| TDC Exhaust Lift | .075" 1.90mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
