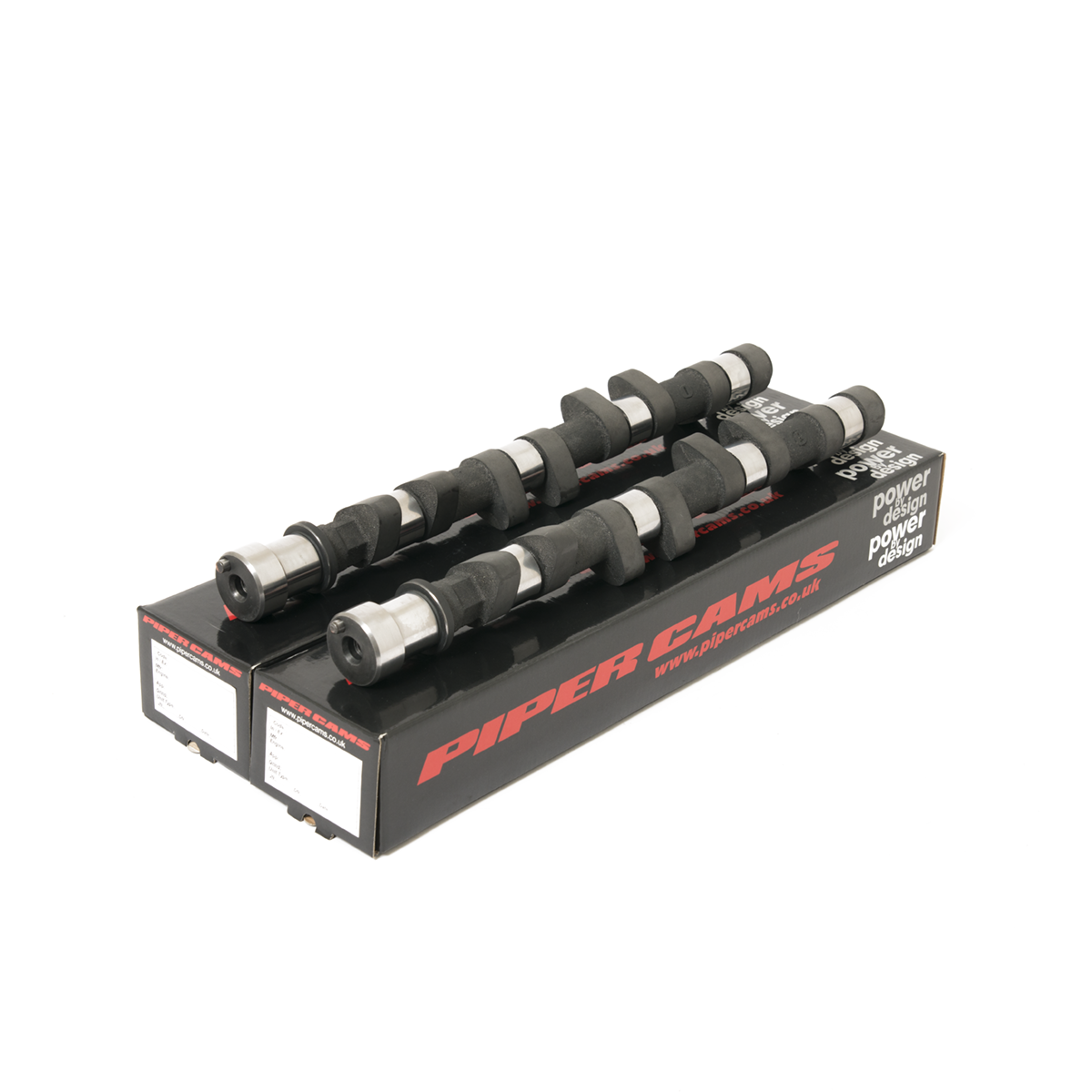

Piper Cams Camshaft - Race (Vauxhall)

SKU: SKU: C16VBP320MB

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP320M.

Application: Race.

Unit Type: Blank.

Designed for use in engines utilising Mechanical followers.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 5 kg
Application Race
Power Band 4000-8500
Duration Inlet 300°
Duration Exhaust 300°
Valve Inlet Lift .462" 11.73mm
Valve Exhaust Lift .435" 11.05mm
Timing Inlet 48 - 72
Timing Exhaust 74 - 46
Full Inlet Lift 102°
Full Exhaust Lift 104°
TDC Inlet Lift .187" 4.75mm
TDC Exhaust Lift .146" 3.71mm
Valve Inlet Clearance .012" .30mm
Valve Exhaust Clearance .012" .30mm

Vehicle Application

  • Vauxhall / OPEL Corsa / Tigra 16v
