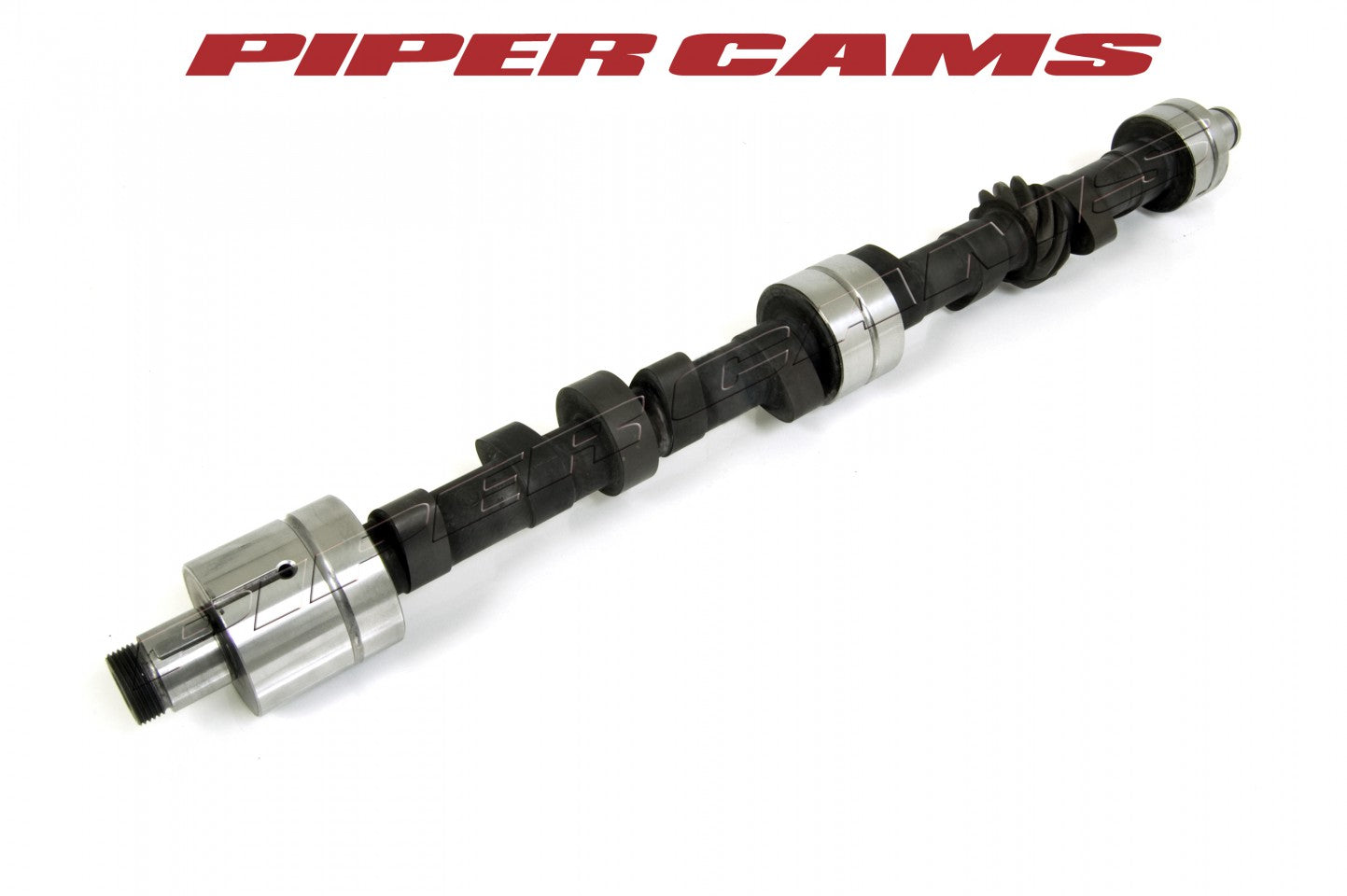

Piper Cams Camshaft - Ultimate Road (BMC)
Piper Cams Camshaft - Ultimate Road (BMC)

Piper Cams

Piper Cams Camshaft - Ultimate Road (BMC)

SKU: SKU: B864R

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: 864.

Application: Ultimate Road.

Unit Type: Re-Profiled Camshaft.

Note: This is a re-profile camshaft only. You will need to complete our Send Parts form and send us your existing camshaft. For more information, please take a look at our Reprofiling page.

Specifications

Weight 3 kg
Application Ultimate Road
Power Band 2500-6500
Duration Inlet 288°
Duration Exhaust 288°
Valve Inlet Lift .359" 9.13mm
Valve Exhaust Lift .359" 9.13mm
Timing Inlet 46 - 62
Timing Exhaust 66 - 42
Full Inlet Lift 98°
Full Exhaust Lift 98°
TDC Inlet Lift .109" 2.77mm
TDC Exhaust Lift .081" 2.06mm
Valve Inlet Clearance .017" .43mm
Valve Exhaust Clearance .017" .43mm

Vehicle Application

  • B Series 18V Model POST 71
  • B Series PRE 71
