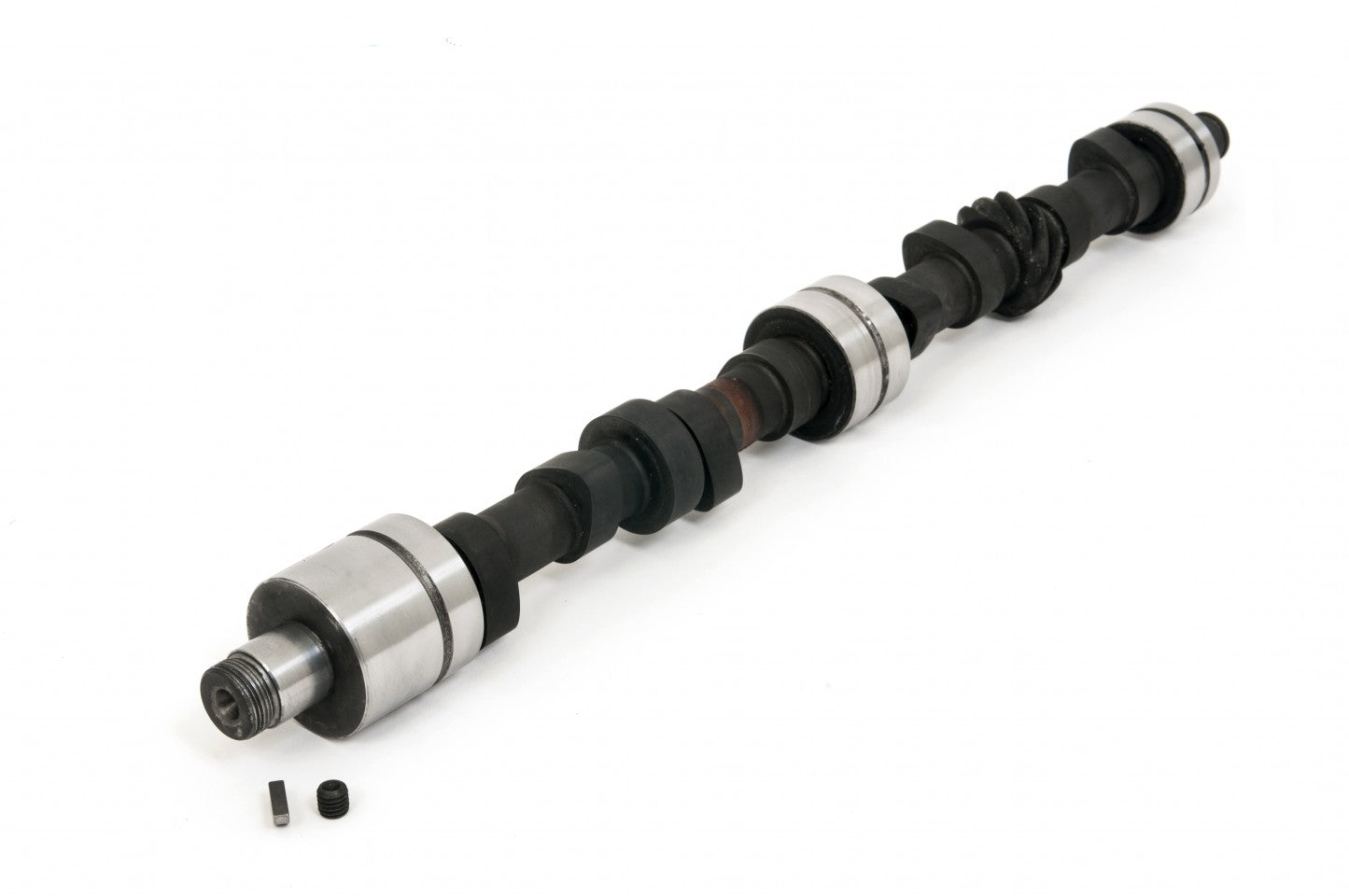

Piper Cams Camshaft - Rally (BMC)

SKU: SKU: B770B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: 770

Application: Rally.

Unit Type: Blank.

Download:-

Fitting Guide.

Preservative Oil Sheet.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 3 kg
Application Rally
Power Band 3000-7000
Duration Inlet 300°
Duration Exhaust 310°
Valve Inlet Lift .445" 11.30mm
Valve Exhaust Lift .445" 11.30mm
Timing Inlet 50 - 70
Timing Exhaust 75 - 45
Full Inlet Lift 100°
Full Exhaust Lift 100°
TDC Inlet Lift .153" 3.89mm
TDC Exhaust Lift .129" 3.28mm
Valve Inlet Clearance .018" .45mm
Valve Exhaust Clearance .018" .45mm

Vehicle Application

  • B Series 18V Model POST 71
  • B Series PRE 71
