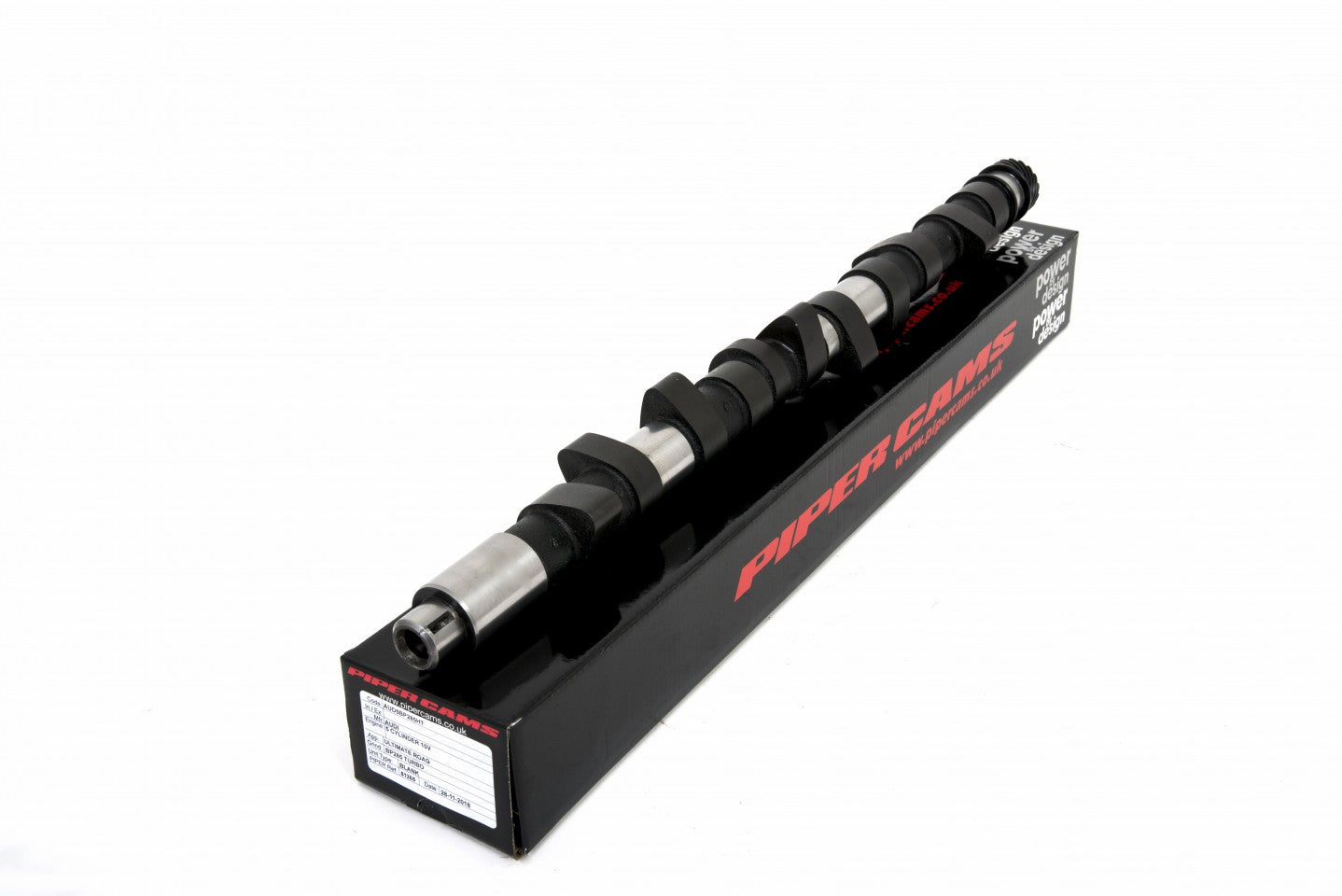

Piper Cams Camshaft - Rally (V.A.G.)

SKU: SKU: AUD5BP300B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP300.

Application: Rally.

Unit Type: Blank.

Designed for use in engines utilising Mechanical followers.

Download:-

Fitting Data.

Right click the link and select 'Save link as to download.

Click the link to open in a new tab.

Specifications

Weight 3 kg
Application Rally
Power Band 3000-7000
Duration Inlet 300°
Duration Exhaust 300°
Valve Inlet Lift .448" 11.38mm
Valve Exhaust Lift .446" 11.33mm
Timing Inlet 44 - 76
Timing Exhaust 76 - 44
Full Inlet Lift 106°
Full Exhaust Lift 106°
TDC Inlet Lift .126" 3.20mm
TDC Exhaust Lift .124" 3.15mm
Valve Inlet Clearance .012" 0.305mm
Valve Exhaust Clearance .014" .0.356mm

Vehicle Application

  • VAG / AUDI 5 CYL 10v
