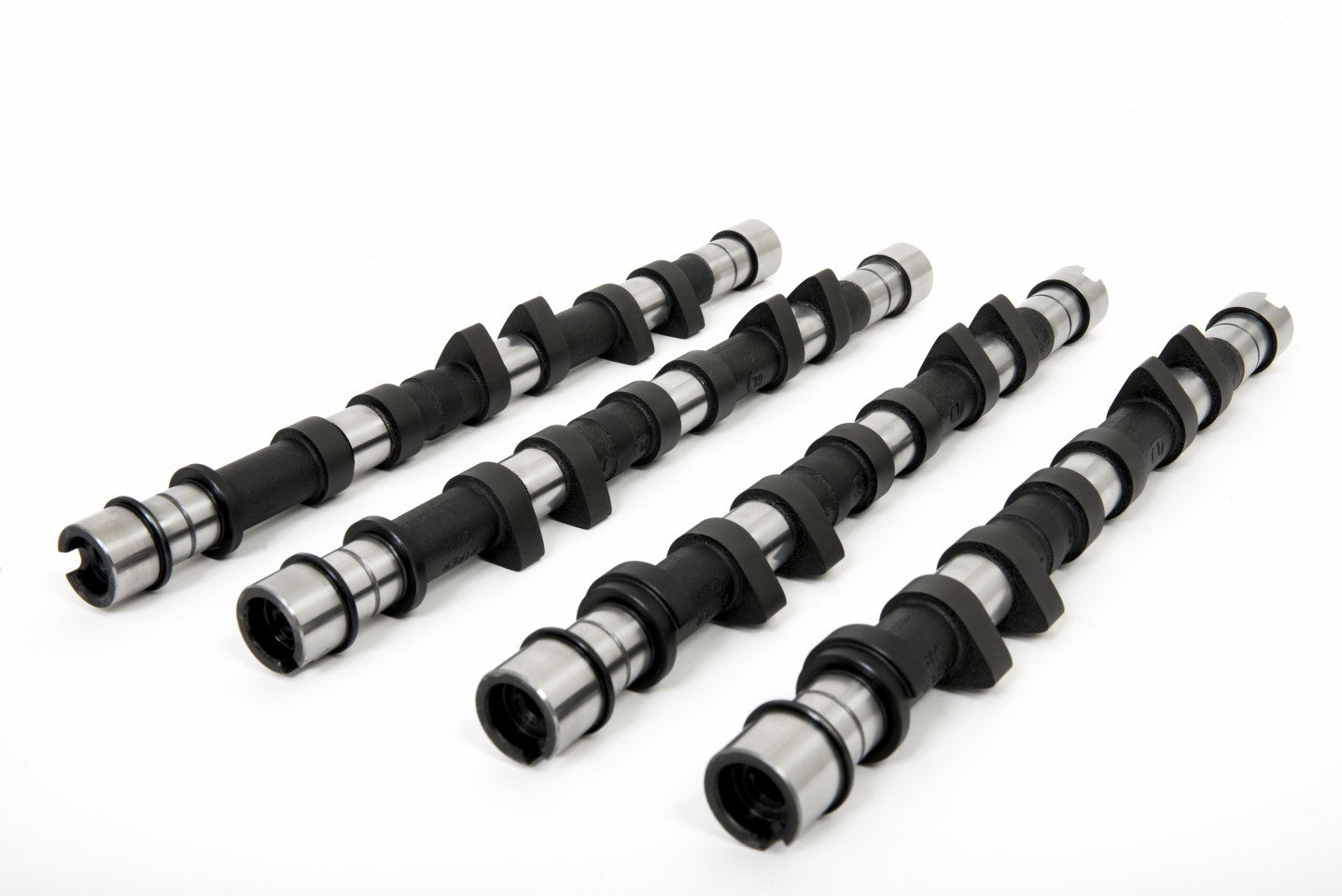

SKU: SKU: ARKV6BP285HB
Profile: BP285H.
Application: Ultimate Road.
Unit Type: Blank.
Designed for use in engines utilising Hydraulic followers.
Note: Not recommended for use with standard injection.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 8 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2000-6800 |
| Duration Inlet | 274° |
| Duration Exhaust | 274° |
| Valve Inlet Lift | .430" 10.92mm |
| Valve Exhaust Lift | .430" 10.92mm |
| Timing Inlet | 33 - 61 |
| Timing Exhaust | 63 - 31 |
| Full Inlet Lift | 104° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .105" 2.67mm |
| TDC Exhaust Lift | .100" 2.54mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
