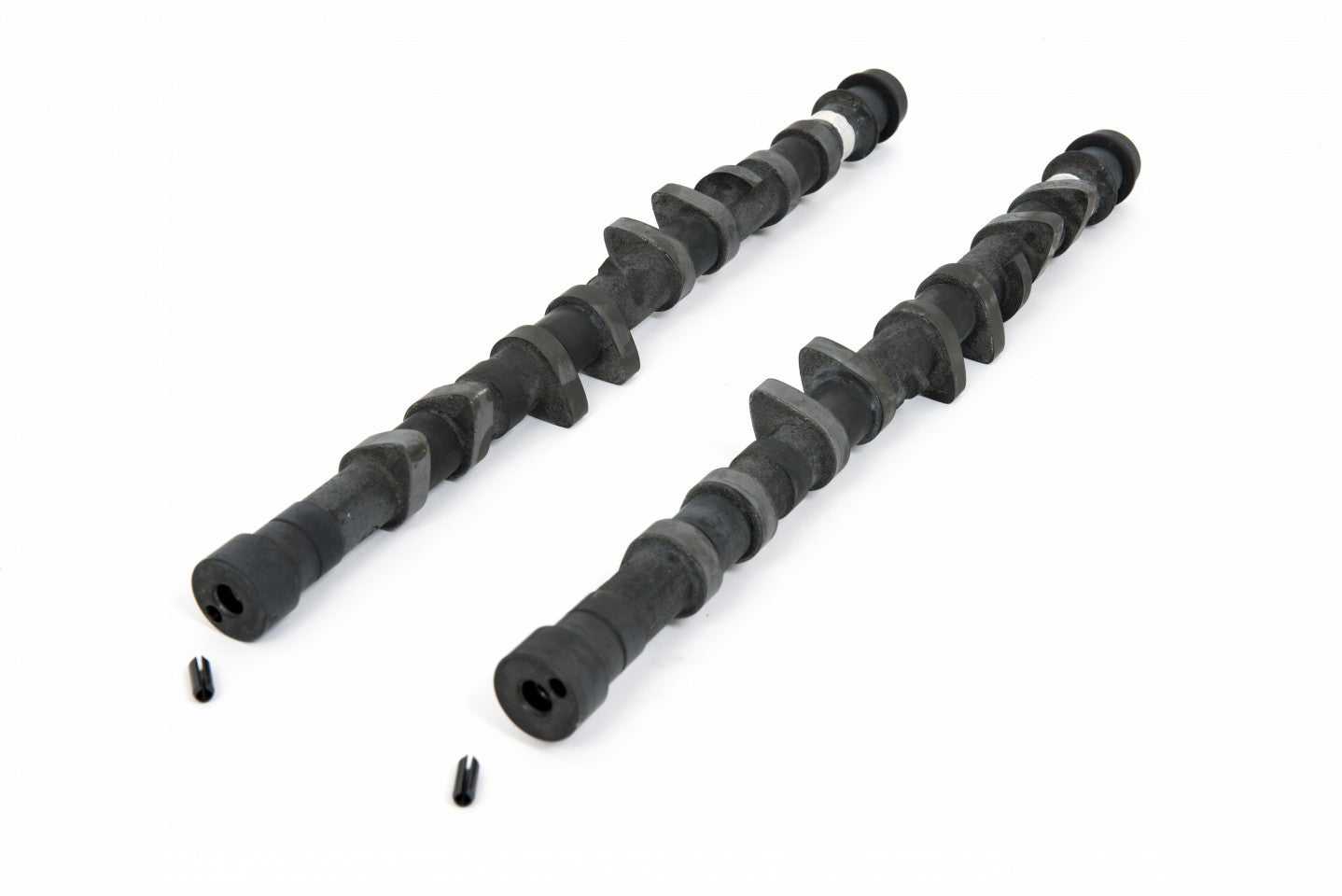

SKU: SKU: ARKBP300MB
Profile: BP300M.
Application: Sprint / Hill Climb.
Unit Type: Blank.
Designed to be used with Piper FOLKM Mechanical followers.
Note: Over 200bhp easily obtainable with tremendous torque.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 4 kg |
|---|---|
| Application | Race |
| Power Band | 3200-8000 |
| Duration Inlet | 280° |
| Duration Exhaust | 280° |
| Valve Inlet Lift | .442" 11.23mm |
| Valve Exhaust Lift | .440" 11.18mm |
| Timing Inlet | 34 - 66 |
| Timing Exhaust | 70 - 30 |
| Full Inlet Lift | 104° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .121" 3.08mm |
| TDC Exhaust Lift | .108" 2.75mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
