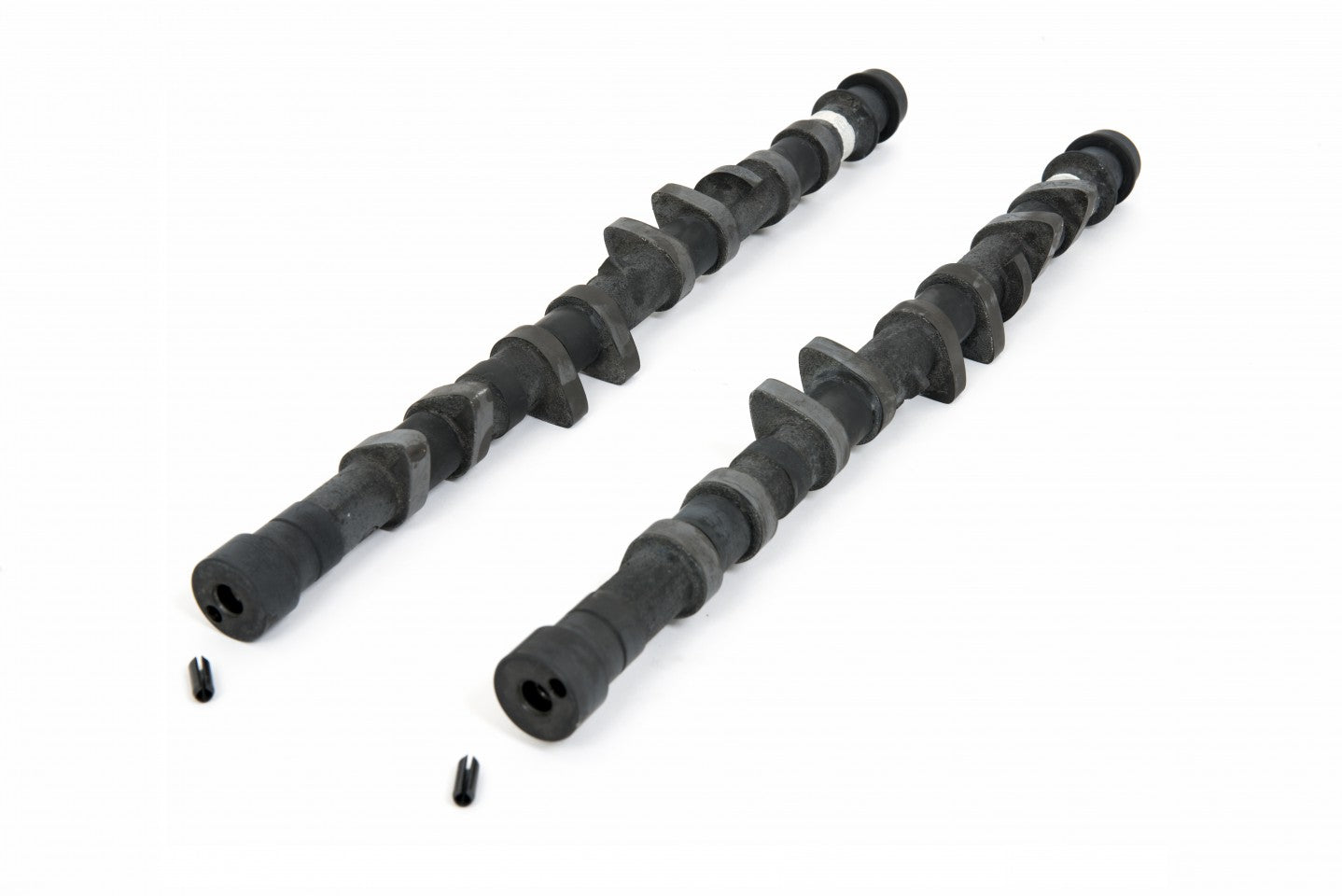

SKU: SKU: ARK1227
Profile: 1227.
Application: SLR 500
Unit Type: Blank.
Now a legendary profile in the K Series tuning world.
Note:Piper FOLKM Mechanical followers must be used.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 4 kg |
|---|---|
| Application | Race |
| Power Band | 4500-8500 |
| Duration Inlet | 280° |
| Duration Exhaust | 280° |
| Valve Inlet Lift | .462" 11.73mm |
| Valve Exhaust Lift | .460" 11.68mm |
| Timing Inlet | 36 - 64 |
| Timing Exhaust | 68 - 32 |
| Full Inlet Lift | 104° |
| Full Exhaust Lift | 108° |
| TDC Inlet Lift | .140" 3.55mm |
| TDC Exhaust Lift | .117" 2.97mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
