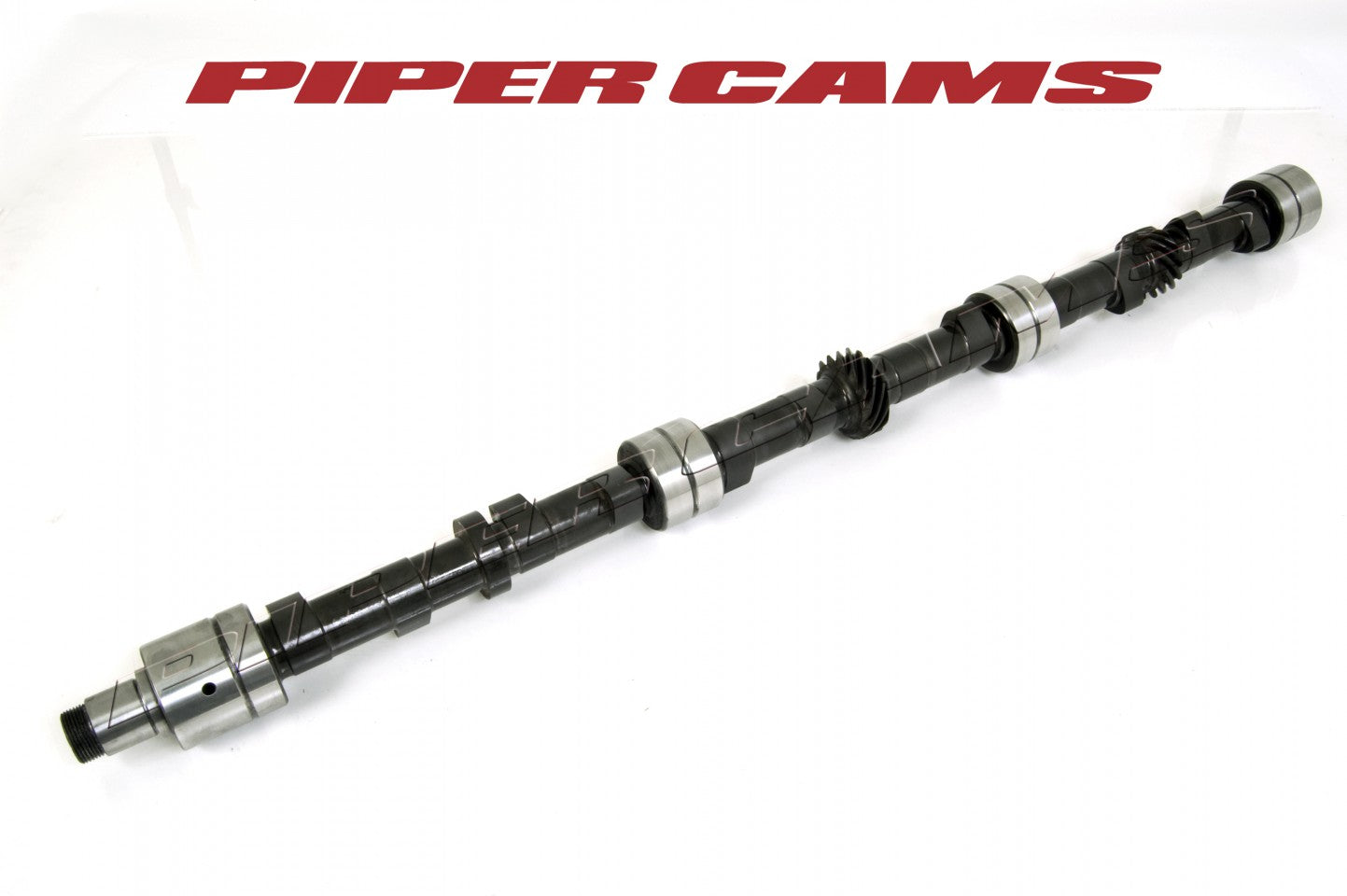

Piper Cams Camshaft - Rally Race (Austin Healey)

SKU: SKU: AH3SPRINT

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: SPRINT.

Application: Rally Race.

Unit Type: Blank.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 5 kg
Application Rally Race
Power Band 2000-6800
Duration Inlet 320°
Duration Exhaust 300°
Valve Inlet Lift .455" 11.56mm
Valve Exhaust Lift .453" 11.51mm
Timing Inlet 60 - 80
Timing Exhaust 75 - 45
Full Inlet Lift 100°
Full Exhaust Lift 100°
TDC Inlet Lift .188" 4.78mm
TDC Exhaust Lift .132" 3.34mm
Valve Inlet Clearance .015" .38mm
Valve Exhaust Clearance .015" .38mm

Vehicle Application

  • 3000
