SKU: SKU: AH3BP285R
Profile: BP285.
Application: Ultimate Road.

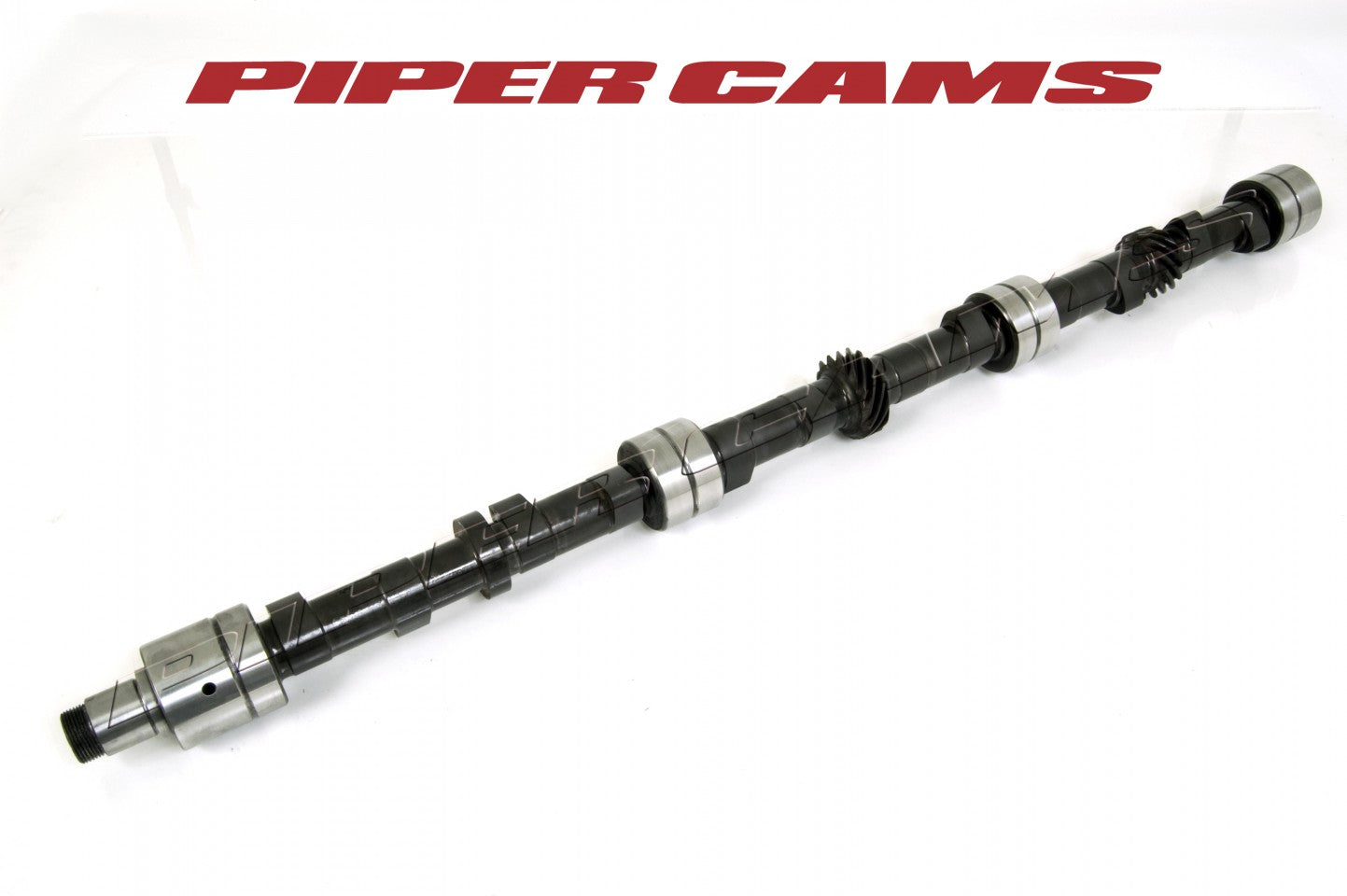

Unit Type: Re-Profile Camshaft.
Note:This is a re-profile camshaft only. You will need to complete our Send Parts form and send us your existing camshaft. For more information, please take a look at our Reprofiling page.
| Weight | 5 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 1600-6000 |
| Power Increase | 20BHP |
| Duration Inlet | 288° |
| Duration Exhaust | 288° |
| Valve Inlet Lift | .421" 10.69mm |
| Valve Exhaust Lift | .419" 10.64mm |
| Timing Inlet | 39 - 69 |
| Timing Exhaust | 74 - 34 |
| Full Inlet Lift | 105° |
| Full Exhaust Lift | 105° |
| TDC Inlet Lift | .105" 2.66mm |
| TDC Exhaust Lift | .080" 2.02mm |
| Valve Inlet Clearance | .014" .35mm |
| Valve Exhaust Clearance | .016" .40mm |
