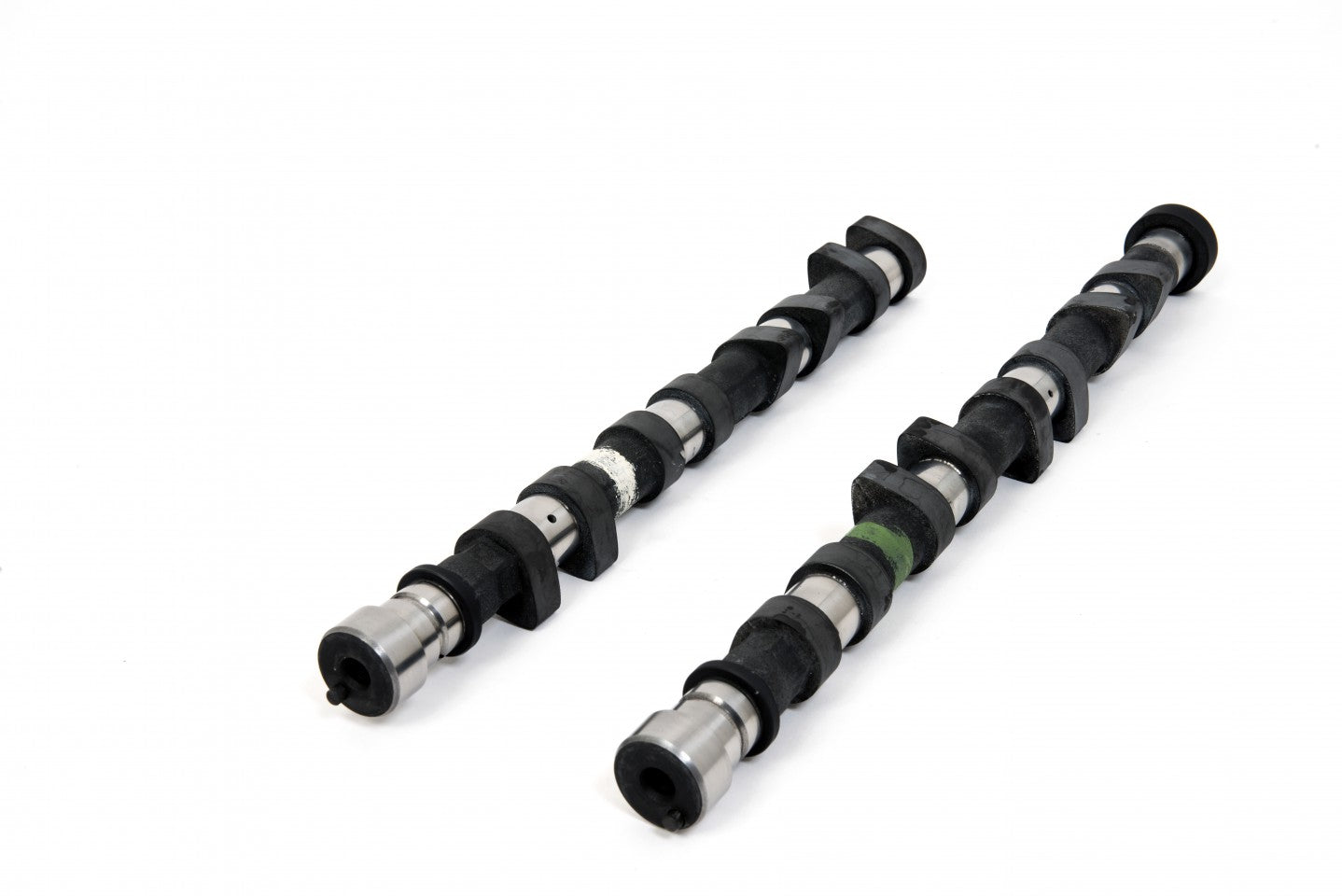

SKU: SKU: A16VBP320M-SHORT
Profile: BP320M.
Application: Race.
Unit Type: Blank.
Designed for engines utilising Mechanical followers.
Note: Piper VDSAST16 Valve Springs must be used.
Note: If you require the Exhaust camshaft to be ground on an Inlet blank, please choose 'YES' on the drop down box.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 5 kg |
|---|---|
| Application | Race |
| Power Band | 4000-8500 |
| Duration Inlet | 300° |
| Duration Exhaust | 300° |
| Valve Inlet Lift | .462" 11.73mm |
| Valve Exhaust Lift | .435" 11.05mm |
| Timing Inlet | 48 - 72 |
| Timing Exhaust | 74 - 46 |
| Full Inlet Lift | 102° |
| Full Exhaust Lift | 104° |
| TDC Inlet Lift | .187" 4.75mm |
| TDC Exhaust Lift | .146" 3.71mm |
| Valve Inlet Clearance | .012" .30mm |
| Valve Exhaust Clearance | .012" .30mm |
| Short exhaust camshaft required? | YES, NO |
