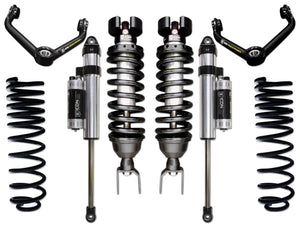

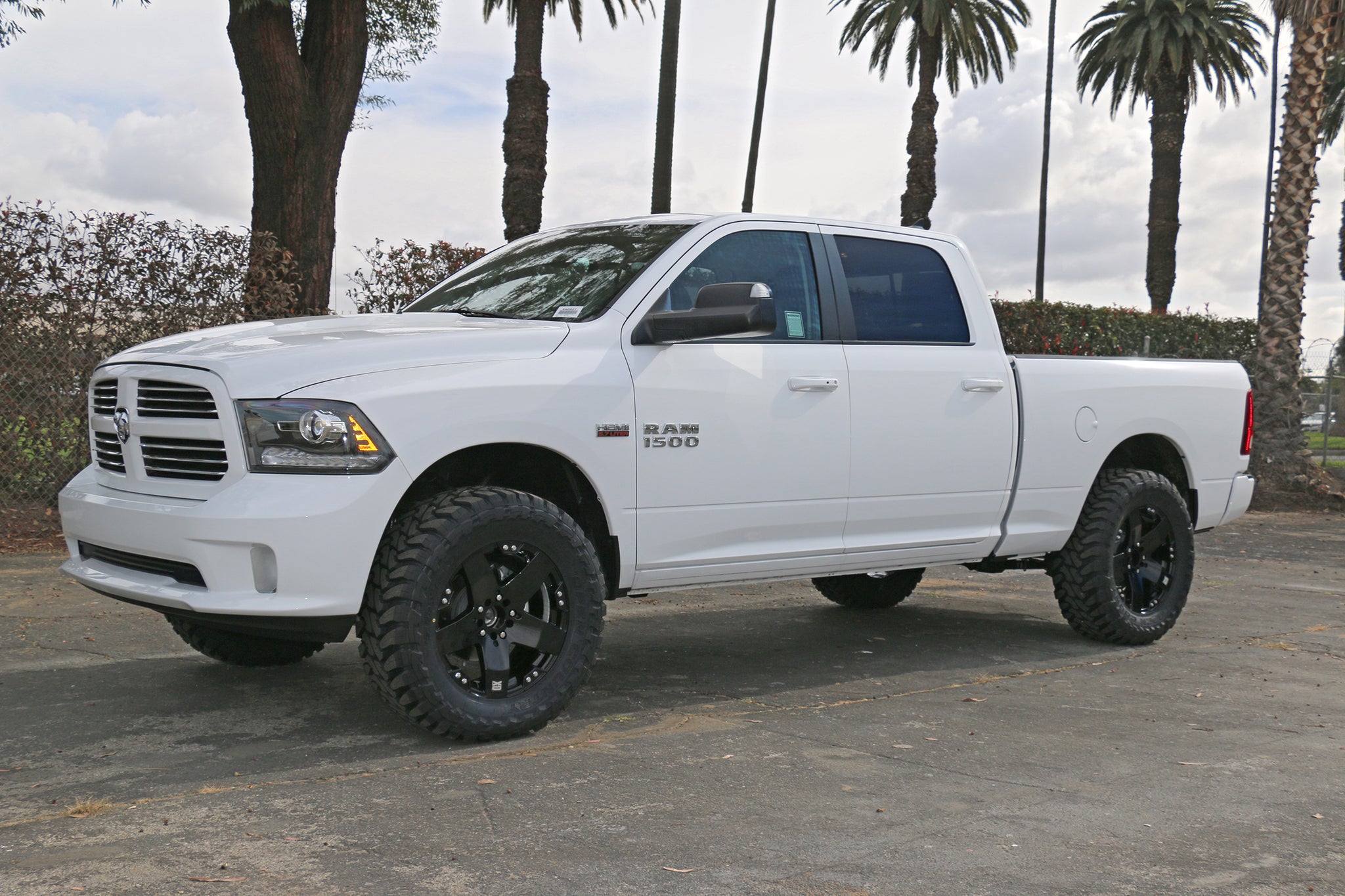

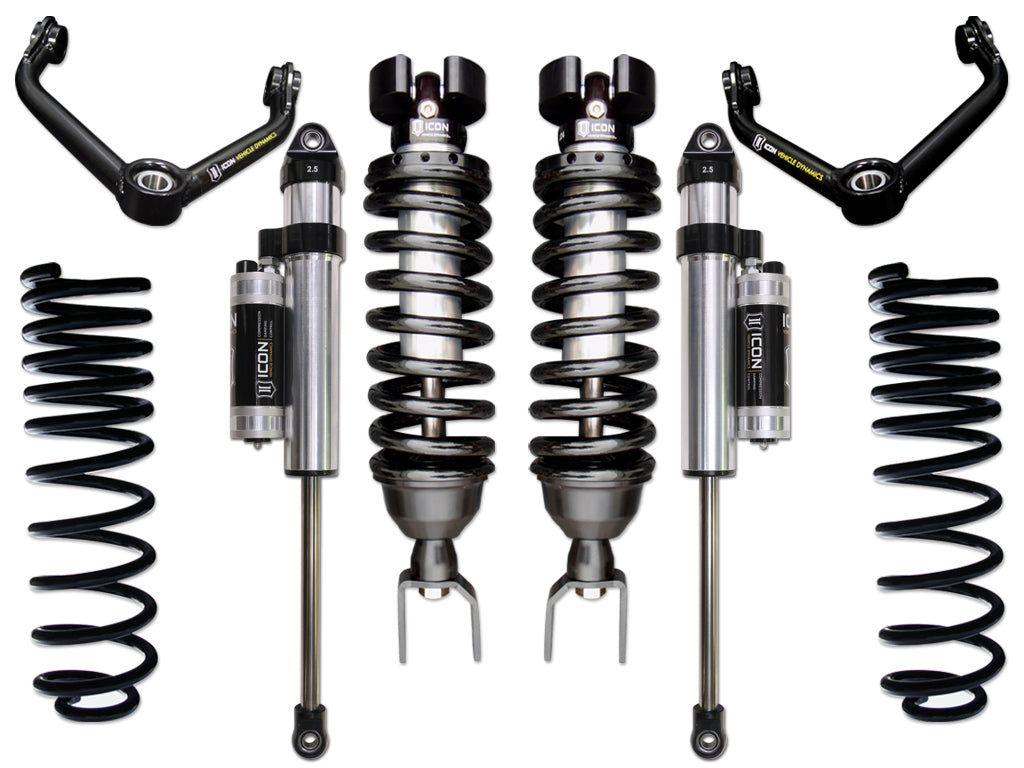

ICON 09-18 Ram 1500 4WD .75-2.5in Stage 5 Suspension System - K213005

ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from .75-2.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series rear shocks with CDC Valve utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• ICON CDC Valve allows quick and easy end-user adjustability
• Adjustable coilovers from .75-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• 2.5 Aluminum Series rear shocks with CDCV
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

OEM Wheels & Tires Fitment: Yes

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” BS / 0mm Offset

Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE

APPLICATION NOTE #99: AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE USED FOR TOWING

TECH NOTE: Compatible with 2019-2022 Ram 1500 Classic models. Lift height range is .75-2.5" over stock

TECH NOTE: Not compatible with models equipped with OE air suspension

Ships in Multiple Boxes

Specifications

Documents

• I212150_REVA.pdf
• I217715CP_REVB.pdf
• I218550DJ_REVB.pdf
