Ford Racing - 7.3l Lh Cnc Ported Cylinder Head - M-6050-SD73P

SKU: SKU: FRPM-6050-SD73P

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

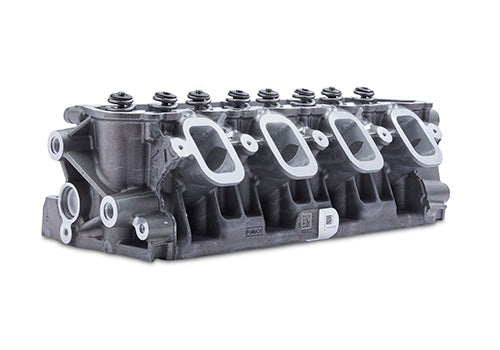

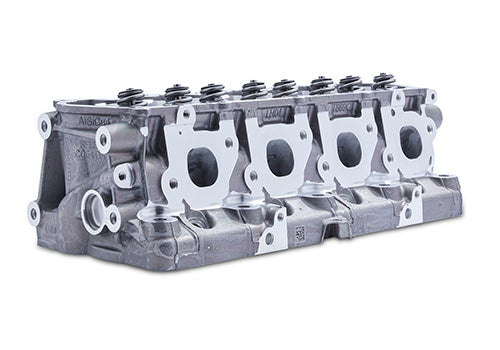

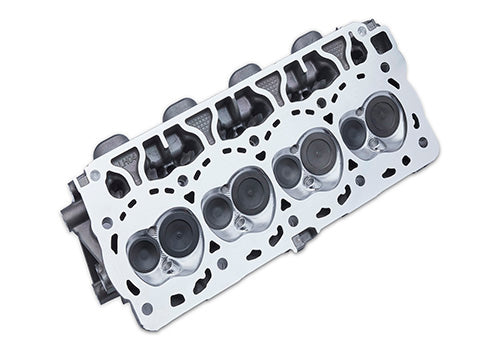

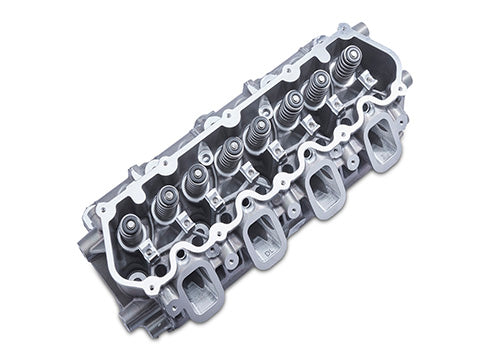

7.3L Lh Cnc Ported Cylinder Head — manufactured by Ford Performance Parts (Ford Motor Company).

 Ford Performance CNC ported left side cylinder head for 2020+ Super Duty 7.3L gasoline engine.

  • Assembled ready for installation
  • CNC ported Cast aluminum
  • As used in the Ford Performance Megazilla™ 615HP crate engine
  • 62.4 cc combustion chamber
  • PAC 1282LX valve springs / PAC R393 retainers
  • 140-150# @ 2.350" installed height
  • 390-415# @ 1.750" open
  • Valve stem diameter: 8 mm
  • Intake valve diameter: 55mm (2.165")
  • Exhaust valve diameter 42.4mm (1.670")
  • Flow data (CFM) @ 28" H20 on 4.250" bore
  • For right side see M-6049-SD73P

Stock Intake Port   M-6049-SD73P Intake
Lift CFM Lift CFM
0.100" 70.9 0.100" 75.1
0.200" 147.6 0.200" 150.9
0.300" 218.6 0.300" 223.4
0.400" 265 0.400" 271.0
0.500" 299 0.500" 314.0
0.600" 297.8 0.600" 324.7
0.700" 298.4 0.700" 332.3
Stock Exhaust   M-6049-SD73P Exhaust
Lift CFM Lift CFM
0.100" 53.9 0.100" 57.0
0.200" 104.6 0.200" 107.0
0.300" 150.7 0.300" 147.9
0.400" 178.3 0.400" 183.1
0.500" 187.8 0.500" 209.0
0.600" 192.8 0.600" 216.0
0.700" 195.8 0.700" 219.0

    Part Type
    Engine: Cylinder Heads
    Warranty Availability
    Available
    Package Dimensions
    22.75" x 10.25" x 13"
    Package Weight
    40 lb(s)
    UPC Code
    756122019252
    Country of Origin
    Canada

    Genuine Ford Performance Parts — backed by Ford Motor Company's factory engineering and warranty.
