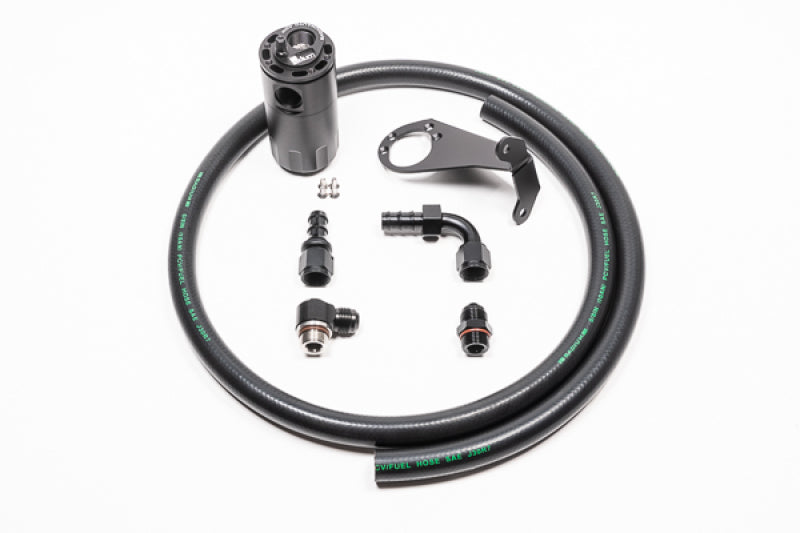

The CCV catch can mounts to 2 of the wiper blade motor mounts.
To retain factory functionality, the CCV catch can runs inline between the crankcase vent (CCV) port and the intake pipe. At low loads, it experiences atmospheric pressure. However, when the engine is at high load (WOT), the line will experience high flow from the crankcase into the intake system. This would normally lead to oil and sludge accumulation in the air filter intake pipe. This oil accumulation would spread and be found in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance. The CCV catch can captures this and promotes clean filtered air back into the intake.
NOTES
- The CCV catch can kit does NOT address blow-by from the PCV valve side of the crankcase.
- The CCV catch can kit is compatible and recommended to be used with the PCV catch can kit. See 20-0635 above.
