GReddy Universal Oil Cooler Kit - Core NS1610G - 12004316

USE THE PULL-DOWN MENU ABOVE TO SELECT CENTER BOLT SIZE, THEN ADD TO CART ^  SPECIAL ORDER, Call for ETA

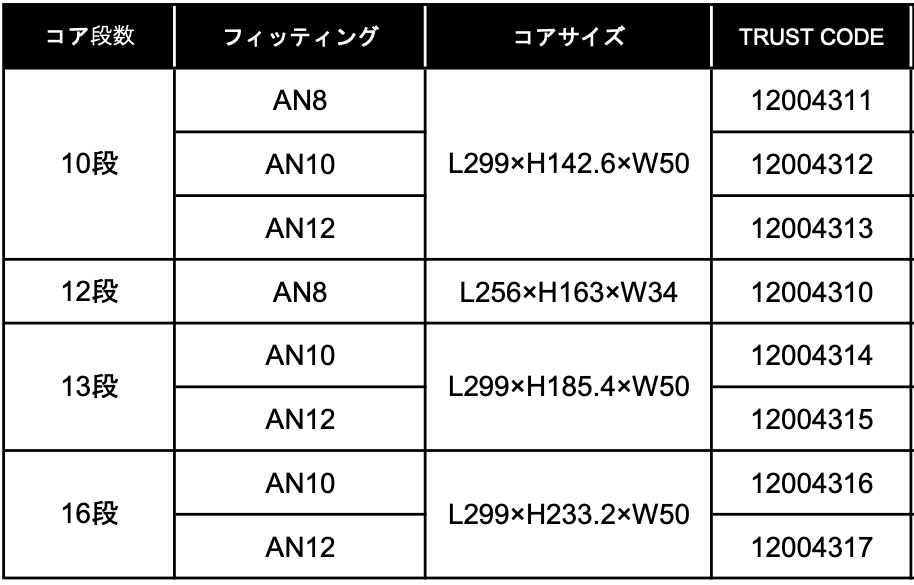

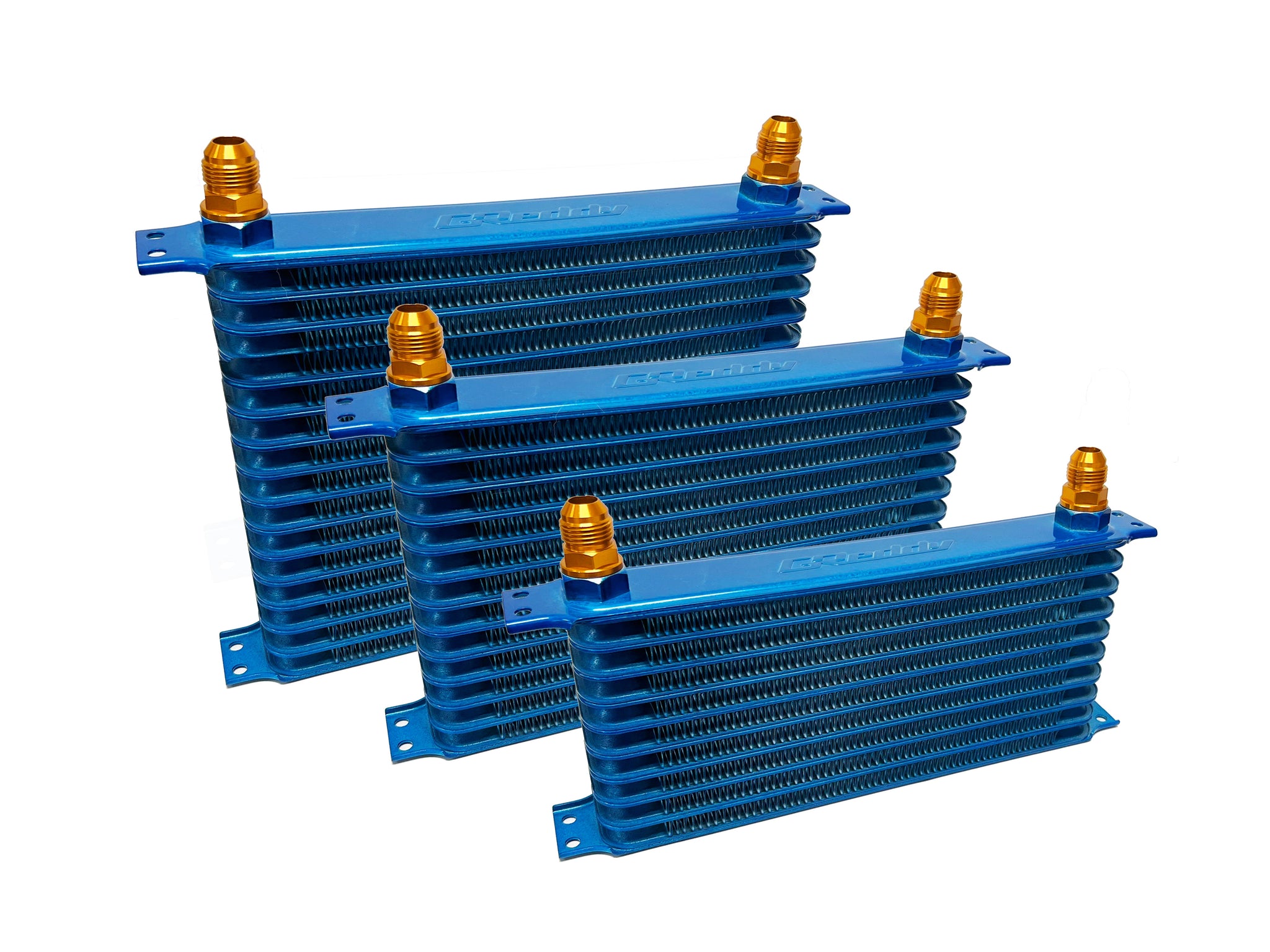

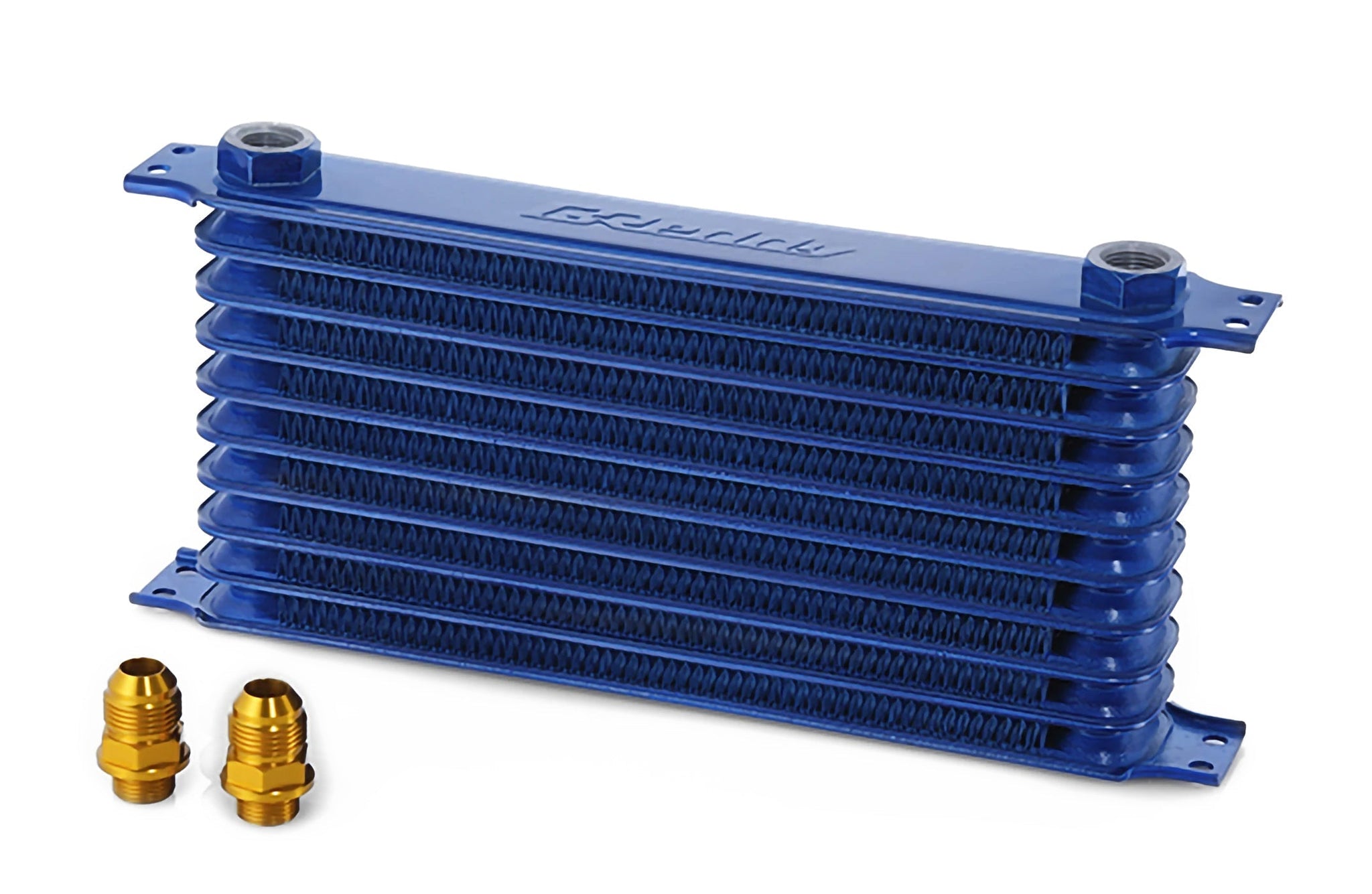

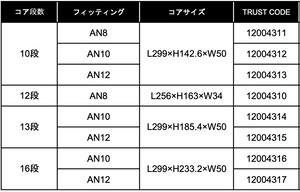

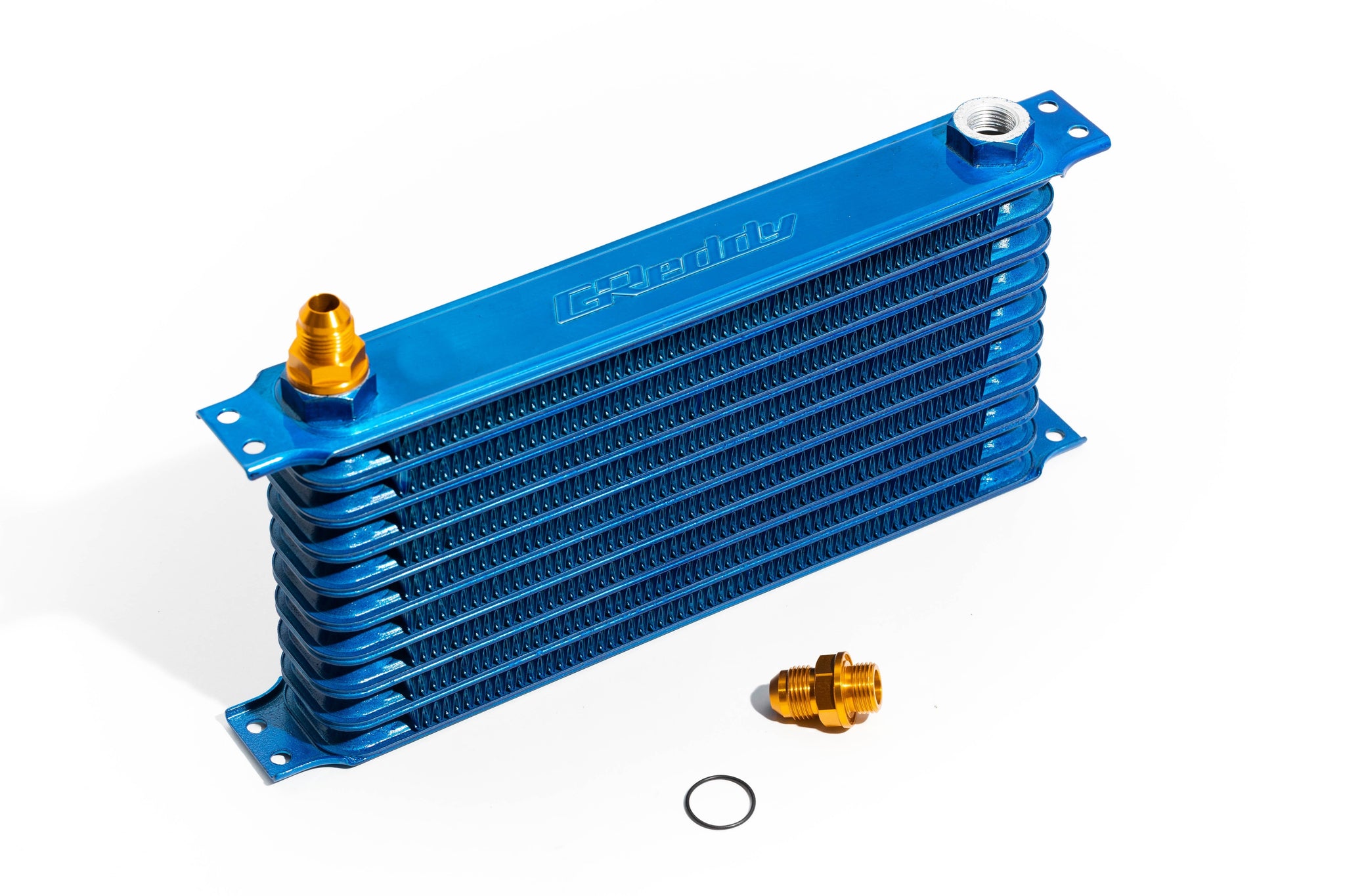

Universal GReddy Inner-Fin Oil Cooler Cores:
    with -10AN - M18xP1.5 O-ring Fittings (p/n 12005103)

12004312 -#10 row - L299 x H142.6 x W50 w/ -10AN fittings (+540cc)
12004314 -#13 row - L299 x H142.6 x W50 w/ -10AN fittings (+720cc)
12004316 -#16 row - L299 x H142.6 x W50 w/ -10AN fittings (+840cc)

* - 08 AN fittings p/n  12005110
* -10 AN fittings p/n  12005103
* -12 AN fittings p/n 12005112

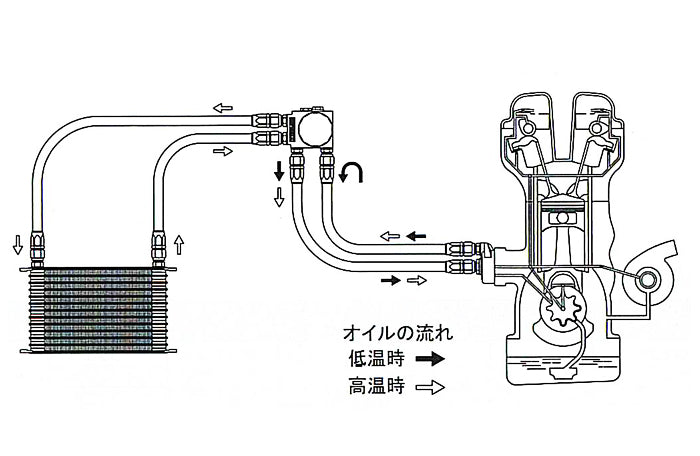

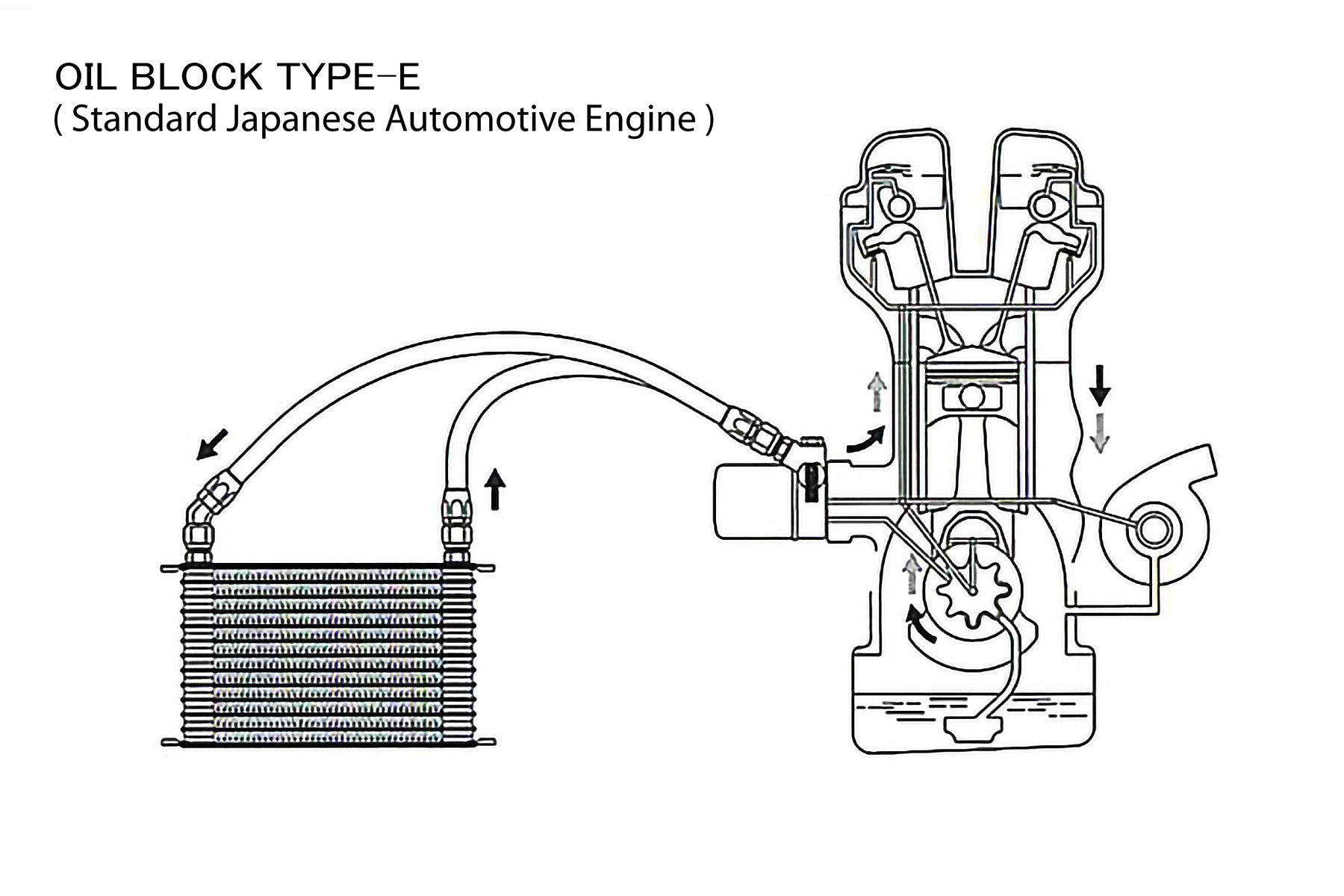

* Ideal to be used with GReddy Oil Block Adapters for a custom Oil Cooler set-up.
    p/n 12401123 / 12401119 or 12401111 / 12401129 / 12401131 / 12401135 with 12401114

(Blog)

* Aslo see GReddy Oil Cooler External Thermostat Block when adding an Oil Cooler core to an existing Oil Filter Relocation Kit
