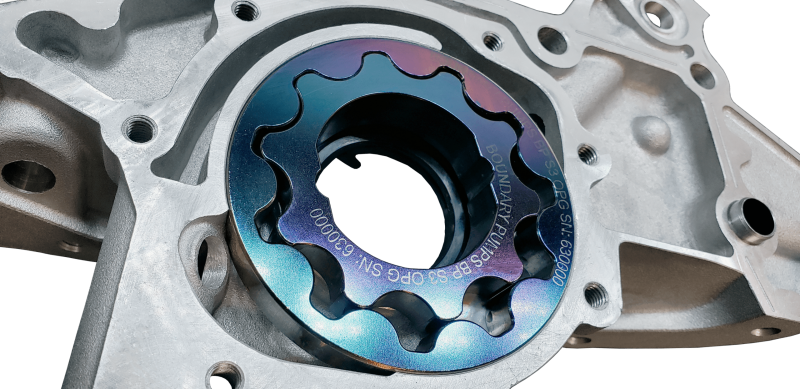

Stage III pumps increase the overall flow by machining a deeper pocket into the oil pump and fitting larger gears in this pocket. This increases the strength of the pump, increases mid-range oil pressure, and increases the strength of the oil pump gears.
The Stage III Pumps have these additional modifications:
- Larger gears are fitted into the oil pump which increases mid-range protection and ensures compatibility with VVT.
- The pump is shimmed increasing maximum warm pressure from 60 PSI to 70 PSI.
All assembled billet pumps undergo the following:
- The pump is thoroughly taken apart; all parts undergo ultrasonic cleaning, air blast, and hand inspection.
- The pump is hand de-burred.
- Our industry-leading mirror-finished gear set is used
- It is assembled with our Black Series ported gerotor with dual-stage MartenWeartreatment
- When closing the pump up, we use our Billet Steel Anti-Cavitationoil pump cover with MartenWeartreatment
- Stainless Torx heads replace the stock fasteners
- All fasteners are torqued to spec
- Loctite applied to fasteners to prevent back out or loosening
- Anaerobic sealant applied to critical areas to boost pump up speed and reduce aeration.
- Assembly lubricant applied to all critical surfaces to get oil flowing fast on startup
- Parts are blueprinted and issued with a specification sheet.
Part Number BP-S3 FITS:
- MIATA 1991.5-2005
