SKU: SKU: EDE1554

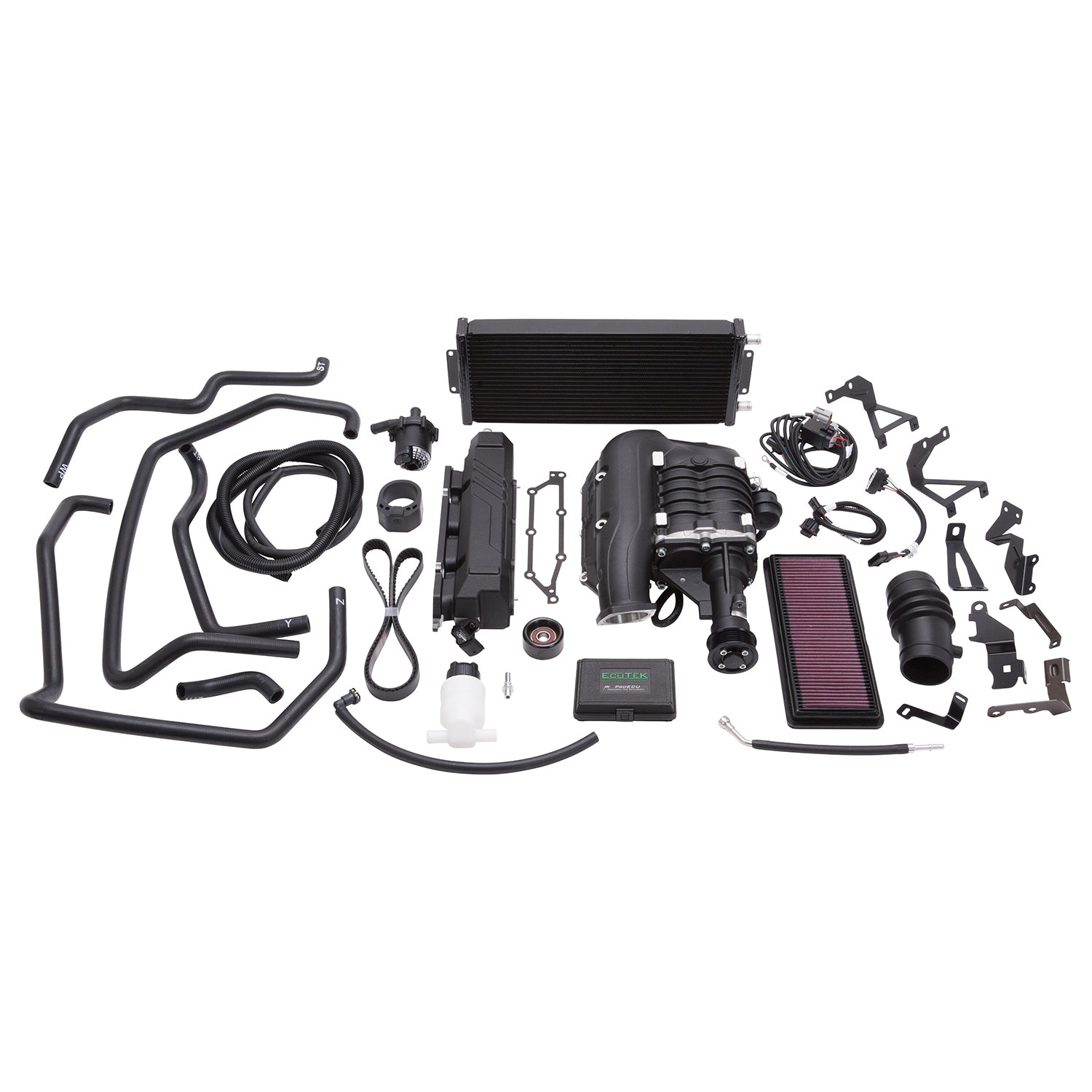

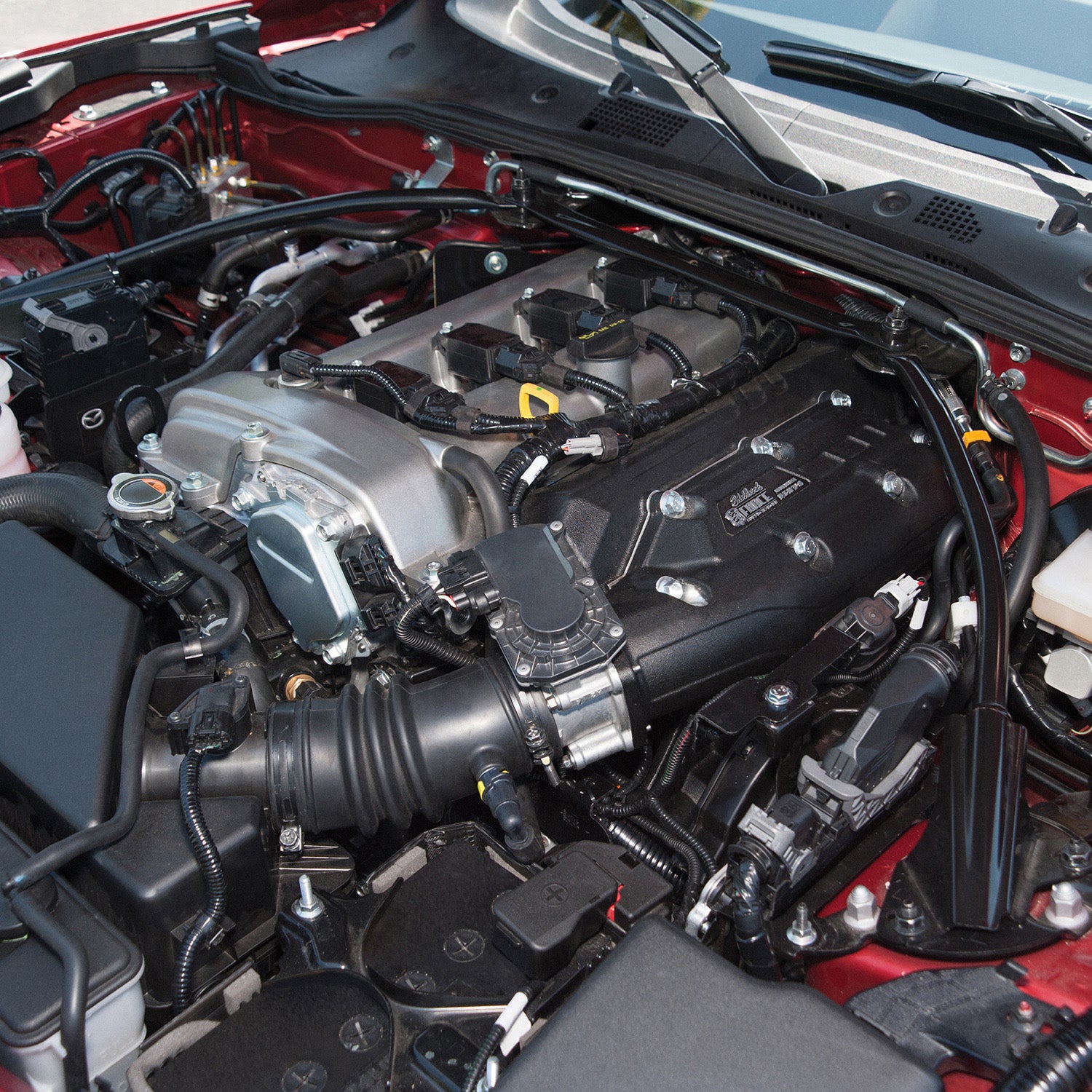

The Edelbrock Stage 1 Street Supercharger system part #1554 for 2016-18 Mazda MX-5 Miata increases the performance of your SKYACTIV -G 2.0L engine to 198 RWHP and 182 ft-lbs of torque at the rear wheels. Its unique design utilizes the Eaton R900 TVS rotor assembly for maximum efficiency in a compact package. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance with a smooth and linear power curve. The supercharger assembly is finished with a durable black powder coating that integrates seamlessly into the Miata engine bay. For safety, the Edelbrock-supplied program will retain the factory vehicle speed limiter setting. Increases horsepower by 41% and torque by 36% over stock. Unique compact design fits under the stock hood. Supplied with preformed hoses for ease of installation - no trimming needed. Bolt-on installation - everything fits right out of the box with no cutting or welding needed. Features Eaton Gen VI R900 TVS rotor assembly
Edelbrock Stage 1 Street Supercharger system part #1554 for 2016-18 Mazda MX-5 Miata increases the performance of your SKYACTIV-G 2.0L engine to 198 horsepower and 182 ft-lbs of torque at the rear wheels.
| Hose Included | Yes |
| Outside Pulley Diameter | 2.75 IN |
| Gasket Or Seal Included | Yes |
| Maximum Boost Pressure | 8.25 PS |
| Vehicle Model | Miata MX-5 |
| Housing Material | Cast Aluminum |
| Quantity | Kit |
| Maximum Pressure Reading | 8.25 PS |
| Rotor Type | Eaton TVS 900 |
| Internal Step Up | Yes |
| Mounting Bracket Included | Yes |
| Universal Or Specific Fit | Specific |
| Maximum Torque | 182RW 85 |
| Harmonic Balancer Diameter | Stock |
| Calibration | Yes |
| Finish | Black Powder Coated |
| Air Filter Included | Yes |
| Oil Capacity | 125 ML |
| 9040 | D-215-95 |
| Center Housing Cooling Type | Intercooler |
| System Type | Stage 1 - Street System |
| Maximum Horsepower | 198RW |
| Mounting Hardware Included | Yes |
| Pulley Belt Width | 6-Rib |
California Prop 65 Warning: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
