SKU: SKU: EDE22781

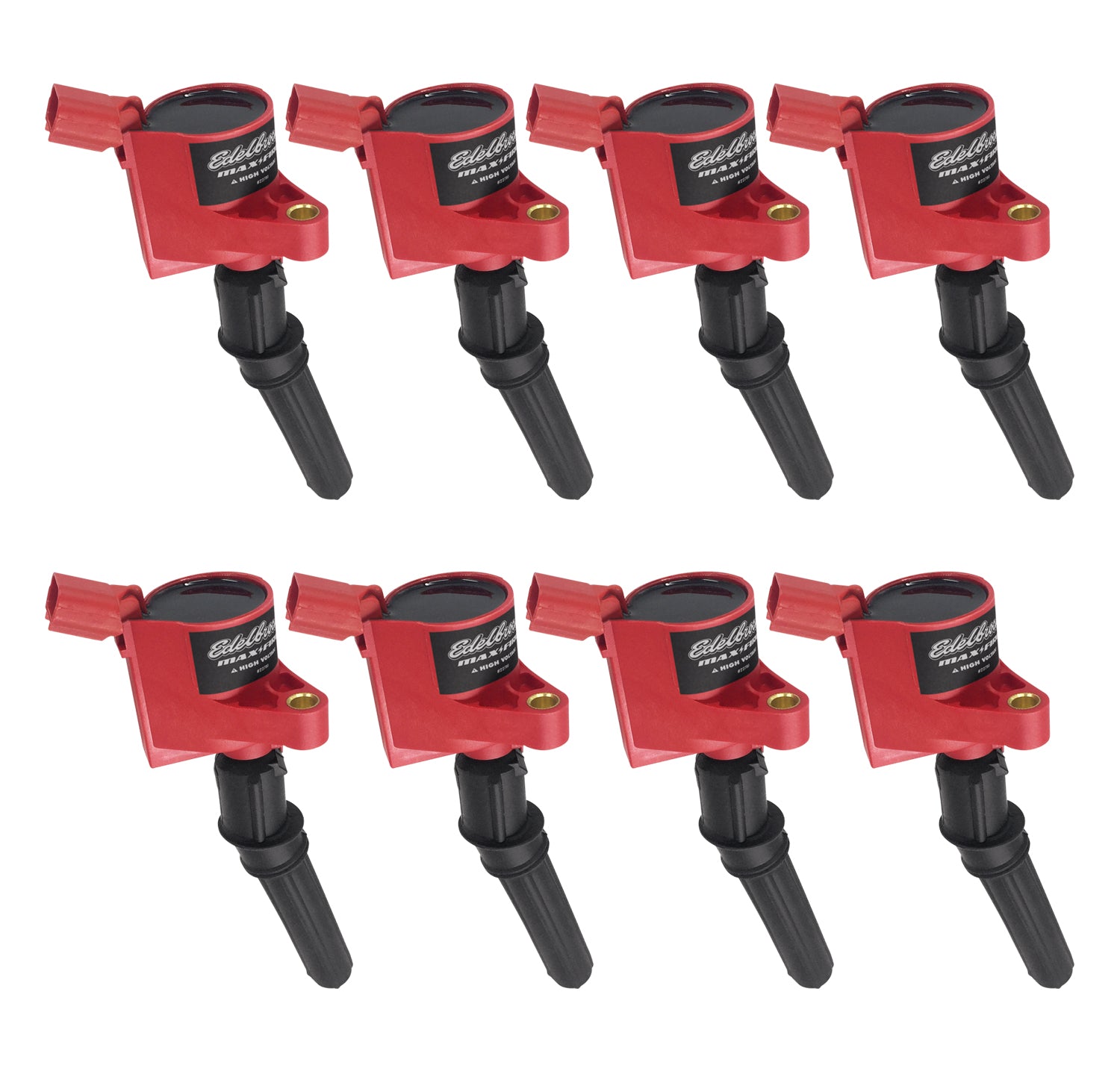

Edelbrock Coil Pack #22781 is a set of eight coil-on-plug coils designed as direct performance replacements for the OEM coils on 1998-08 Ford 4.6L-5.4L V8 engines. This coil pack can also be used to replace the OEM coils on 6.8L Triton V10 engines however you must add two additional single coils (#22780 x 2) to replace all 10 of the 6.8L coils. Each #22780 coil and #22781 coil pack features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion.

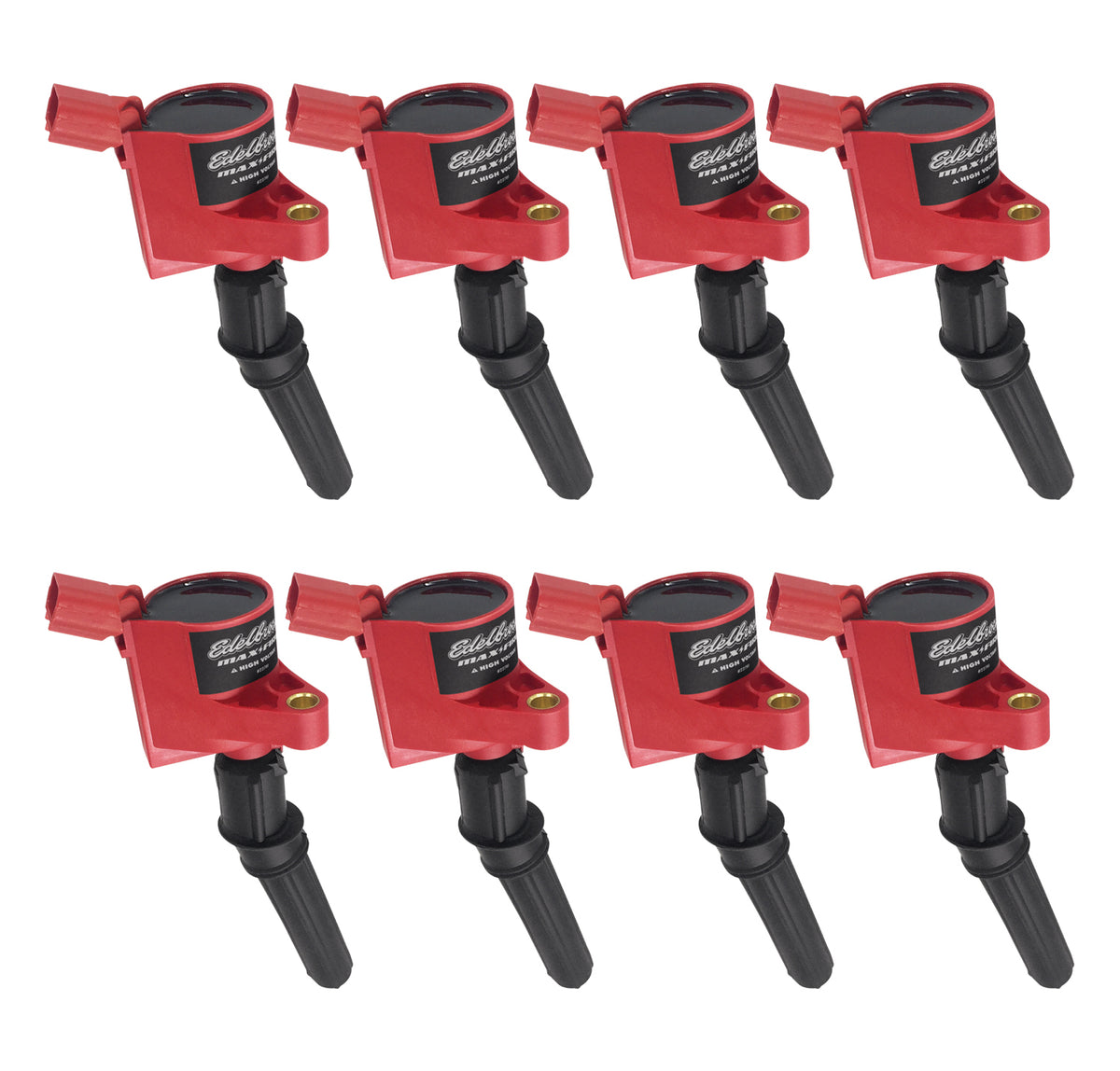

Edelbrock Part #22781 Coil-on-Plug Coil Pack
| Terminal Type | Blade Pin |
| Requires External Resistor | No |
| Primary Resistance | 0.660 82 |
| Quantity | Set of 8 |
| Coil Shape | Round |
| Coil Type | Coil Pack |
| Voltage | Maximum 26000 2H |
| Mount Type | Plug |
| Oil Filled | No |
| Terminal Quantity | 1 |
| Mounting Bracket Included | No |
| Connector Gender | Female |
| Coil Wire Included | No |
| Secondary Resistance | 6.10K 82 |
| Terminal Gender | Female |
| Recommended Use | For Models With 2 Valves Per Engine |
