SKU: SKU: ICO91836E

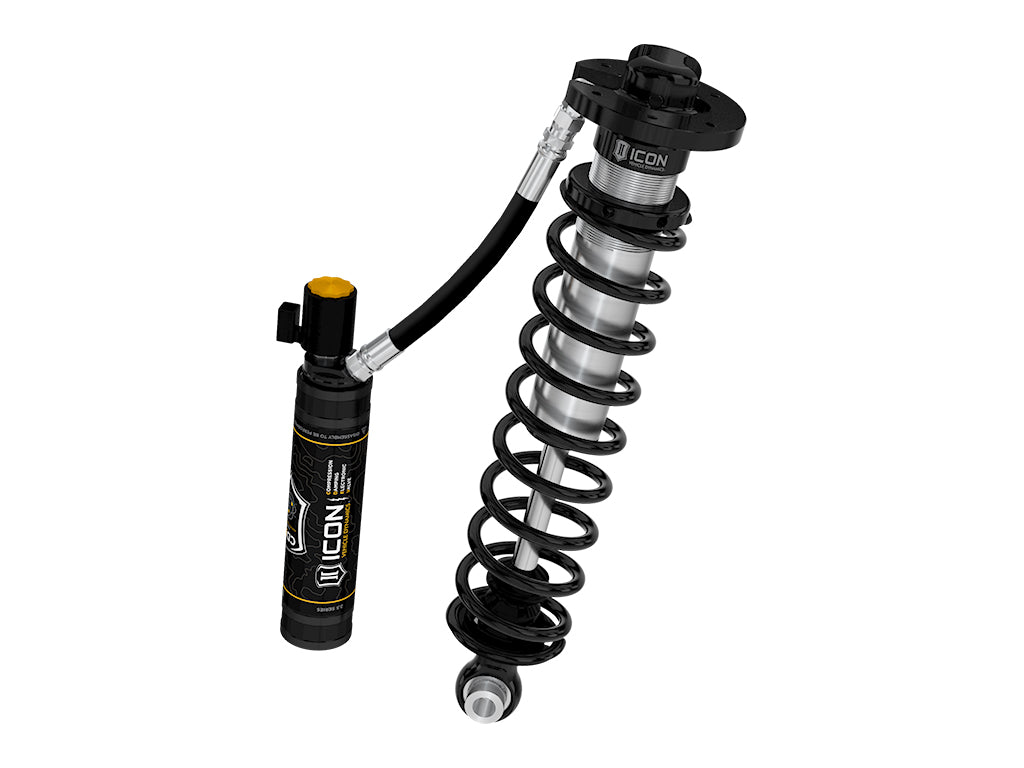

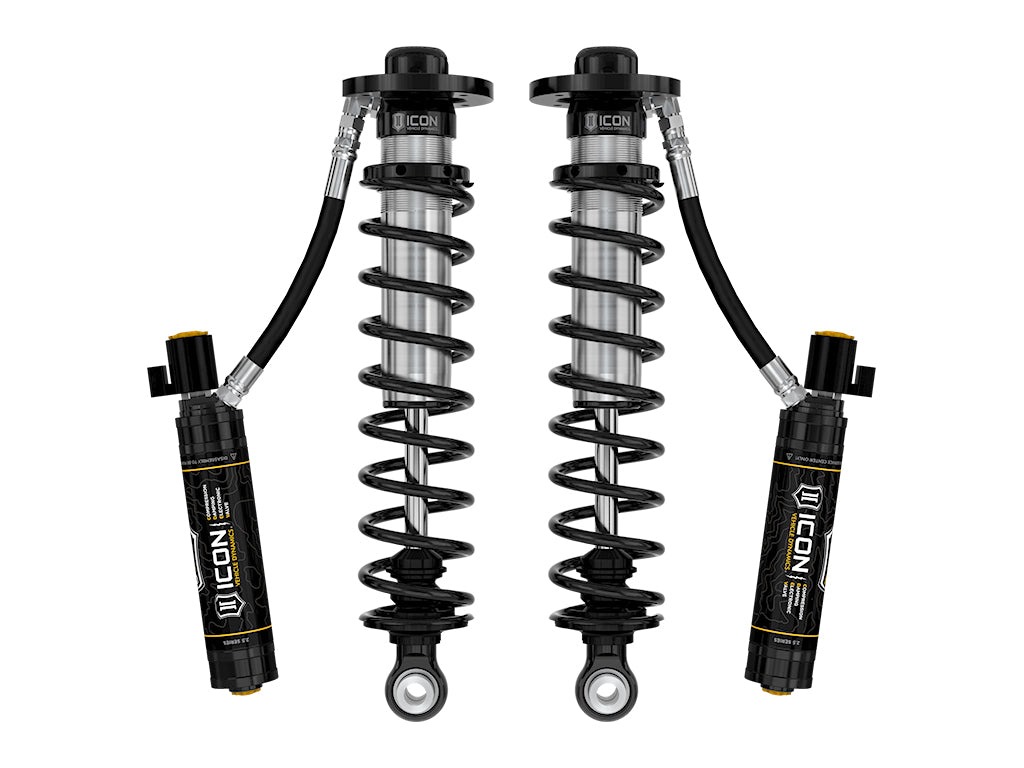

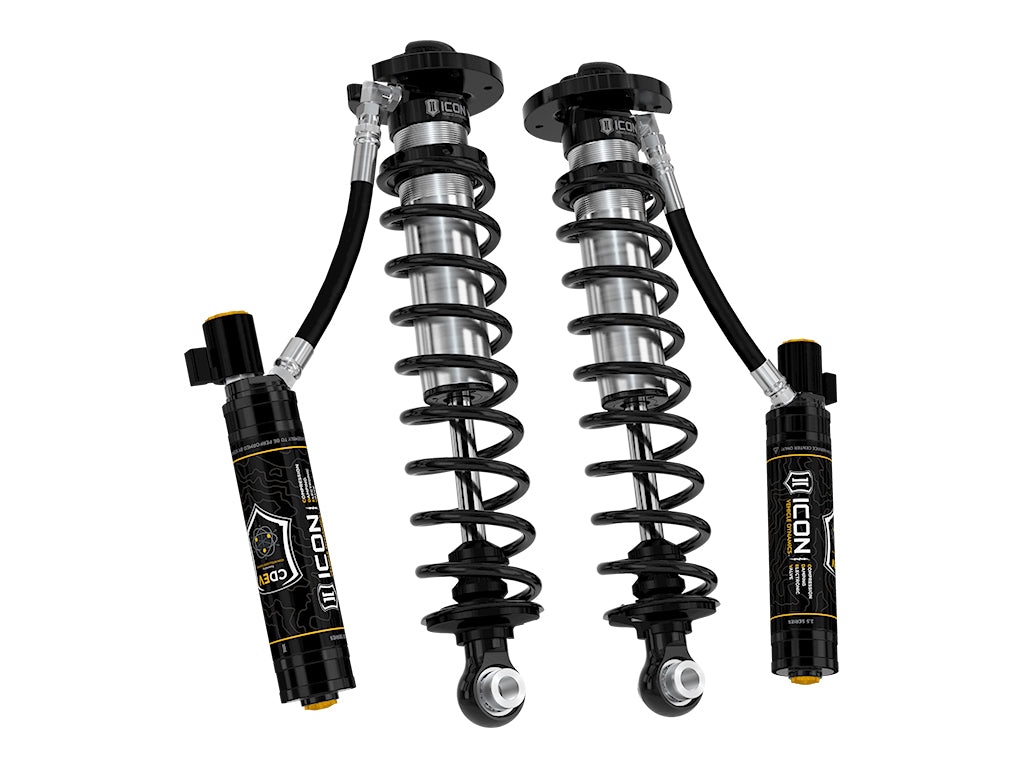

Experience unmatched performance with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV, the ultimate upgrade for your 2022-2023 Ford F-150 Lightning. These coilovers deliver an aggressive stance, lower center of gravity, and unparalleled handling characteristics, thanks to their adjustable rear lowered height range of 0-4" under stock. With ICON's vehicle specific shock length, valving, and the larger 2.5" shock body with increased piston area, you will enjoy maximum wheel travel, exceptional ride quality, and superior suspension performance that surpasses stock components.
Prepare for intense driving conditions with confidence, as the remote reservoirs significantly increase shock oil volume and heat dissipation surface area, resisting overheating and cavitation under aggressive use, preventing damper fade. Additionally, the ICON CDE Valve upgrade is included, providing easy ride tuning capabilities from inside your vehicle. The Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that regulates oil flow into the reservoir, reacting in less than 40ms to make accurate adjustments for varying terrain. The hydraulic circuits of CDEV are meticulously tailored per application, offering the highest resolution and dynamic range specific to your F-150 Lightning.
Take control of your suspension like never before with the power of ICON Intelligent Control and the proprietary ICON mobile app. This innovative system leverages information from the onboard G-force sensor and gyroscope, utilizing cutting-edge algorithms and user-defined settings to predict terrain and actively adjust shock damping settings via CDEV accordingly. When combined with ICON 2.5 Series CDEV front coilovers, your vehicle's control will be balanced front to rear, providing you with the ultimate driving experience for your F-150 Lightning.
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 20x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Tires: 33" x 12.00" (Larger tires may fit but fender trimming and modifications may be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LOWERED HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
TECH NOTE: Also requires installation of IIC kit (Part # 93501) and CDEV front coilovers (Part # 91831E)
TECH NOTE: Lowering rear past 3.5" below stock may reduce ride quality due to limited distance to bump stop engagement
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Damping | Yes |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 14.39 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Damping Adjustment Type | Electronic |
| Damping Type | Oil |
| Extended Length | 22.26 IN |
| Gas Charged | Yes |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Material | Steel |
| Maximum Drop | 2 IN |
| Minimum Drop | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 12.00" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | 20x9" with 6” Backspace / 25mm Offset |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Spring Rate Type | Linear |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
