SKU: SKU: ICO71657

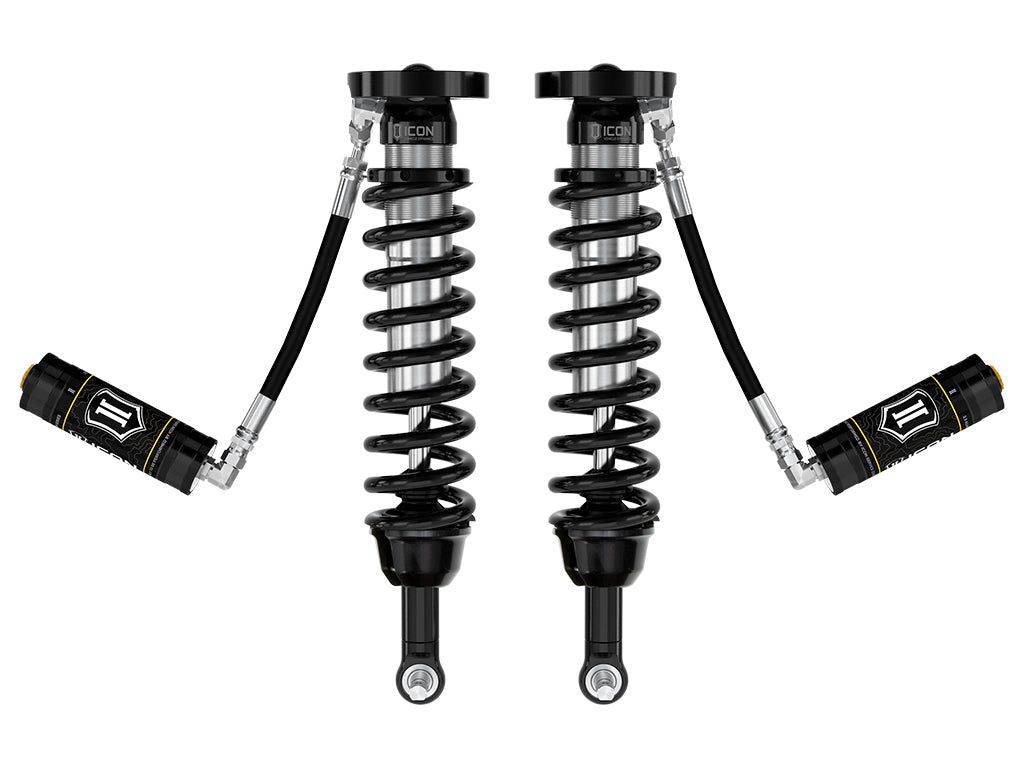

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2021-2023 Chevrolet Tahoe & Suburban/2021-2023 GMC Yukon & Yukon XL SUVs. Their longer length offers an increase in total front wheel travel compared to stock, for a total of 9” front wheel travel (a 20% increase over stock) while still being compatible with the stock front upper control arms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3.25” of front lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON rear 2.5 Series coilover shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GM SUV.
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33"x12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #110: Trimming required for recommended tire size
TECH NOTE: Most SUV submodels equipped with gasoline engines will have front lift height range of 2.5-3.25" over stock
TECH NOTE: Most SUV submodels equipped with diesel engines will have front lift height range of 2-2.75" over stock
TECH NOTE: Will not fit SUV submodels equipped with Magnetic Ride Control and/or Adaptive Air Ride suspesnsion.
| Add-On Part | 71021 - 19-23 GM ELECTRONIC SHOCK SIMULATOR |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 71022 - 21-23 GM RIDE HEIGHT SIMULATOR |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Damping | NO |
| Body Diameter | 2.5 IN |
| Boot Included | No |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.97 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Damping Type | Oil |
| Extended Length | 23.23 IN |
| Gas Charged | Yes |
| Lower Mount Type | BAR PIN |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 3.5 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | (Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Tires | (Silverado) 315/70R17 (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Flat on Bar Pin |
| Spring Rate Type | Linear |
| Travel Length | 5.27 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
