ICON 21-23 Ford F150 Tremor 2.5-3in 2.5 Series VS RR CDEV Coilover Kit - 91824E

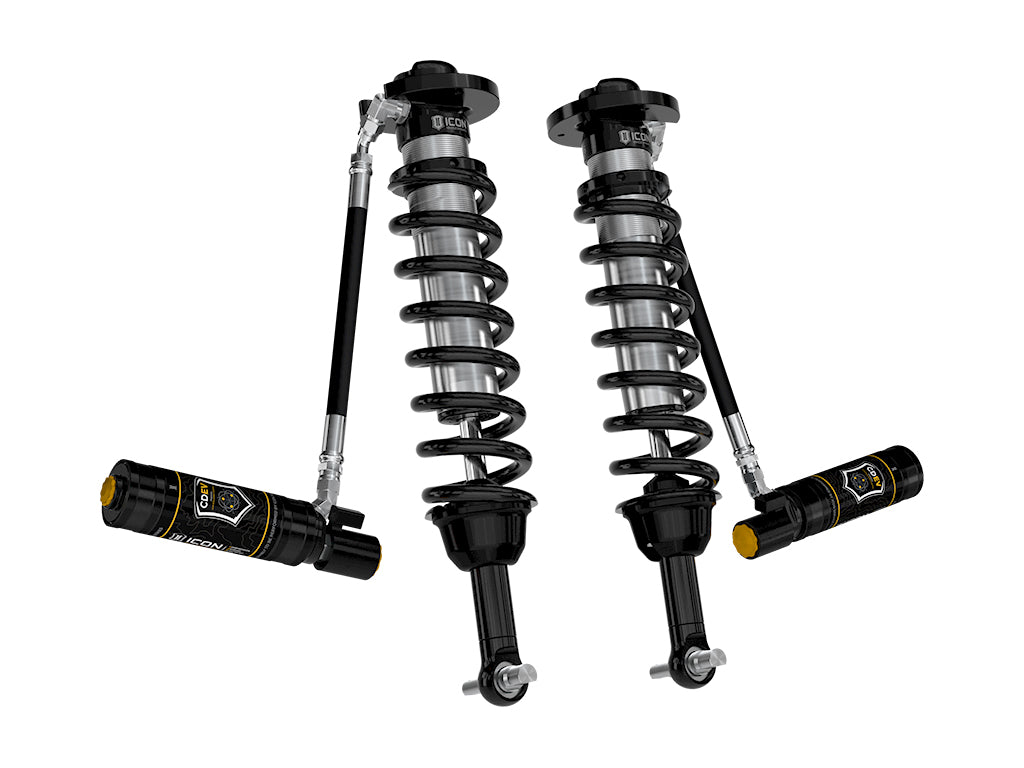

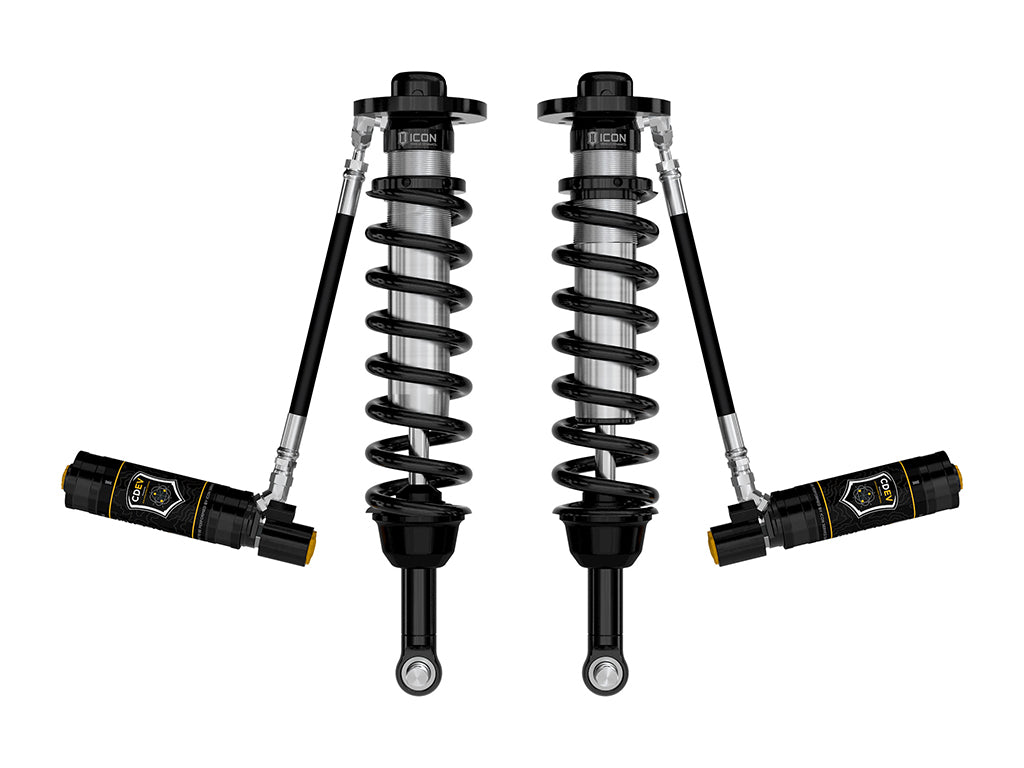

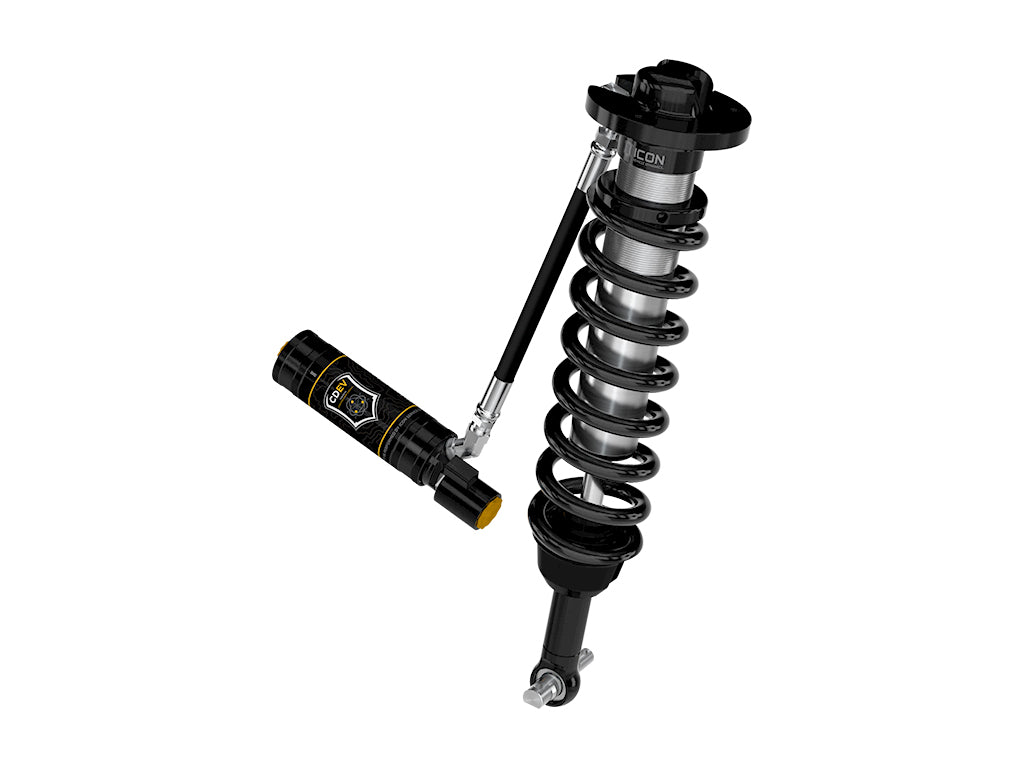

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2025 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON's Front Knuckle Kit. These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON’s Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3” of lift height adjustability on F-150 Tremor or 3.5-4.5” of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Features

• Application specific length for F-150 Tremor or other F-150 sub-models with ICON Front Knuckle Kit
• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control

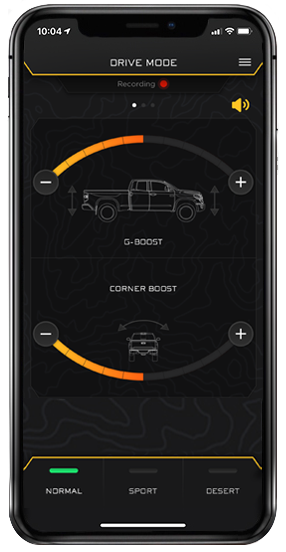

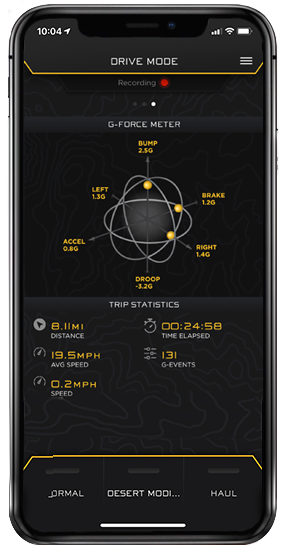

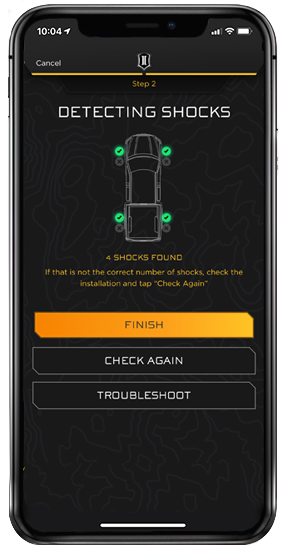

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Adjustable for 2.5-3" of lift height over stock on F-150 Tremor or 3.5-4.5" over stock on other F-150 sub-models with ICON Front Knuckle Kit
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON engineered coil Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 100% Bolt-on - no drilling, cutting, or welding necessary for installation

Factory Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset

Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

APPLICATION NOTE #1: Only fits 4WD models

APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.

APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension

APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

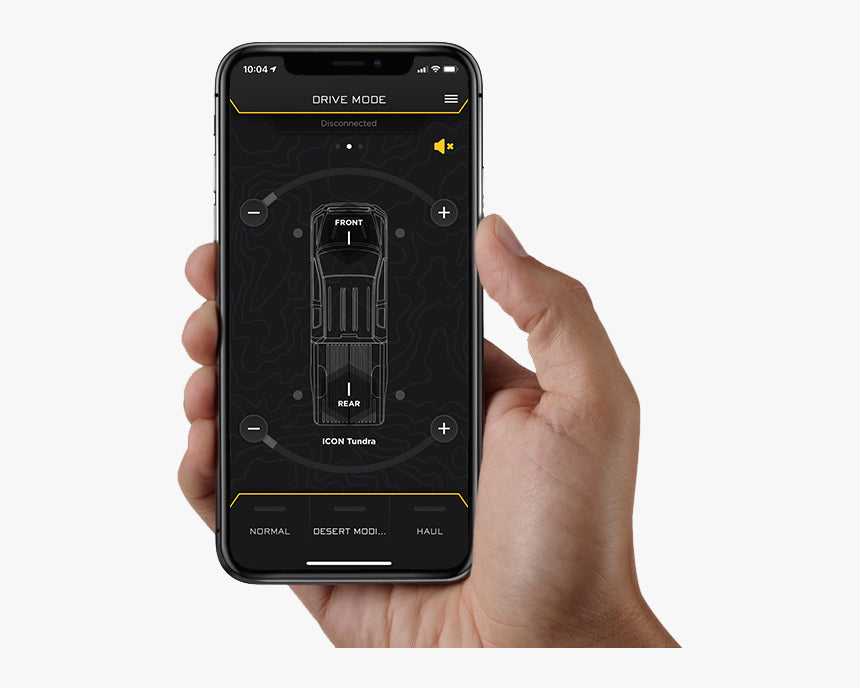

APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app

APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks

APPLICATION NOTE #235: All F-150 submodels except Tremor also require ICON Front Knuckle Kit part number 94000

APPLICATION NOTE #236: Will not fit F-150 Raptor

TECH NOTE: F-150 Tremor will have have lift height range of 2.5-3" over stock

TECH NOTE: Models equipped with gasoline/flex fuel engines will have lift height range of 3.5-4.5" over stock

TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 3.25-4.25" over stock

TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 3-4" over stock

Specifications

Documents

• I91824E_REVA.pdf
