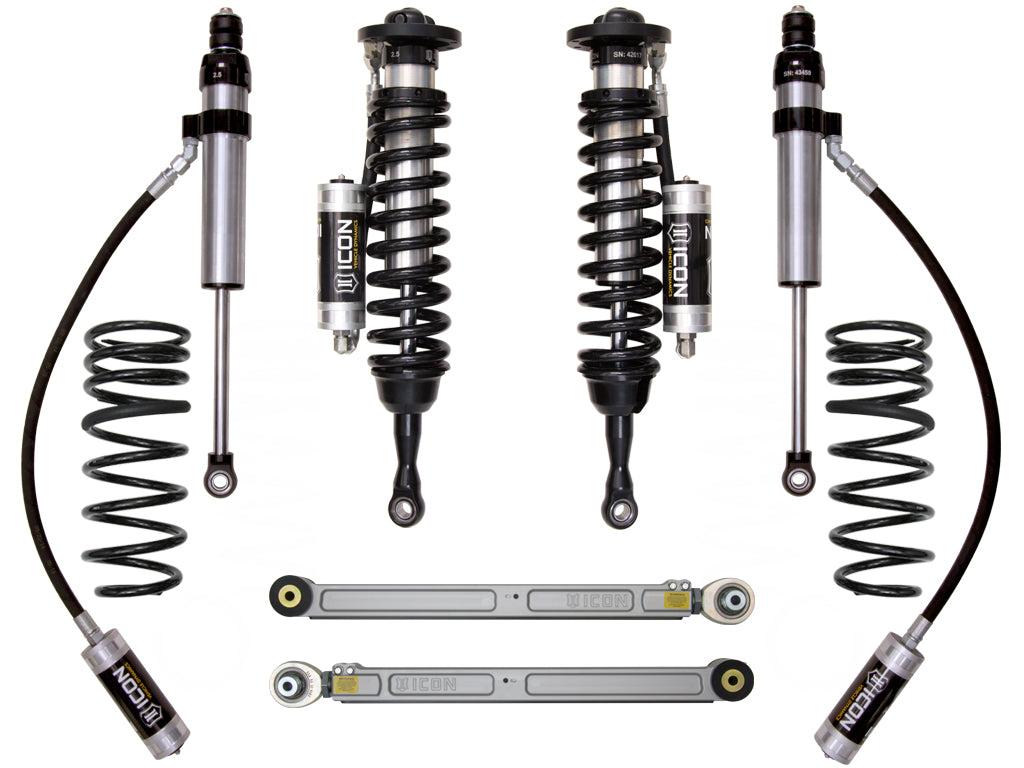

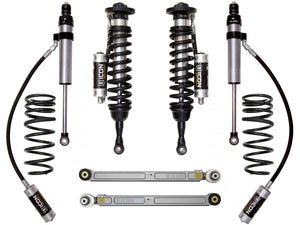

ICON 2008+ Toyota Land Cruiser 200 Series 1.5-3.5in Stage 3 Suspension System - K53073

The 200 Series Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all of the sophistication it is still a very capable vehicle that sees heavy use both on and off-road worldwide. While the 200 Series has exceptional ride characteristics in stock form, it is clear that the suspension is in need of a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and is proud to re-introduce several suspension systems that drastically increase the overall ability of the 2008-UP Land Cruiser.

Features

• Increased wheel travel and ride quality over stock
• Improved vehicle dynamics and decreased body roll
• Height adjustable coilovers provide 1.5-3.5" of lift height
• ICON engineered dual rate rear coil springs

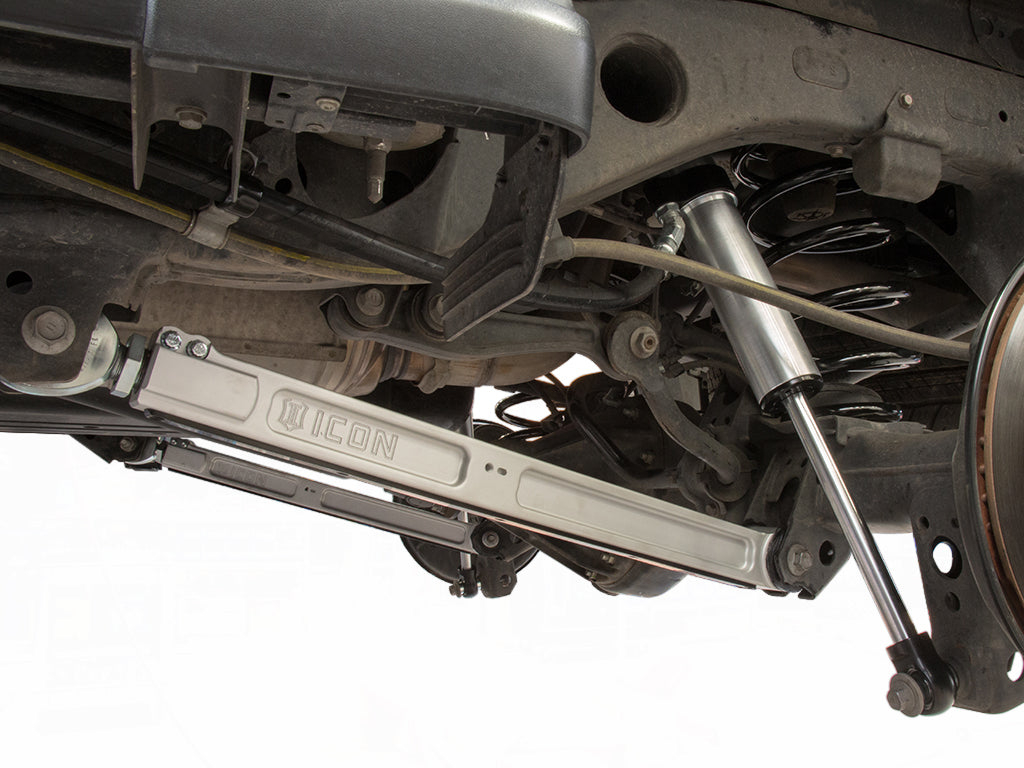

• Billet Aluminum rear lower links offer on-vehicle pinion angle adjustment
• Vehicle-specific tuned front and rear shocks provide superior damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Shocks are fully rebuildable and revalveable
• Bolt-on design means no cutting or welding necessary for install

OEM Wheels & Tires Fitment: Yes

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset

Recommended Aftermarket Tires: 34" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #24: Factory UCA's Will Not Align Properly Past 2.5” Of Lift. Above 2.5” Of Lift An Aftermarket UCA Is Recommended.

APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES

APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE

APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.

Ships in multiple boxes

Specifications

Documents

• I54000_REVD.pdf
• I57825P_REVB.pdf
• I58760_REVB.pdf
