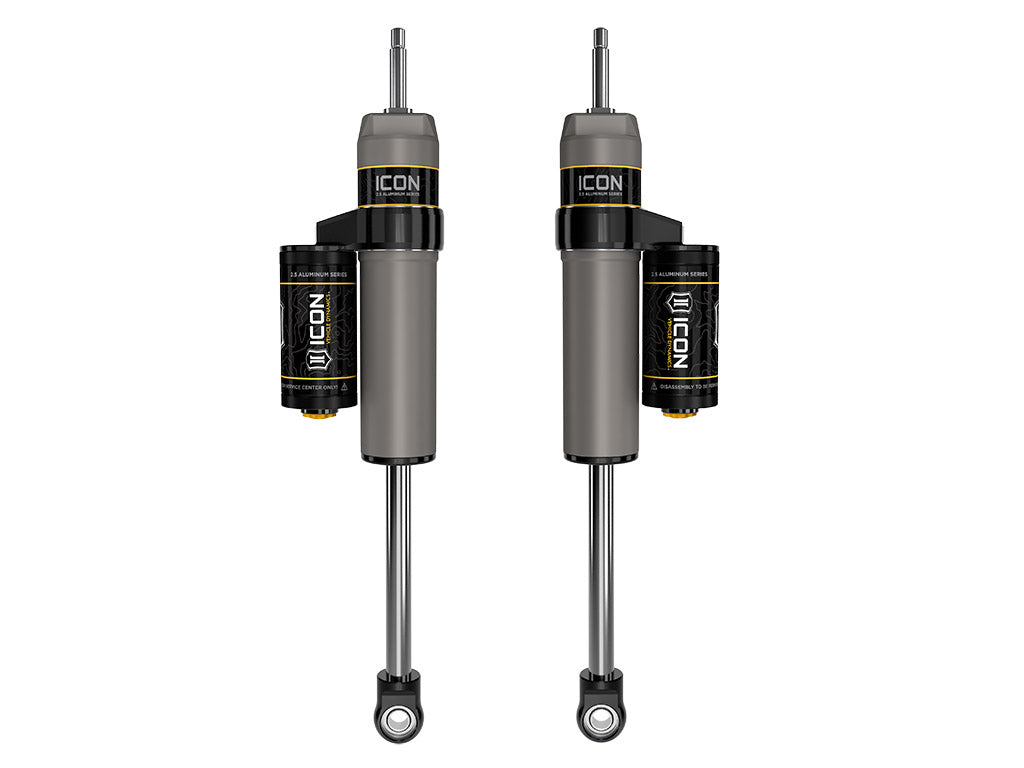

ICON 2005+ Ford F-250/F-350 Super Duty 4WD 2.5in Front 2.5 Series Shocks VS PB - Pair - 67700P

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON's unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV).

Features

• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Nitrogen charged monotube design with piggyback reservoir
• Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
• 6061 aircraft grade aluminum CNC machined components
• One piece, hard anodaized, digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 7/8" diameter induction hardened, chrome plated shock shaft
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardware
• 100% Rebuildable
• 100% Revalveable

OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with fender trimming and modifications required)

APPLICATION NOTE #1: Only fits 4WD models

APPLICATION NOTE #150: Shocks are fully serviceable

TECH NOTE: Compatible with 0-3” of front lift over stock of 2005-2019 F-250/F-350/F-450 4WD

TECH NOTE: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package

TECH NOTE: Compatible with 0-2.75” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package

TECH NOTE: Compatible with 0-3" of front lift over stock of 2023-2025 F-250/F-350 4WD without Tremor package

TECH NOTE: Compatible with 0-2” of front lift over stock of 2023-2025 F-250/F-350 4WD equipped with Tremor package

TECH NOTE: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-450 4WD

TECH NOTE: Compatible with 0-3” of front lift over stock of 2023-2025 F-450 4WD

TECH NOTE: Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions

Specifications

Documents

• I67700P_REVB.pdf

⚠️ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
