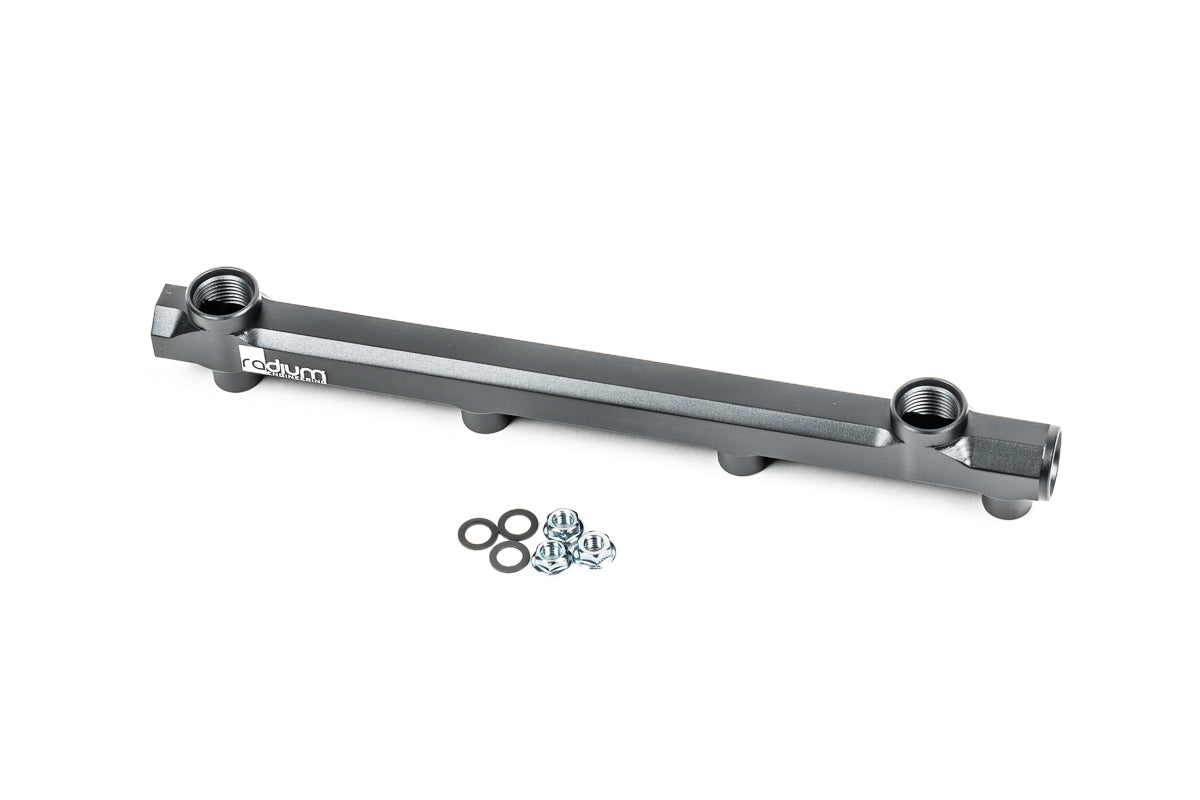

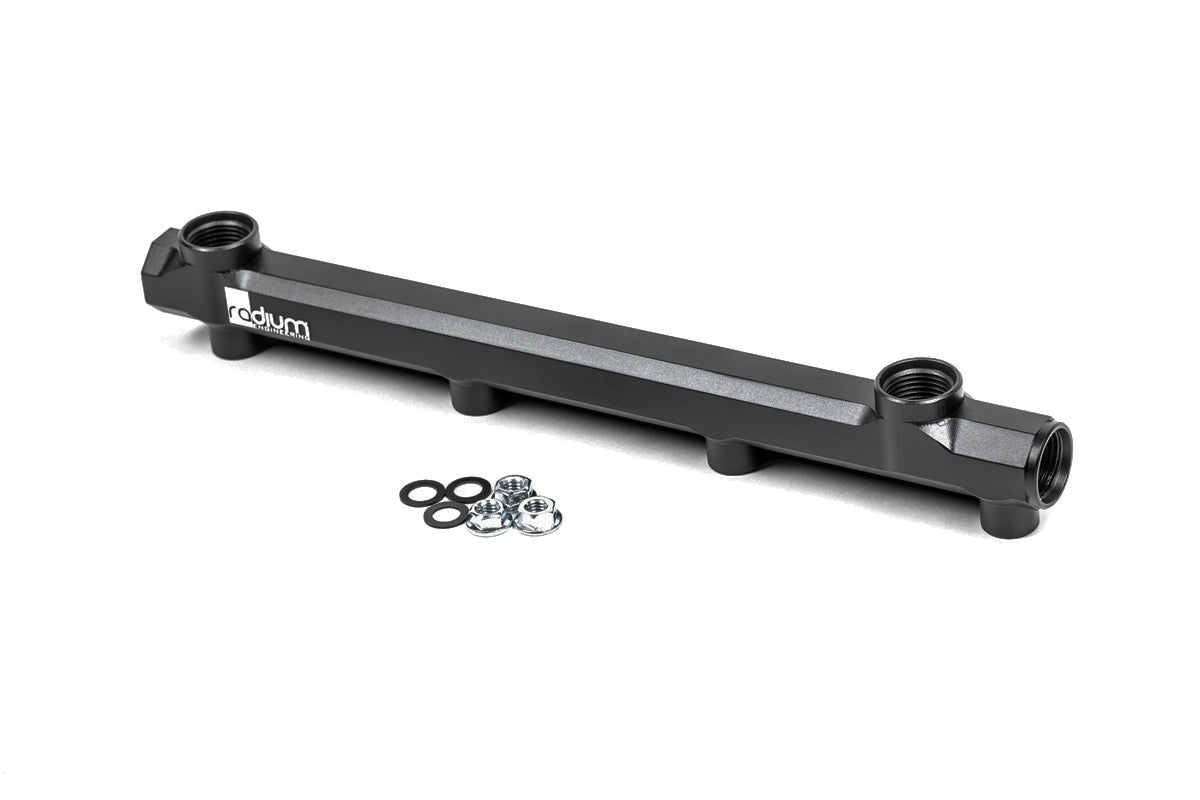

Radium Fuel Rail Honda D-Series - 20-1070

Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from 6061 aluminum, anodized, and laser etched for a high quality surface finish. Like the OEM fuel rails, the injector bores are 11mm ID so factory injectors, or any equivalent aftermarket injector, can be used.

This fuel rail has 4 ports that are tapped with 7/8”-14 threads to accept 8AN ORB male fittings.

• 8AN ORB Adapter Fittings can be found HERE.
• 8AN ORB Direct Mount Regulators can be found HERE.
• 8AN ORB Fuel Pulse Dampers can be found HERE.
• Fuel Pressure Gauge Adapters can be found HERE.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

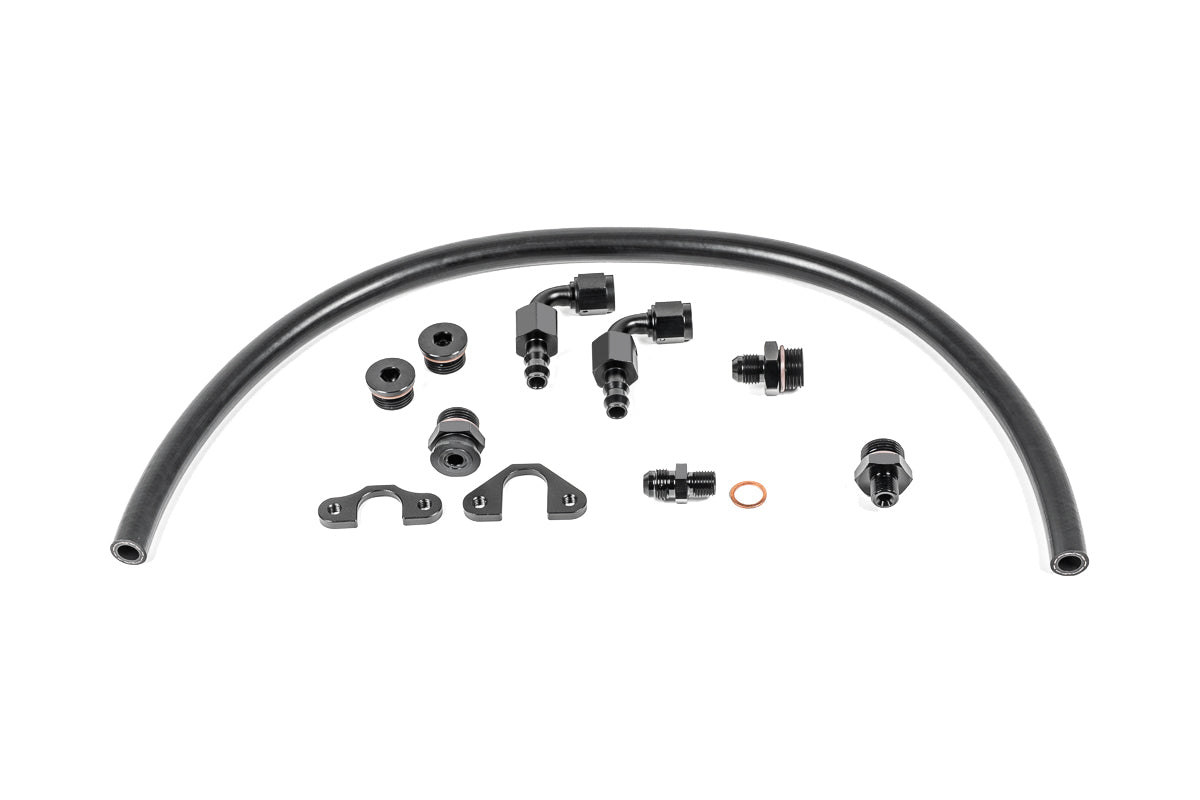

The plumbing kit includes the items shown. It allows an easy connection to the factory feed with a 6AN hose. It is intended to be used with the factory fuel pressure regulator (FPR), however, an aftermarket FPR can be used instead. The kit Includes 2 different FPR adapters compatible with all OEM Honda FPRs. Plugs are provided as well for any unused fuel rail ports.
