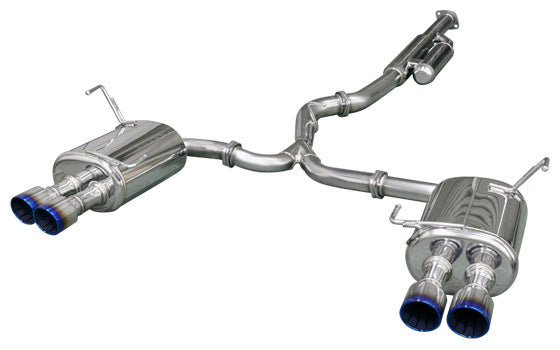

HKS SUPER TURBO MUFFLER GVB EJ20 - 31029-AF014

Super Turbo Muffler

Vehicle: IMPREZA WRX STI

Application

• Model/Chassis: GVB
• Engine: EJ20(TURBO)
• Model Year: 10/07 - 14/08
• Code No.: 31029-AF014

Specifications

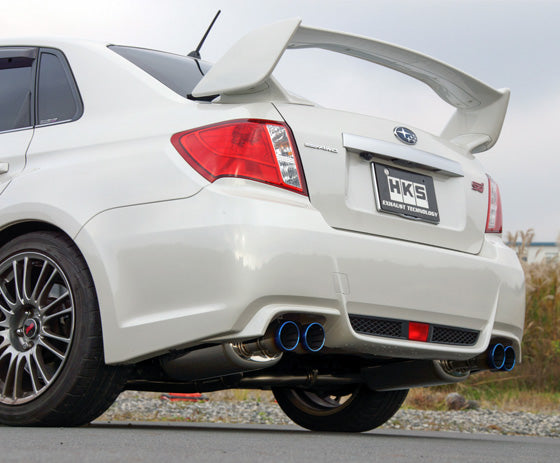

IMPREZA WRX STI CBA-GVB A powerful rear view with 4 titanium tales A beautiful blue gradient Titanium tales fit perfectly bumper cut-outs,φ75 straight piping without excessive joints allows to achieve overwhelminglow exhaust pressure and a quiet and comfortable ride. Cert. No. JQR40164204 Vehicle IMPREZA WRX STI Model GVB Engine EJ20(TURBO) Model Year 10/07 - 14/08 Shape of muffler Ti-1 (Titan) (Super Turbo Muffler) Main material S304 Diameter of tip 90 x 2 L&R Diameter of center pipe 75-60-54 (*1) Close noise level Stock 78 HKS 86 About road clearance(*2) Clearance 125mm Portion of the kit Mid pipe Remarks Product Weight Remarks Compatible with "tS", "tS Type RA" and "SPEC C". Not compatible with S206. About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]
