HKS SUPER TURBO MUFFLER GDB(A-D) - 31029-AF002

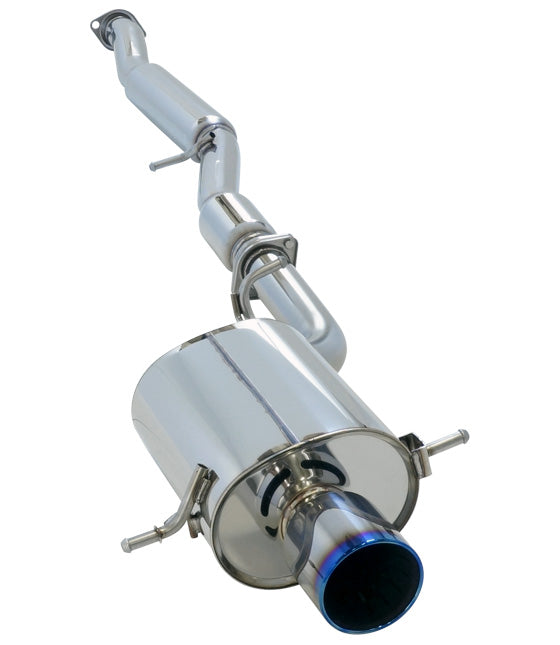

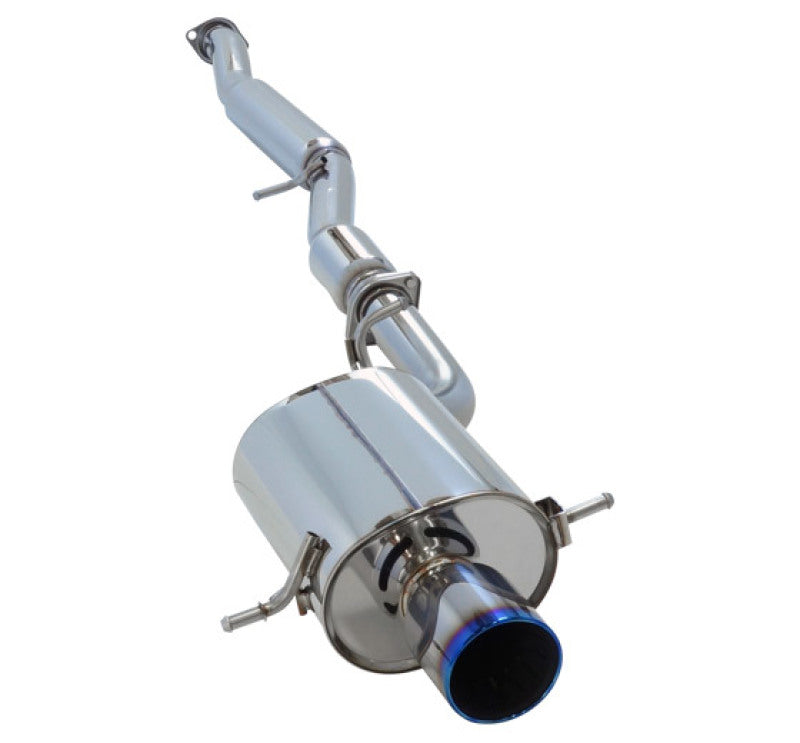

Super Turbo Muffler

Vehicle: IMPREZA WRX STI

Application

• Model/Chassis: GDB
• Engine: EJ20(TURBO)
• Model Year: 00/10 - 04/05
• Code No.: 31029-AF002

Specifications

IMPREZA WRX STI GH-GDB Cert. No. 03S15291 Vehicle IMPREZA WRX STI Model GDB Engine EJ20(TURBO) Model Year 00/10 - 04/05 Shape of muffler SSR (Super Turbo Muffler) Main material S304 Diameter of tip 124 Diameter of center pipe 75 (*1) Close noise level Stock 82 HKS 90 About road clearance(*2) Clearance 130mm Portion of the kit Center resonator Remarks Product Weight Remarks For applied model A-D. About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]

Source: HKS Japan · Detail page
