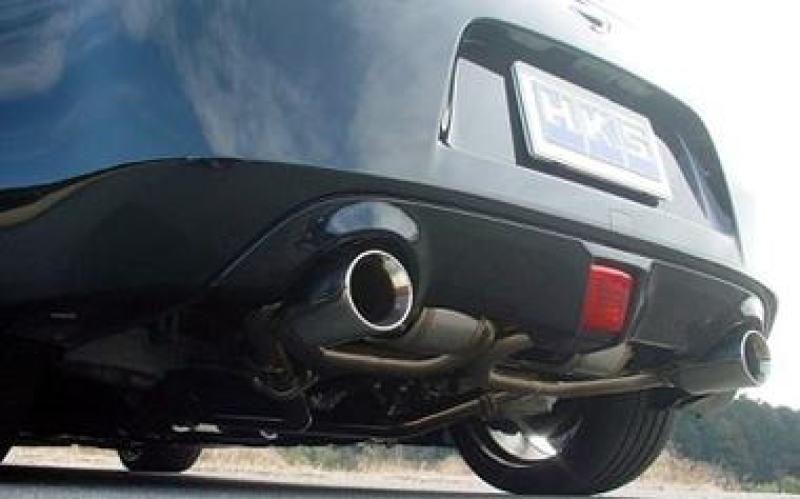

HKS SUPER SOUND MASTER Z34(6MT) - 32023-AN005

Super Sound Master

Vehicle: FAIRLADY Z (Z)

Application

• Model/Chassis: Z34
• Engine: VQ37VHR
• Model Year: 08/12 - 21/09
• Code No.: 32023-AN005

Specifications

FAIRLADY Z (Z) CBA-, 4BA-Z34 Cert. No. JQR50123043 Vehicle FAIRLADY Z (Z) Model Z34 Engine VQ37VHR Model Year 08/12 - 21/09 Shape of muffler RS (Super Sound Master) Main material S304 Diameter of tip 100 L&R Diameter of center pipe 50 x 2 - 65-50 x 2 (*1) Close noise level Stock 80 HKS 93 About road clearance(*2) Clearance 123mm Portion of the kit Center pipe(catalyzer flange) Remarks Product Weight Remarks Only for 6MT. Modification of a stock heat insulator is required. Cannot be used Version NISMO. Do not use with 33005-AN004. About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]

Source: HKS Japan · Detail page
