HKS SUPER FIRE RACING COIL PRO BNR32 - 43005-AN001

HKS SUPER FIRE RACING COIL PRO BNR32

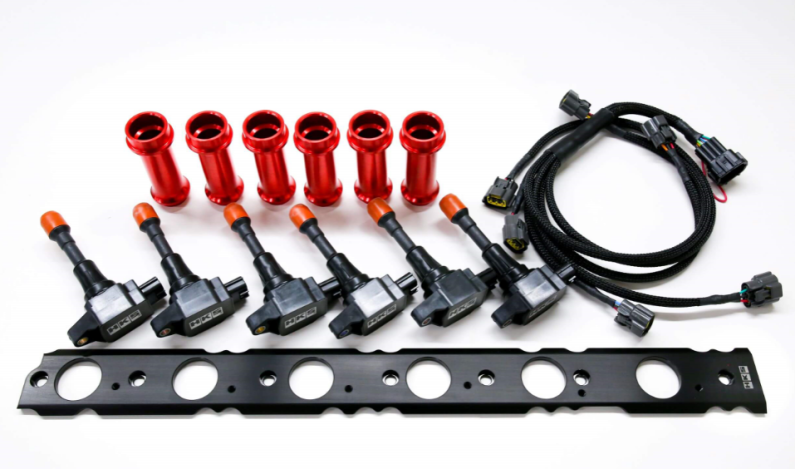

Ignition coils featured in HKS RB26 Complete Engine build are now available in a separate kit!
Compared to stock coils, secondary voltage is increased up to 1.5 times providing a strong and reliable spark and preventing misfire at high RPM.

*Red colored bolts depicted are not included

• Anodized bracket and coil spacers for improved durability and beautiful look
• Coil spacer with two O-rings on both ends for improved dust and water resistance on the engine side and noise reduction no the bracket side
• Specially designed vehicle specific rubber spark plug cap to improve resistance against flashover
• Easy installation thanks to specially design bracket, spacer, harness and rubber spark plug cap
• Long life built-in power transistor with reduce risk of aging and failure (BNR32, BCNR33)

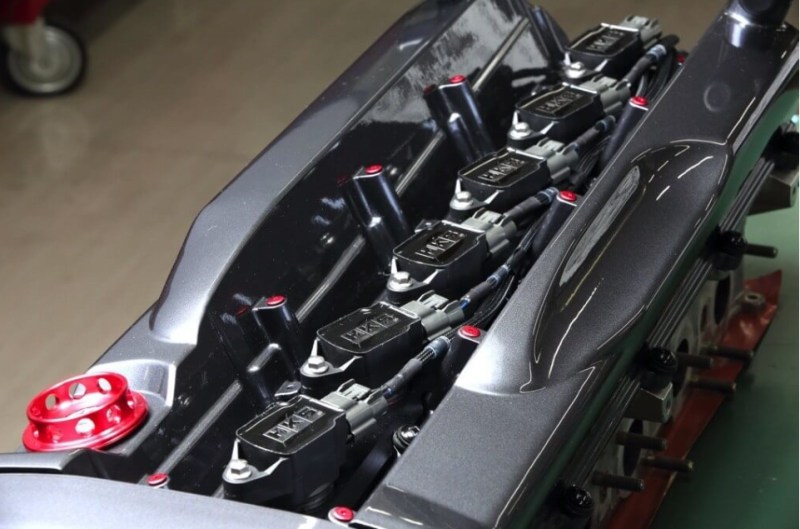

HKS made rubber spark plug cap fits nicely over the spark plug covering a whole length of the RB26 spark plug.

■NOTE

• Use only with ECU that allows dwell time adjustment.
• To install the stock spark plug cover, it is required to cut a back part of it. (Refer to the photos below.)
• It would be great to use the HKS transistor cover (Code No. 22998-AN001 to AN002) after removing the stock transistor for installing the product.
  https://www.hks-power.co.jp/en/product/engine/cover_transistor/index.html
• Recommended to use with a spark plug able to utilize full potential of the coil, such as HKS SUPER FIRE RACING Series
