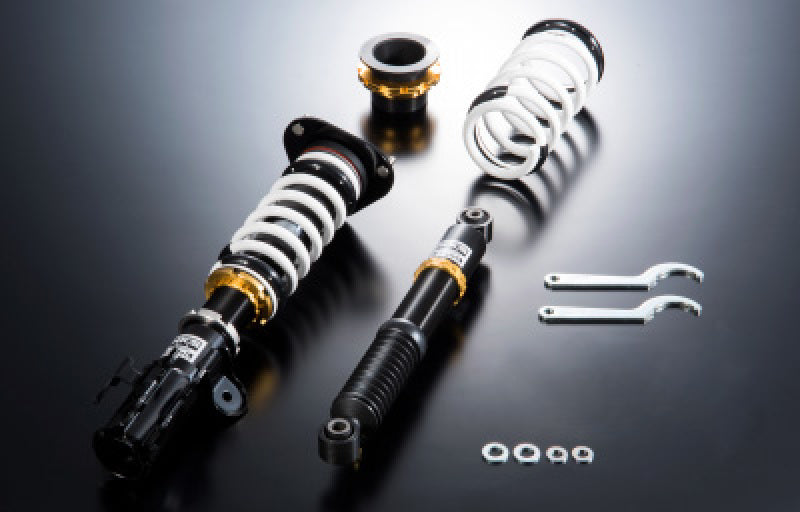

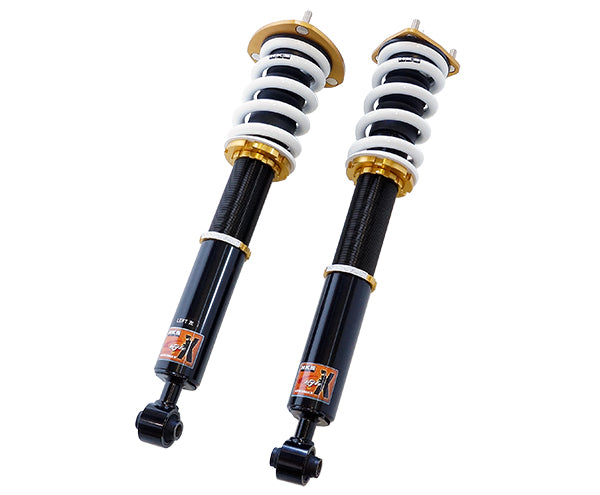

SKU: SKU: HKS80120-AT203
S-Style X
Vehicle: height." "Super Low Stance
Application
Specifications

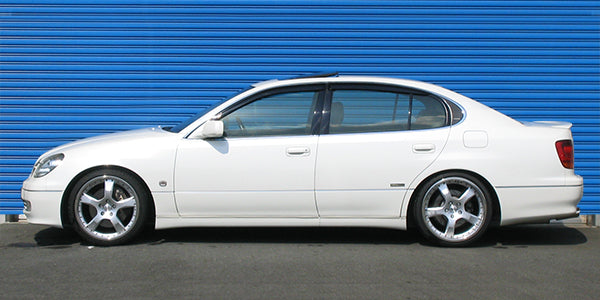

ARISTO JZS160 "Not just for lowering the vehicle height." "Super Low Stance Model" for reliable driving performance. The model in the photo is JZS161. Application Engine 2JZ-GE Model Year 97/08 - 04/12 Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket ○ ○ Upper mount Spherical bearing Spherical bearing Inverted/Normal type Normal Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Possible Possible Damping force adjustment with wire - ○ Helper spring (Spring rate N/mm) - - Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 657 615 693 ～ 565 693 ～ 615 Against stock -37 -79 -1 ～ -129 -1 ～ -79 REAR Ride height *1 635 593 680 ～ 539 667 ～ 593 Against stock -45 -87 0 ～ -141 -13 ～ -87 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/
Source: HKS Japan · Detail page
