SKU: SKU: HKS80300-AF009
S (-2025)
Application
Specifications

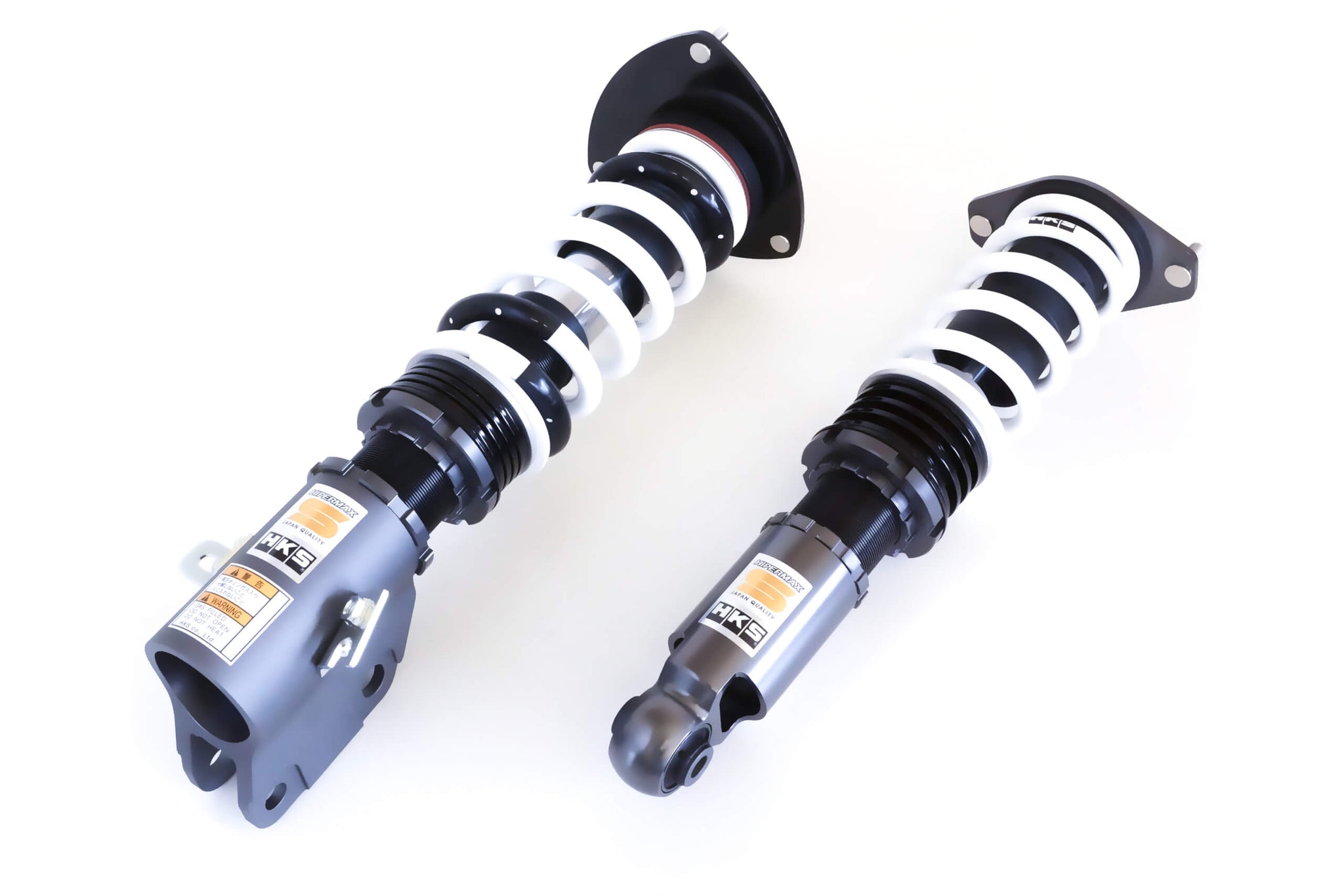

WRX S4 VAG Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability . An uncompromising balance which delivers on all the demands of street driving. The model in the photo is VAG. Application Engine FA20(TURBO) Model Year 14/08 - 21/03 Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket ○ ○ Upper mount Rubber Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Possible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) ○ ( 4.7 ) ○ ( 4.7 ) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 650 655 675 ～ 628 675 ～ 628 Against stock -25 -20 0 ～ -47 0 ～ -47 REAR Ride height *1 658 ← 675 ～ 612 675 ～ 612 Against stock -17 ← 0 ～ -63 0 ～ -63 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the fact
