SKU: SKU: HKS80300-AF010CP
S (-2025)
Application
Specifications

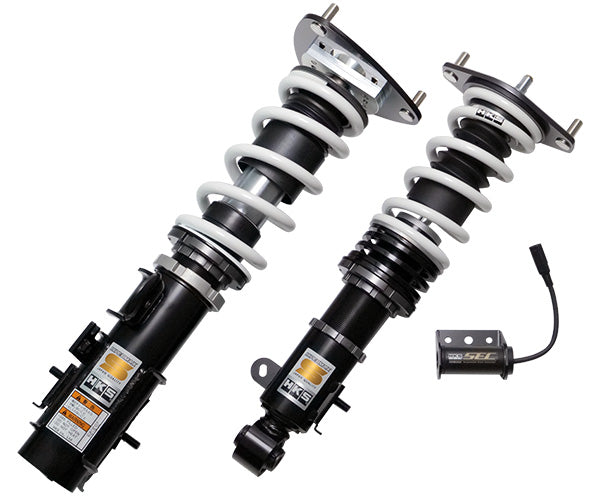

WRX S4 VBH Front Pillow has been added to the S-series upper-mount for WRX S4(VBH)!! The popular WRX S4 HIPERMAX S now features pillow upper mounts on the front, allowing for camber angle adjustment. With the stock electronically controlled suspension, the ride feels fluffy and unstable in comfort mode, while in sport mode, small bumps in the road are very noticeable. Our high-performance shock absorbers with large diameter single-cylinder pistons provide a high-quality ride even with the car lowered. The suspension has been set to move smoothly, absorbing small bumps in the road while generating a firm damping force for wavy roads and cornering turns, improving road compliance. By installing our error canceller included in the set, you can avoid the error that appears when you remove the stock electronically controlled suspension. Application Engine FA24(TURBO) Model Year 21/11 - Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Impossible Impossible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) - 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 658 ← 687 ～ 649
