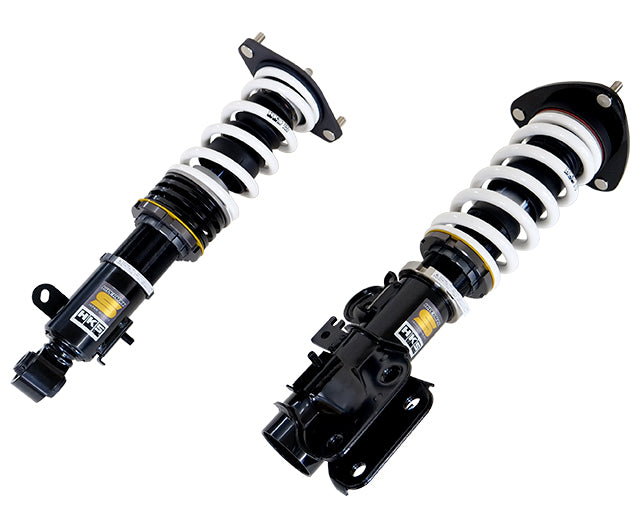

HKS - Hipermax S Full Canceller Kit for 2022+ Subaru WRX (VBH) - 80330-AF010C

Application

• Engine: FA24(TURBO)
• Code No.: 80330-AF010C

Specifications

WRX S4 VBH A New Dimension of Driving Comfort includes suspension error canceller Application Engine FA24(TURBO) Model Year 21/11 - Remarks Only for STI Sport R and STI Sport R EX. Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Rubber Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Impossible Impossible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) - 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 657 ← 687 ～ 635 687 ～ 638 Against stock -30 ← 0 ～ -52 0 ～ -49 REAR Ride height *1 658 ← 693 ～ 629 693 ～ 629 Against stock -35 ← 0 ～ -64 0 ～ -64 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual d

Source: HKS Japan · Detail page
