SKU: SKU: HKS80300-BF001P
S (-2025)
Application
Specifications
WRX S4 VBH Front Pillow has been added to the S-series upper-mount for WRX S4(VBH)!!
Features

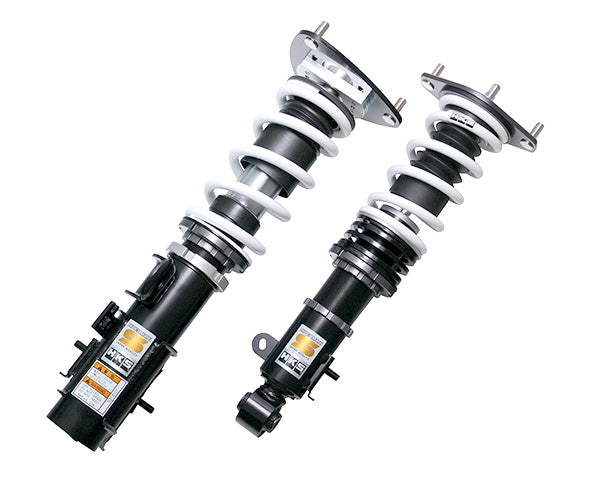

The popular WRX S4 HIPERMAX S now features pillow upper mounts on the front, allowing for camber angle adjustment. Our high-performance shock absorbers with large diameter single-cylinder pistons provide a high-quality ride even with the car lowered. The damper has been set to move smoothly, absorbing small bumps in the road while generating a firm damping force for wavy roads and cornering turns, improving road compliance. Application Engine FA24(TURBO) Model Year 21/11 - Remarks For 4WD only Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Impossible Impossible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) - 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 658 ← 687 ～ 649 687 ～ 649 Against stock -29 ← 0 ～ -38 0 ～ -38 REAR Ride height *1 661 ← 692 ～ 617 692 ～ 617 Against stock -32 ← -1 ～ -76 -1 ～ -76 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adju
Source: HKS Japan · Detail page
